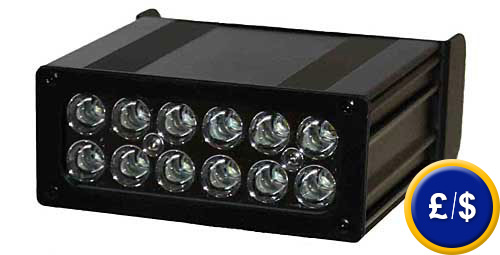

Inspection Stroboscope PCE-1XS
Very bright stroboscope for fixed installation / no need to change lamps / LED with durability of ca. 100,000 hours / phase retardation-mode permits displacements of 0 … 359° / trigger inlet for external triggering / for power supply 230V

The inspection stroboscope is made for fixed installation and is suitable for almost any usage due to its point-shaped illumination and adjustable lengths of lightings. The inspection stroboscope offers an extremely steady illumination, a very high durability of the lamps and high energy efficiency. The inspection stroboscope's soft light is especially suitable for the inspection of highly reflective labels and packaging, foils and metal substrates, or for fast-working machines. The inspection stroboscope, controlled by a microprocessor, is link-operated. It's ideal to control the speed of rotation and meshing of cogs, motors, centrifuges and for the inspection of many product lines. The devices and enclosures needn't be stopped. This hand stroboscope can be operated manually or be fitted on a tripod. It also has a trigger inlet available. Just use the hand stroboscope in a factory and see things that are otherwise optically obscured. If you're looking for a similar model with a rechargeable battery or that is link-operated, look on Inspection-stroboscope. If you have further questions about the inspection stroboscope PCE-1XS, please look at the following technical specifications or contact us under: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703 and our technical staff will advise you regarding our products. Our engineers and technicians will be happy to help you with the inspection stroboscope and, of course, with the other products in the field of regulation and control, and scales and balances.

User manual for the Inspection Stroboscope PCE-1XS  EC certificate for the Inspection Stroboscope PCE-1XS  Video for the Inspection Stroboscope PCE-1XS  Inspection Stroboscope PCE-1XS: Software.  Technical specifications for the Inspection Stroboscope PCE-1XS  Information for the Inspection Stroboscope PCE-1XS

Inspection Stroboscope PCE-1XS

- Durable LEDs
- No need to change lamps
- Low glare on reflective surfaces
-
Steady illumination

- Easy installation
- Slander design
- Link-operated
-
Small energy use

Technical specifications

Range

300 ... 50000 L/M (light per minute)

Accuracy

± 100 ns

Light duration

10 ... 250 µs

Phase retardation

0 ... 359 °

Trigger inlet with phase retardation

12.000 / minute (200 Hertz)

Trigger inlet without phase retardation

50.000 / minute (833 Hertz)

Power supply

230 V

Size

112 x 107 x 46 mm

Weight

320 g

Light cone of the Inspection Stroboscope

The Inspection Stroboscope's trigger inlet

Due to the trigger inlet, the hand stroboscope can be triggered e.g. onto an external machine’s high speed. During triggering the knob for the adjustment of frequency at the hand stroboscope is deactivated, while the trigger plug is plugged in.

Delivery content

1 x inspection stroboscope PCE-1XS, 1 x power supply 230V, 1 x operating instruction

Additional
ISO-calibration certificate
For companies that want to admit the hand stroboscope in their inspection devices or for a yearly calibration. The ISO certification contains a laboratory calibration including a test slip with all measured data. Your company's characteristics are documented as those of the purchaser.

Iso calibration for Inspection Stroboscope PCE-1XS

Further information about the Inspection Stroboscope PCE-1XS. return to homepage.

In the following, you can see similar products in the field of "Stroboscope":

- Stroboscope PCE-OM 15
  (with mains supply, external trigger inlet and RS-232-output)

Stroboscope PCE-OM 15

- Stroboscope PCE-LES 100
  (Stroboscope with high luminosity, ... 14.000 U/ min, NiMH-battery)

Stroboscope PCE-LES 100

- Stroboscope PCE-LES 200
  (Compact, light LED-stroboscope / max. 300.000 light per minute)

Stroboscope PCE-LES 200

- Stroboscope LOL 5-120
  (Mains operated built-in units with display and external trigger-inlet)

Stroboscope LOL 5-120
