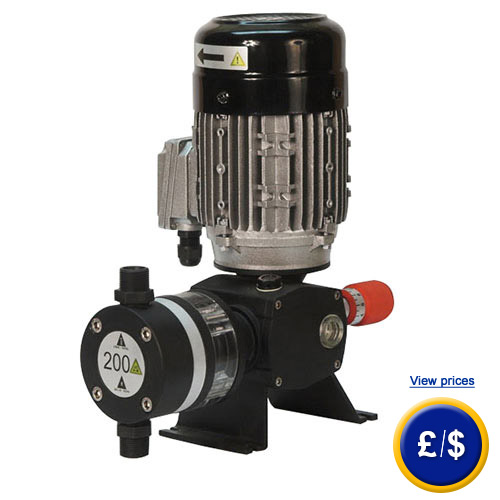

Piston Pump of Dostec Series
 Chemical resistant piston pump / 1- and 3- phase engines / pump capacity up to 1000l/h / Piston made of PE-UHMW or ceramic / automatic suctioning / up to max. 15 bar

Due to many different engines, which may drive the piston pump of the dostec series, it is designed for several industrial and laboratory processes. The engines of the piston pump of the dostec series can be purchased in the 1 - and 3 - phase alternating voltage edition as well as the edition running on 12 V ... 24 V DC voltage. The piston pump of the dostec series facilitates as a reliable dosage apparatus. Since the piston pump is protected with PE-UHMW or ceramic, even chemically aggressive substances can be pumped, without the piston pump getting any harm by these substances. The piston pump can be controlled via a rotary switch that is installed at the back of the device. The maximum pump capacity of the piston pump can be up to 1000 l/h depending on the model. If there are any questions about this piston pump of the dostec series, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all dosing pumps and all products in the field of measuring instruments, regulation and control and scales.

- pump head with piston
- piston made of PE-UHMW or ceramic
- Voltage Supply 110 V / 230 V
- also as 12 V DC edition purchasable

- for chemical industry and laboratories
- automatic suctioning
- up to 1000 l/h
- up to a maximum of 15 bar

Technical Specifications

Delivery rate

2.7 ... 1000 l/h

Operating pressure

4 ... 15 bar

Diaphragm

PE-UHMW or ceramic

Purchasable models

Code

Pump Capacity [l/h]

Pressure [bar]

71-LP44-P110--X

1000

5.5

71-LP44-P95--X

750

7.5

71-LP44-P77--X

500

11

71-LP43-P77--X

333.3

11

60-AP54-P77--M

600

4

60-AP44-P77--M

500

4.5

60-AP54-P61--M

360

7

60-AP44-P61--M

300

7

60-AP54-P49--M

240

11

60-AP44-P49--M

200

11

60-AP52-P61--M

180

7

60-AP53-P49--M

144

11

60-AP54-P34--M

120

15

60-AP44-P34--M

100

15

60-AP53-P34--M

72

15

60-AP44-P24--M

50

15

60-AP53-P24--L

36

15

60-AP34-P24--L

25

15

60-AP22-P34--L

15

15

60-AP14-P24--L

9

15

60-AP13-P24--L

5.4

15

60-AP11-P24--L

2.7

15

Explanation at an example for piston pump of dostec series

60

-

A

P

4

4

-

P49

P

P

M

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(1) Model

60

Dostec 40

71

Dostec 50

(2) Engine

A

3-pase 230 / 400 V, 50 / 60 Hz

B

1-phase 230 V, 50 Hz

C

1-phase 110 V, 60 Hz

D

12 V DC, 130 W

E

12 V DC, 300 W

F

24 V DC, 130 W

G

24 V DC, 300 W

L

3-phase 230 / 400 V, 50 / 60 Hz, 1 PS

M

1-phase 230 / 400 V, 50 / 60 Hz, 1 PS

(3) Pump Head

P

Piston

D

Diaphragm

(4) Cycles

1

22 cycles /min

2

36 cycles /min

3

60 cycles /min

4

120 cycles /min

5

144 cycles /min

(5) Pass

1

4.5 mm

2

7.5 mm

3

9 mm

4

15 mm

(6) Dimensions [mm]

A

B

C

D

E

P24

P34
P49

320

154

195

370

150

P61

P77

320

175

205

370

150

P95
P110

415

230

204

440

241

(7) Material of cylinder

P

PP (piston made of UHMW-PE)

C

PP (piston made of ceramic)

I

A316 ( piston made of ceramic)

F

PVDF (piston made of ceramic)

T

PTFE (piston made of ceramic)

(8) Gasket

P

PP

B

PP

I

A316

F

PVDF

T

PTFE

(9) Connections

M

3/4"

L

6x12

X

1"1/4

Delivery Content (same for all models)

1 x Piston Pump Dostec Series, 1 x instruction manual
