Steel
Installation Scale PCE-SD ... F SST series

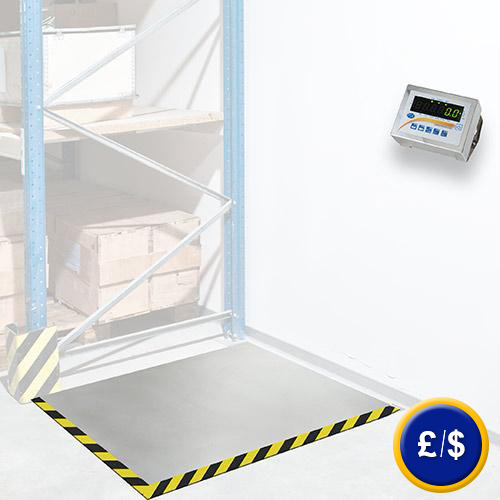

Calibrated steel installation scale
for weight measurement up
to 6,000 kg /
resolution above 0.5 kg / IP68 - IP65 / unit counter function/ summation function /
RS232 interface /
removable weighing platform
|
|
This
steel installation scale can be mounted into the ground resulting in a plain
weighing platform with platform level being same as level of the ground. This
facilitates the weighing of larger objects as they can be easier placed onto the
scale. The installation frame to secure the scale platform can be removed if
necessary, e.g. for cleaning or installation purposes. Optionally the steel
installation scale can be equipped with a damper to also elevate the platform if
necessary. The weighing cells of the steel installation scale feature an IP68
protection while the display is IP65 protected. To reach such a high protection
class the steel installation scale cannot feature any interfaces. Nevertheless
those interfaces e.g. RS232, RS485, USB, LAN, 4-20 mA, 0-10 V or potential-free
contacts can be implemented during production if required. A subsequent
installation is not possible. Those interfaces can be used to integrate the
steel installation scale as a monitoring and control system into production
processes. In case you should have more questions
regarding the steel installation scale PCE-SD F SST series, please read the following technical data, use our contact
form or call us: +44 (0) 2380 98703 0. Our
technicians and engineers will gladly advise you regarding platform
scales or any other product in the field of Control
Systems, Laboratory
Equipment, Measuring
Instruments or Scales
and Balances of PCE
Instruments Ltd.
|
|
|
|
|
|
-
Unit counter function
- Percentage calculation by comparison
- Filter (responding time) adjustable
- Animal weighing function
- Tare value can be saved
- Tolerance range can be set min/ ok / max
- Summation of several weights performable
|
- Function
to weigh composition (formula)
- Statistics function
- Automatic switch off can be set
- Key for gross / net value at display
- Menu settings can be adjusted
- Components do not need any maintenance
- Optional: USB, LAN or 4-20 mA
|
Technical
specifications of the Steel Installation Scale PCE-SD F SST series
|
|
Model |
Weighing
range |
Readability |
Min.
* |
Dimensions |
Weight |
|
PCE-SD
1500F SST |
1,500
kg |
0.5
kg |
10
kg |
1500
x 1500 mm |
210
kg |
|
PCE-SD
3000F SST |
3,000
kg |
1
kg |
20
kg |
1500
x 1500 mm |
210
kg |
|
PCE-SD
6000F SST |
6,000
kg |
2
kg |
40
kg |
1500
x 1500 mm |
210
kg |
|
|
*The
minimum load is defined by the load, from which the calibration authority tests
the accuracy of the scale. The waterproof steel scale shows even lower weights,
but these are not valid for custody transfer.
|
|
Calibration
Class
|
M
III (is calibrated before delivery)
|
|
Tare
function
|
Multiple
taring for whole measurement range
|
|
Settling
time
|
<4
s
|
|
Weighing
units
|
kg
/ units / lb
|
|
Interface
|
Optional
bi-directional RS-232 / LAN / USB
Description
of interface
and 4-20 mA, 0-10 V, OC
|
|
Display
|
LED
with 20 mm digit height
|
|
Cable
Length
|
5
m with socket
|
|
Weighing
Platform
|
riffled
lacquered steel (removable)
|
|
Power
Source
|
~230V,
50Hz, 8VA (Shuko socket)
|
|
Protection
Class
|
Load
Cells IP 68 / Display IP 65
|
|
Operational
temperature
|
-
10 °C ... + 40 °C
|
|
In
order to fit the platform scale into the ground you will require a sketch of the
construction and the dimensions of the fundament and frame. Please consider
therefore the links beneath the following images.
|
|
Diameter of cavity for the steel installation scale
view/ print
|
Frame of steel installation scale
view/ print
|
|
Horizontal view of steel installation scale
view/ print
|
Diameter of stand of steel installation scale
view/ print
|
|

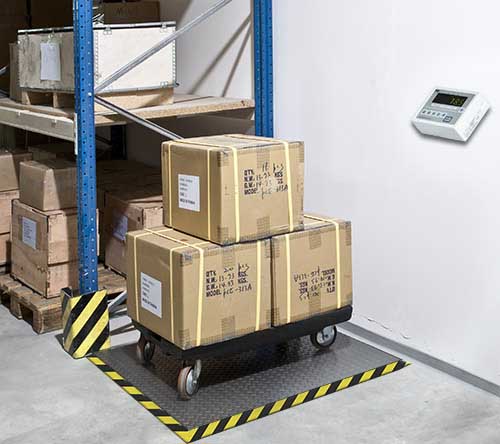

Mounted steel installation scale used to control
incoming goods, comfortable weighing process
|
|
Delivery
content of the Steel Installation Scale PCE-SD F SST series
|
|
1 x
Steel Installation Scale PCE-SD F SST series, 1 x display, 4 x stands for
fixation,
1 x
instruction manual
|
|
Optional
Equipment for the Steel Installation Scale
|
|
Stand
The IP 65 display of the steel installation
scale features
an universal attachment offering the option to mount the display on a wall, a
table or on the optionally purchasable approx. 80 cm steel stands.
Item-Nr. PCE-M-STATIV
|
|
|
Frame
to fit into ground:
In order to mount the steel installation scale into the ground, the edges need to
be secured. This frame can be purchased to fit safety precautions.
Item-Nr. PCE-SD-F-Frame-1515
|
|
|
Interfaces
Due to its high protection category the steel installation scale does not
feature any interface. Although there is the option to integrate these interfaces by
order. They cannot be mounted subsequently.
RS-232 interface Item-Nr. AF-RS232-PCE
RS-485 interface Item-Nr. AF-RS485-PCE
USB interface Item-Nr. AF-USB-S
LAN interface Item-Nr. AF-LAN-S
|

|
|
Software
Procell
The software is able to simulate a manual data feed-in and can transfer the data
e.g. straight to Excel with time and date. There is also the option of saving a
TXT file in the background. (data cable not included in delivery)
It.-nr. PCE-SOFT-Procell
|
|
|
USB
stick
If there is no computer or printer to be connected to the steel installation scale, the weighing data can be saved with time and date stamp as a txt.-file
on a USB stick. The USB stick is to connect to the steel scale via
the RS-232 interface. The adapter requires a separate external power source
(adapter incl.).
Item- Nr. PCE-USM
|
|
|
Analogue
output 4-20 mA / 0 ... 10 V
The 16 bit analogue output converts the weight value into a mA or V signal, so
that e.g. a SPS control system can response to that. Example with 4 ... 20 mA:
At 0 kg a signal of 4 mA is sent, while at maximum load a 20 mA signal is
released. The 20 mA / 10 V limit can be also customized individually.
Item-Nr. AF-4-20mA-PCE
Item-Nr. AF-0-10V-PCE
|
|
|
Potential-free
contacts
This contactor is called in short-terms an OC-contactor. It means that by
reaching preset weight limits e.g. MIN / OK / MAX, the scale is able to switch a
maximum of three contacts. The switch can be either set as an impulse or a
continuous signal.
Item Nr. AF-TSD
|
|
|
Printer
For immediate print-out of values from the steel installation scale (e.g. for
protocol of weighing data). Delivery of printer incl. RS232 printer cable and
240 V network adapter, paper width 112 mm ( 1 role incl.).
Item Nr. PCE-BP 1
|
|
|
Signal
lights
This signal lamp helps assuring a visible signal system for the whole personnel.
If the weight is below the minimal limit, the yellow lamp brightens up, if the
values are within the preset thresholds, the green lamp brightens, if the weight
trespasses the upper limit, the red light starts brighten.
Item -Nr. PCE-CSD
|
|
|
RS-232
cable
This serial cable has a total length of 1 m, and features the accordant pins
2-3/ 3-2 / 5-5 for a bi-directional communication path of the steel installation
scale with a computer.
Item-Nr. PCE-BDM-RS232
|
|
|
USB
adapter
This adapter is meant for a conversion from a RS-232 interface Sub D 9 to a USB
interface. It additionally requires a serial cable with the right poling.
Item Nr. RS232-USB
|
|
|
|
|
|
