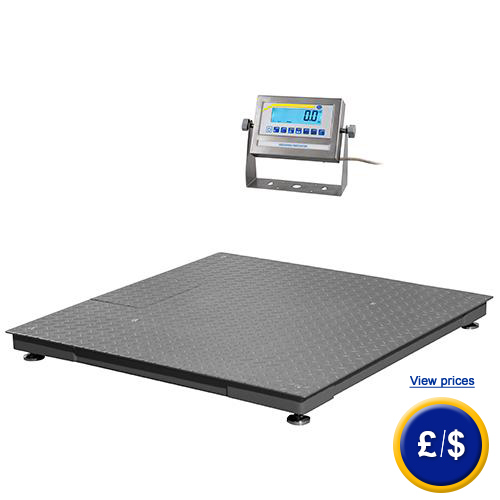

Weighbridge PCE-RS 2000
Weighbridge made of lacquered steel / platform size 1200 x 1200 mm / up to 2,000 kg /
alarm function for thresholds / sum-up function / counting function / analogue output 4-20 mA

The weighbridge is meant for stationary operation. Due to its robust design the weighbridge is ideal to weigh large, heavy objects. The weighbridge is made of lacquered steel. The weighing data of the weighbridge PCE-RS 2000 are then displayed on an external display, so that the read-out of the measured values becomes very comfortable (5m cable). The functions supported by the weighbridge PCE-RS 2000 are the following: summation function, counter function, control weighing. The weighbridge furthermore supports a bi-directional RS 232 interface, so that the measured data can be transferred to an optional computer software, which releases the data in an Excel tabular. The display can be placed on a table or an optionally purchasable stand. In case that you should have more questions regarding the Weighbridge PCE-RS 2000, please read the following technical data, use our contact form or call us: +44 (0) 2380 98703 0. Our technicians and engineers will gladly advise you regarding weighing bars or any other product in the field of Control Systems, Laboratory Equipment, Measuring Instruments or Scales and Balances of PCE Instruments Ltd.

- Display made of stainless steel IP 54
- LC display with 25 mm digit height
- Cable for display ca. 5 m (socket connection)
- Summation function

- Unit counter function
- Control weighing function MIN / OK / MAX
- Bi-directional RS 232 interface
- Analogue 4 ... 20 mA

Weighing range

2,000 kg

Resolution

0.5 kg

Measurement uncertainty

± 2 kg

Tare range

for whole measuring range

Display

LCD display, digit height 25 mm, with background lights

Interface

1 x bi-directional RS 232 interface
1 x analogue output 4 ... 20 mA

Calibration

calibration with one or multiple values

Operation temperature

-10 ... +40 °C / max. 85 % r.H.

Power supply

12 V / 1000 mA adapter (no battery)

Dimensions weighbridge

1200 x 1200 x 100 mm

Weight

approx. 85 kg

Delivery content of the Weighbridge PCE-RS 2000

1 x Weighbridge PCE-RS 2000, 1 x display, 1 x adapter 230 V and  1 x instruction manual

Optional Equipment of Weighbridge PCE-RS 2000

ISO calibration / certification
For companies that want to admit the device to their internal pool of test devices. The calibration certificate is made by test laboratories and is a compare of the standard value and the measured value.

Ramp
This ramp opens up more options to use the weighbridge. By using two of these, driving on and off the balance is significantly faciltated.

Printer
For an immediate print-out of the measured data (e.g. for keeping a record of the weighing data in laboratories). The printer will be delivered with an RS 232 printer cable and 240 V adapter, whilst the paper width is 112 mm.
Item-Nr. PCE-BP 1
