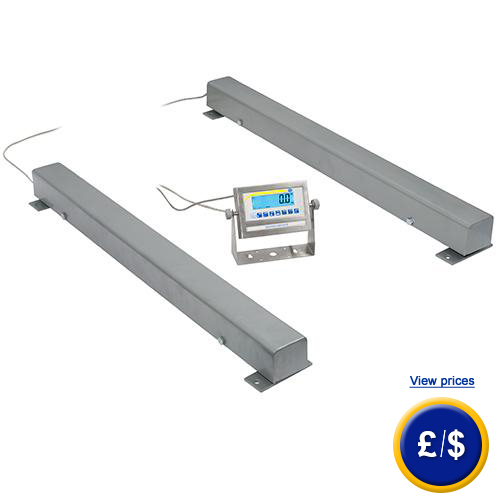

Weighing Bars PCE-SW N series
Weighing bars for up to 5,000 kg / Readability above 0.5 kg / Installment space up to 4 m /
Battery operation / Threshold function / bi-directional RS-232 interface

The weighing bars PCE-SW N series allow a measurement of palettes disregarding their size. The weighing bars can be set up with a maximum distance of 4 m from one another. These weighing bars are ideal for the e.g. weight measurement of super-large or extra long weighing goods. The weighing bars are 1200 mm long and 120 mm broad. The 5 t weighing bars have a length of 2000 mm. The display is connected via a 5 m cable with the weighing bars. This display can be either mounted to a wall or set up on a table. Due to the RS 232 interface the weighing scale can be connected to a computer or a printer. With help of the instruction manual of the interface included in delivery, the weighing bars can be easily set-up and integrated into an IT system. The power source of the weighing bars is an internal rechargeable battery, so that the weighing bar can be operated on flexible terms. In case that you should have more questions regarding the Weighing Bars PCE-SW N series, please read the following technical data, use our contact form or call us: +44 (0) 2380 98703 0. Our technicians and engineers will gladly advise you regarding weighing bars or any other product in the field of Control Systems, Laboratory Equipment, Measuring Instruments or Scales and Balances of PCE Instruments Ltd.

More information about the Weighing Bars PCE-SW N series   User Manual for the Weighing Bars PCE-SW N series   CE-Certificate for the Weighing Bars PCE-SW N series   Video of the Weighing Bars PCE-SW N series   More pictures of the Weighing Bars PCE-SW N series   Technical Specifications for the Weighing Bars PCE-SW N series

Weighing Bars PCE-SW 5000 N

- Weighing range of up to 5,000 kg
- Bi-directional RS 232 interfaces
- Ideal for palette and container weighing
- Threshold function
- Counting function

- Sum-up function
- Multiple tare
- Internal rechargeable battery
- Display made of stainless steel
- LCD display with 25 mm digit height

Weighing Bar PCE-SW 5000 N application 1

Weighing Bars PCE-SW 5000 N application2

Technical Specifications of the Weighing Bars PCE-SW N series

Model

weighing range

Readability

Measuring inaccuracy

Bar length

PCE-SW 1500N

1,500 kg

0.5 kg

± 2 kg

1200 mm

PCE-SW 3000N

3,000 kg

1 kg

± 4 kg

1200 mm

PCE-SW 5000N

5,000 kg

2 kg

± 8 kg

2000 mm

Tare range

multiple tare for whole measurement range

Display

LCD with 25 mm digit height

Cable length to display

approx. 5 m

Interface

bi-directional RS 232

Calibration

Calibration on multiple values

Power Supply

6 V rechargeable battery integrated into display (BAT-6V-4,5Ah)

Enclosure

Scale: lacquered steel / Display: stainless steel

Protection type

IP 54

Surrounding conditions

 0 ... +40 °C / 10 ... 80 % rH

Weight

approx. 55 kg

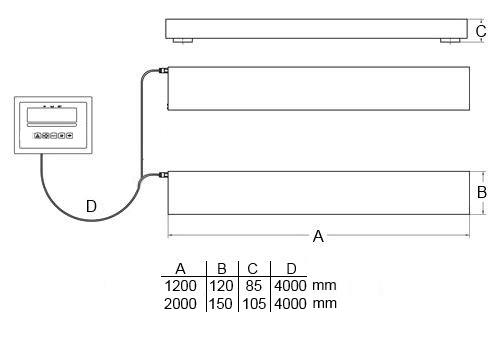

Weighing Bars PCE-SW N series dimensions

Delivery content of the Weighing Bars PCE-SW N series

1 x Weighing Bars PCE-SW N series, 1 x display, 1 x adapter and  1 x instruction manual

Optional Equipment of Weighing Bars PCE-SW N series

ISO calibration / certification
For companies that want to admit the device to their internal pool of test devices. The calibration certificate is made by test laboratories and is a compare of the standard value and the measured value.
Item-Nr. CAL-PCE-RS

Weighing Bars PCE-SW 5000 N ISO calibration / certification

Software Procell
The software is able to simulate a manual data feed-in and can transfer the data e.g. straight to Excel with time and date. There is also the option of saving a TXT file in the background.
Item-Nr. PCE-SOFT-Procell

Weighing Bars PCE-SW 5000 N series Software Procell

USB adapter
This is a connecting cable from USB to RS 232. Therefore the cable can be straightly plugged into the RS232 interface of the weighing bars.
Item-Nr. RS232-USB

Weighing Bars PCE-SW 5000 N USB adapter

Technical specifications for the Weighing Bars PCE-SW N series
