PCE-ERT 10
series earth resistance meter
Measurement of earth resistance up to 2000Ω
/ earth voltage / CAT III 1000 V / zero reset / large LCD display / picks are
included in the delivery
|
|

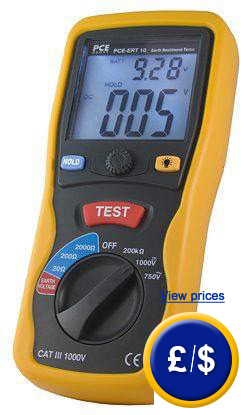

The PCE-ERT 10 series earth resistance meter is a handheld instrument
used to determine quickly and easily earth and ground resistance. Earth
resistance and insulation are determined with the PCE-ERT 10 series earth
resistance meter through 3 conductors up to 2000 Ω. By means
of the rotary switch a zero setting can be performed before every measurement
to optimize accuracy. The PCE-ERT 10 earth resistance meter allows to
measure standard resistance up to 200 kΩ, to measure earth voltage as well
as to measure alternating and direct voltage. Its large LCD display with
backlight indicates both the current measurement value and the battery
voltage to check the battery. The delivery
includes two testing cables and pickets. The carrying case can be used to storage
the accessories. You will find an overview of all the earth resistance meter
at the following
link.
|
|
- 3 conductors measuring method
- Earth / ground resistance is determined in three
different measurement ranges up to 2000 Ω
- Measuring earth voltage up to 200 V
- Battery voltage is shown in the large LCD
display
- Possibility to zero setting.
- Measuring
alternating and direct voltage
- All the accessories are stored in the carrying
case.
View / print user’s manual of the PCE-ERT 10
series earth resistance meter.
 |
|
|
Technical specifications |
|
Measurement ranges
|
Earth / ground insulation
Earth / ground voltage
Direct voltage
Alternating voltage
Resistance |
20 Ω / 200 Ω / 2000
Ω
200 V
1000 V
750 V (40 Hz - 400 Hz)
200 kΩ |
|
Resolution
|
Earth / ground insulation
Earth / ground voltage
Direct voltage
Alternating voltage
Resistance |
0,01 Ω / 0,1 Ω / 1
Ω
0,1 V
1 V
1 V
0,1 kΩ |
|
Accuracy
|
Earth / ground insulation
Earth / ground voltage
Direct voltage
Alternating voltage
Resistance |
±(2 % + 10 digits)
/ ±(2 % + 3 digits) /
±(2 % + 3 digits)
±(3 % + 3 digits)
±(0,8 % + 3 digits)
±(1,2 % + 10 digits)
±(1 % + 2 digits) |
|
Measuring quota |
2,5 / seconds
|
|
Display
|
Backlight LCD display
|
|
Power
|
6 x 1,5 V AA batteries |
|
Operating conditions
|
0 ... 40 ºC
/ <80 % H.r. |
|
Dimensions
|
200 x 92 x 50 mm |
|
Weight
|
700
g |
|
Standards
|
IEC10101, CAT III 1000 V |
|
Accesories of the
earth resistance meter
|
Testing cables are marked
with different colors for a better orientation
|
Testing cables connections are in the upper half of the meter. |
Picks are included in the delivery of the earth resistance meter
|
Carrying case for the PCE-ERT 10 series earth resistance meter. |
 |
 |
|
