Coating Thickness Tester PCE-CT 65 (F/NF)
Combined Coating thickness tester for capture of the thickness of coating, plastic…/ measuring of steal/iron (F) and non-ferrous objects (NF) / single or permanent measurement /
non-destructive measurement

Our coating thickness tester is an instrument manufactured for nondestructive measurements of coating thickness. In this aspect, the coating thickness tester stands out with its wide measuring range, two measuring modes and its memory (30 groups with 50 measurements each). They are indispensable for control measurement concerning production, car workshops and quality assurance in general. A coating thickness tester is essential for engineers in the coating and paint sector. The coating thickness tester is ideal to detect accidental damages or to avoid damages in advance. That is why coating thickness testers are made for automotive experts. But it is furthermore important for the industrial sector concerning input and output controls as well as material inspections.

Our coating thickness tester is ergonomically designed, has an integrated measuring sensor and is very easy to handle. The coating thickness tester makes it possible to determine measurements instantly and with high accuracy. Because of its high measuring range, a coating thickness tester is also appropriate for the inspection of paint coatings in the sector of railings and shipbuilding.

If there are any questions about this Coating Thickness Tester PCE-CT 65 please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding all coating thickness meters and all products in the field of measuring instruments, laboratory equipment, regulation and control and scales.

Get more information on the Coating Thickness Tester  User manual for the Coating Thickness Tester

Coating thickness tester PCE-CT 65

- for ferrous and non ferrous metals
- immediately ready for measurement
- large measurement range
- memory for up to 1500 measurements

- two measurement modes
- comfortable single-hand navigation
- delivered with carry case
- calibration plates for checking the accuracy

Technical specifications of the coating thickness tester PCE-CT 65

ferrous metals



Functional principle

Magnetic induction

Measuring range

0 ... 1350 µm
0 ... 53.1 mils

Accuracy

0 ... 1000 µm: ± (2.5 %; ± 2 µm)
1000 ... 1350 µm: ± 3.5 %
0 ... 39,3 mils: ± (2 %; ± 0.08 mils)
39.3 ... 53.1 mils: ±3.5 %

Resolution

0 ... 100 µm: 0,1 µm
100 ... 1000: 1 µm
1000 ... 1350: 0,01 mm
0 ... 10 mils: 0,01 mils
10 ... 53,1 mils: 0,1 mils

Smallest measured surfaces

Ø 7 mm

Smallest curvature radius

1.5 mm

minimum thickness carrier material

0.5 mm

non-ferrous metals



Functional principle

Eddy current

Measuring range

0 ... 1350 µm

Accuracy

0 ... 1000 µm: ± (2.5 %; ± 2 µm)
1000 ... 1350 µm: ± 3.5 %
0 ... 39.3 mils: ± (2 %; ± 0.08 mils)
39.3 ... 53.1 mils: ±3.5 %

Resolution

0 ... 100 µm: 0.1 µm
100 ... 1000: 1 µm
1000 ... 1350: 0.01 mm
0 ... 10 mils: 0.01 mils
10 ... 53.1 mils: 0.1 mils

Smallest measured surfaces

Ø 5 mm

Smallest curvature radius

3 mm

minimum thickness carrier material

0.3 mm

General specifications for coating thickness tester PCE-CT 65

Units

µm, mils

Functions

alarm function, backlight display, automatic shutdown, calibration mode, memory

Storage possibility

30 groups with a capacity of 50 measurements each

Interface

USB

Operating conditions

0 ... +40°C / 20 ... 90 % r.h.

Power

2 x 1.5 V AAA batteries

Software of the coating thickness tester PCE-CT 65

In the delivery content of the coating thickness tester is a software to transfer the measured data onto your computer. This is an easy to use software, what gives you also comprehensive information from the measurements. The groups can be transferred on its own, partial or full. After transferring them each group can be selected. Also the full series with the slots, material characteristics (ferrous or non-ferrous) and the material thickness will be shown in a chart. On top of it the software gives the information  how many measurements are saved in the group, which maximum and minimum value the group has and the average value of the measurements. The software shows how many measurements are taken on ferrous and non-ferrous material. Further information can be found in the manual.

Delivery content of the coating thickness Tester PCE-CT 65

1 x coating thickness tester PCE-CT 65, 1 x carry case, 2 x 1.5 AAA batteries, 1 x evaluation software, 2 x calibration plates (aluminum and iron), 1 x USB cable, 1 x manual

Use and application of the coating thickness tester PCE-CT 65

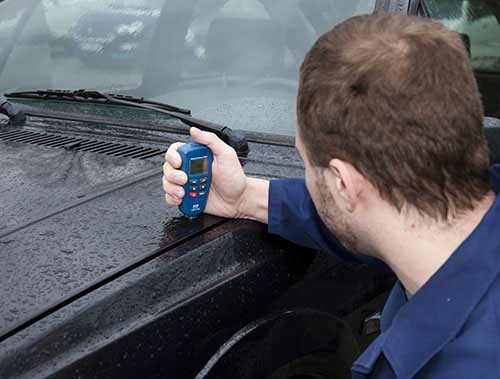

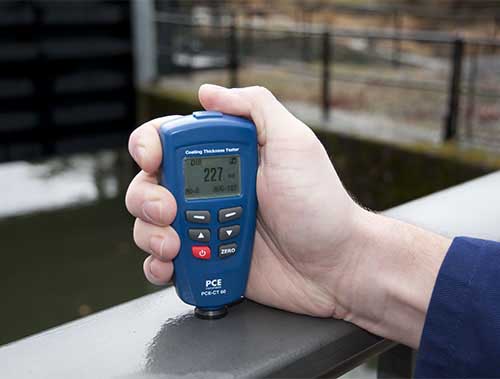

coating thickness tester pce-ct 65 in use

coating thickness tester pce-ct 65 in use

coating thickness tester pce-ct 65 in use

coating thickness tester pce-ct 65 in use

coating thickness tester pce-ct 65 front display

coating thickness tester pce-ct 65 standards

Further images of the coating thickness tester PCE-CT 65

With the help of the calibration accessories  within the delivery content, you can adjust the coating thickness tester any time. For that, the Coating thickness tester needs to be set up on one of the foils. Please make sure that the tester is set up straight / plane.

coating thickness tester pce-ct 65 delivery content

The sensor of the coating thickness tester PCE-CT 65 can measure a coating thickness of up to 1350 µm. With a high accuracy the device is very precise and useful for professional use. Any workshop requires a coating thickness meter. The coating thickness tester PCE-CT 65 is ideal for any application.

coating thickness tester pce-ct 65 sensor

Optional Equipment for the Coating Thickness Tester

ISO calibration certificate
For customers who want to admit the device to their pool of test equipment. Purchasable for initial purchase or for annual calibration, to confirm a continuous high measurement accuracy.

Coating Thickness Tester PCE-CT 65 calibration certificate

Technical specifications for the Coating Thickness Tester
