PCE-DC4 Current
detector
current detector up to
1000 A AC
|
|
The PCE-DC4 current
detector can measure
contact-less currents.
The current detector has
a solid fire-proof
housing with a rubber
protection which makes
this detector very easy
to handle. It's
special shape allows for
it to be used in narrow
spaces with difficult
access. All current
detector functions are
overload protected for
customer's safety. The
current detector can be
used with conductors up
to 31mm diameter. This
current detector is a
very useful tool for
technicians, repair
shops and laboratories.
At this link you will
find a
general overview
of all current detectors
available from PCE
Group. |
-
LCD with
3 ¾ positions, 17 mm,
max. indicator: 3999
-
Values maintenance
-
Alternating current up to 1000 A
-
Voltage up to 600 V AC/DC
-
Resistance function,
frequency, capacitance and
temperature.
-
Diode test and transit
control.
-
Automatic / hand range
selection
-
Auto shut-off
-
Diameter of the conductor:
max. 31 mm
View / Print user's manual
|
PCE-DC4 Current
detector
|
|
Technical specifications |
| DC
current |
400
mV / 4 / 40 / 400 / 600 V
± 0,8 % + 3 St. – 100 μV |
|
Overload protection |
600
V DC / AC |
| AC
current |
400
mV /4 / 40 /400 / 600 V
± 1,8 % + 5 St. – 100 μV |
|
Overload protection |
600
V DC / AC |
| ACA |
40
/ 400 / 1000
A
± 2,5 % + 5 St. – 10 mA |
|
Overload protection |
1000
A |
| Ohm |
400
Ω
/ 4 / 40 / 400
kΩ
/
4 / 40
MΩ
±
1,0 % + 4 St. – 100 mΩ |
|
Overload protection |
250
V DC / AC |
| Frequency |
5
/ 50 / 500 Hz/ 5 / 50 / 500 kHz / 5 / 10 MHz
± 1,2 % + 2 St. – 1 mHz |
|
Overload protection |
250
V DC / AC |
| Capacitance |
40
/ 400 nF / 4 / 40 / 100 μF
± 3 % + 5 St. – 10 pF |
|
Overload protection |
250
V DC / AC |
| Temperature |
-
50
... + 1000°C
± 3 % + 5°C – 0,1°C |
|
Overload protection |
60
V DC / 24 V AC |
|
Warning tone |
yes |
|
Diode test |
yes |
|
Power |
9 V
battery |
|
Diameter of the conductor |
max.
31
mm |
| Dimensions |
229
x 80 x 48 mm |
|
Weight |
303
g |
|
Security |
IEC
1010-1, 600 V CAT III |
|

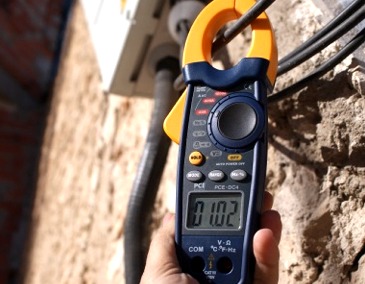

Use
of the PCE-DC4
current detector |
|
PCE-DC4
current detector
measuring current
absorbed in a
connection. |
Delivery contents
1
PCE-DC4 current meter,
1 case, testing cables,
1 temperature sensor, 1 battery
and user's manual
|
|
 |
 |
|
