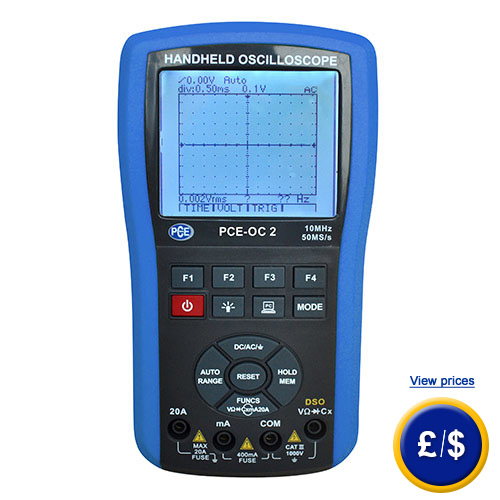

Hand-Oscilloscope-Multimeter PCE-OC 2
hand-oscilloscope-multimeter with 10 MHz analog band width / integrated multimeter / intern storage for up to 100 waveforms and measurements /
LC-display with 3 levels of brightness / frequency counter / USB interface

The hand-oscilloscope-multimeter PCE-OC 2 is a multifunctional equipped and universal applicable instrument combined of an oscilloscope and a True RMS multimeter. The band width of the hand-oscilloscope-multimeter can be up to 10 MHz. The hand-oscilloscope-multimeter is developed for the practical and mobile application and is because of the multifunctional equipment suitable for the defect detection. The instrument is an ideal companion for the service technician local or also in each electrical workshop. The brightness of the LCD display with a resolution of 128 x 128 pixel of the hand-oscilloscope-multimeter is adjustable into 3 different levels. The hand-oscilloscope-multimeter PCE-OC 2 commands also about an intern storage for up to 100 data at which you can save both waveforms and measurements. The integrated multimeter is equipped with the standard functions voltage, current and resistance measurement as well as diode and pass tests. In addition it has the additional option frequency and capacitance measurement. With the USB interface you are able to connect the hand-oscilloscope-multimeter with a PC for transfer the measurements. If there are any questions about this hand-oscilloscope-multimeter, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703.. Our engineers and technicians will gladly advise you regarding the oscilloscopes or any other products in terms of regulation and control, or scales and balances of PCE Instruments.

  Information for the hand-oscilloscope-multimeter PCE-OC 2  User manual for the hand-oscilloscope-multimeter PCE-OC 2  EC certificate for the hand-oscilloscope-multimeter PCE-OC 2  Video for the hand-oscilloscope-multimeter PCE-OC 2  hand-oscilloscope-multimeter PCE-OC 2: Further Images  Technical specifications for the hand-oscilloscope-multimeter PCE-OC 2

Hand-oscilloscope-multimeter PCE-OC 2

- analog band width: 10 MHz
- autorange-multimeter
- auto-set for an easy handling
- LCD display with 3 brightness levels

- USB interface
- data logger function
- frequency counter
- intern storage up to 100 measurements

Technical specifications of the hand-oscilloscope-multimeter PCE-OC 2

Multimeter



DC voltage / Accuracy

400.0 mV / ± (0.75 % + 10 dgt.)
4.000 V / ± (0.75 % + 10 dgt.)
40.00 V / ± (0.75 % + 10 dgt.)
400.0 V V / ± (0.75 % + 10 dgt.)
1000 V / ± (1.5 % + 10 dgt.)

AC voltage / Accuracy

400.0 mV / 50 Hz ~ 1 kHz: ± (1 % + 10 dgt.)
4.000 V / 1 ~ 10 kHz: ± (2 % + 10 dgt.)
40.00 V / 10 ~ 50 kHz: ± (3 % + 10 dgt.)
400.0 V / (über 50 kHz nicht definiert)
750 V / 50 Hz ~ 1 kHz: ± (1.5 % + 10 dgt.)

DC current / Accuracy

40.00 / 400.0 mA / ± (1.2 % + 10 dgt.)
4.000 / 20.00 A / ± (1.2 % + 10 dgt.)

AC current / Accuracy

40.00 / 400.0 mA / ± (1,5 % + 10 dgt.)
4.000 / 20.00 A / 50 Hz ~ 1 kHz (above 1 kHz not specified)

Resistance / Accuracy

400.0 Ω / ± (1 % + 5 dgt.)
4.000 K / ± (1 % + 5 dgt.)
40.00 K / ± (1 % + 5 dgt.)
400.0 K / ± (1 % + 5 dgt.)
4.000 MΩ / ± (1 % + 5 dgt.)
40.00 MΩ / ± (3 % + 5 dgt.)

Capacitance / Accuracy

51.20 nF / ± (2 % + 10 dgt.)
512.0 nF / ± (1 % + 3 dgt.)
5.120 µF / ± (1 % + 3 dgt.)
51.20 µF / ± (1.5 % + 3 dgt.)
100.0 µF / ± (may need 30 sec.)

Frequency counter

5.12 Hz ... 5.12 MHz / ± (0,1 % + 5 dgt.)

Duty cycle

0.1 ... 99.9 %

Measurement range

2.5 times / sec.

Oscilloscope



Analog band width

10 MHz

Real-time sampling rate

50 MS/s

Vertical resolution

8 bits

No linearity

± 1 bit

Vertical sensitivity range

50 mV/div ... 200 V/div

Vertical accuracy

± (5 % + 0,1 div.)

Horizontal accuracy

± (0,01 % + 0,1 div.)

General specifications

Display

128 x 128 pixel LCD display

Backlight

white LED, 3 brightness levels

Power

Li-Ion Battery or AC adapter

Operational conditions

0 ... +50 °C

Dimensions

86 x 186 x 32 mm

Input impedance

10 MΩ

Auto power off

5 ... 60 minutes adjustable

Charging time

about 3 hrs

Storage

100 records

Storage conditions

-10 ... +60 °C

Weight

325 g

Delivery content of the hand-oscilloscope-multimeter PCE-OC 2
1 x hand-oscilloscope-multimeter PCE-OC 2, 1 x Software including USB cable, 1 kit test lead, 1 x transport case, 1 x AC adapter,1 x batteries, 1 x manual
