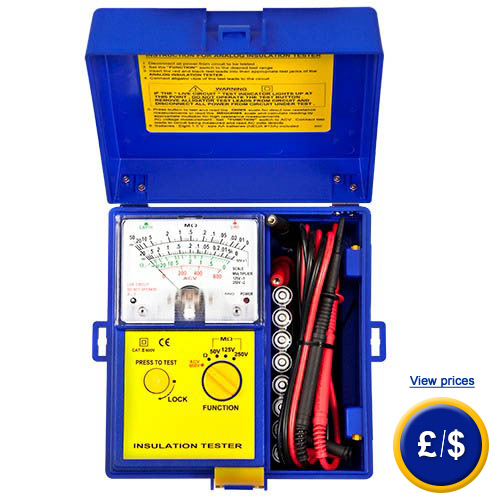

PCE-IT181 insulation meter
(for telecommunications, wth three test
voltages: 50, 125 or 250V DC)
|
The PCE-IT181 insulation meter has been
designed specifically for use in telecommunications. The voltage
meter with combined insulation meter has a linear coloured scale up
to 600V AC.
The insulation meter meets with security standard IEC-1010-1, CAT III.
The following
link has an overview of all the insulation meters available to
suit your needs.
|
|
Insulation meters offer the following:
- Designed specifically for telecommunications
- Meets IEC-1010-1, CAT III
- Highly accurate
- Compact design
- Auto discharge of measurement circuit
- safe current
- Battery indicator
-
3 DC test voltages
- Short circuit protection
- Good relation between quality and price
View or print the user's
manual
 |
PCE-IT181 insulation meter |
|
Technical specifications |
|
Measurement range / test voltage |
20
MΩ/ 50V
50 MΩ/ 125V
100 MΩ/ 250V
+/-5% +1 dgt./
|
| Current
short circuit |
2
mA DC |
|
V AC |
600
mV; +/-2.5% |
|
Ohms |
50
Ω; +/-5% |
|
audible warning |
no |
|
Power |
8
x 1.5V batteries |
| Dimensions |
165
x 170 x 92mm |
|
Weight |
1kg |
|
Contents
PCE-IT181 insulaton meter, test cable, clips,
8
batteries and user's manual
|
 |
Measurements of
insulation can be done for whichever new, repaired or replaced
installation. Furthermore, it is a requirement that measurments
are repeated in spaces where industrial installations are kept
for a prolonged period of time. Due to deterioration as a result
of aging, damage and the influence of climatic factors. |
Insulation measurement limits to be
observed
- in new installations (dry spaces): 1000 Ω x V
of operating voltage
(for example at 230V > 230 kΩ)
- in new instalations (humid spaces,
open air): 500 Ω x V of operating
voltage
- grounded devices: 1000
Ω x V of operating voltage
- device with insulation protector:
2 MΩ
- electrical tools: 2 MΩ
- low voltage: 250 kΩ
- electrical meters: 5 MΩ
Test voltage values are usually 100V
for low voltage installations, 500V for installations in houses or
buildings and 1000V for low voltage motors and transformers. |
 |
 |
|
