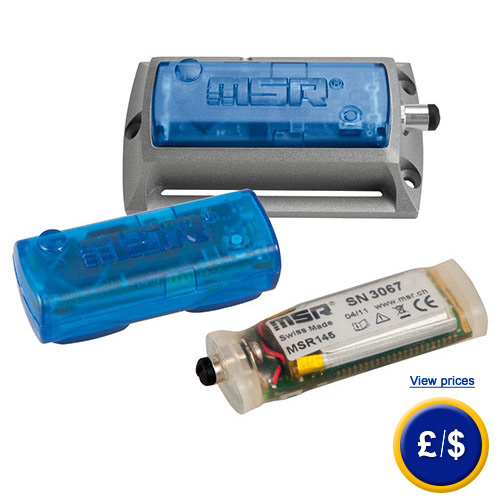

MSR145 Mini Data Logger
Mini Data Logger for long-duration measurement / weighs only 18 g /
memory for 2,000,000 readings for humidity, pressure, temperature, acceleration light and position / uses a Lithium-ion battery

The prize-winning MSR145 Data Logger is a universal mini data logger which measures and stores different physical values. The mini data logger contains a temperature sensor, a humidity sensor with integrated temperature, a pressure sensor, a lux sensor and a 3-axis accelerometer (X, Y, Z axis). An additional two or four analogue inputs are provided for connecting external sensors. This Mini Data Logger stores up to 2 000 000 measured values and is also available as a sealed watertight version. Measurement data from the MSR145 can be transferred after the measurement is completed or even during the measurement. Using software, measurement intervals can be set and data can be stored on the MSR145 according to your requirements. For longterm measurements, the Mini Data Logger has been fitted with a 900 mAh lithium polymer battery allowing you to easily record measured values over a period of up to two years. Thanks to to the integrated real time clock, data can be grouped by synchronising time intervals from a set of data loggers and all within the same index. The housing, the battery and measurement parameters, together with the type and number of sensors (internal and external) can be configured individually. Typical application fields of this data logger include transport, pharmaceutical industry, technical environments, aviation, research and development, manufacturing of machinery, medicine, chemistry and industrial textiles. If there are any questions about this Mini Data Logger, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all Data Loggers and all products in the field of measuring instruments, regulation and control and scales

Mini Data Logger PCE-MSR145 User manual for the Mini Data Logger PCE-MSR145 EC certificate for the Mini Data Logger PCE-MSR145 Video for the Mini Data Logger PCE-MSR145 Mini Data Logger PCE-MSR145  further Images Technical specifications for the Mini Data Logger PCE-MSR145

Mini Data Logger PCE-MSR145

- Temperature
- Relative humidity with integrated temp. sensor
- Pressure (e.g. altimeter, sea level, barometer)
- Acceleration on 3 axis (for determining position)
- Light (e.g. chemicals industry)
- Memory for 2,000,000 readings
- Start/Stop via keypad
- Model is water resistant with IP67 protection

- USB port
- Software for data analysis is included
- Date and time
- Adjustable measurement quota (1 sec. to 12 h.)
- Long life Lithium-Ion rechargeable battery
- Status indicated by 3 LEDs (with alarm)
- Weight is only 18 grams
- Compact design, only 52 mm

General technical data of the Mini Data Logger MSR145

Memory Capacity

Over 2 000 000 measured values - expandable to over 1bn measured values with optional microSD card.

Push-button

Set bookmark or start and stop recording

LED

blue: Record indicator
red: Alarm indicator
yellow: Battery change indicator

Power supply

Lithium-polymer battery, 260 mAh or 900 mAh.
The battery is charged via the USB connection.

Options

Charging station (USB hub) for 7 MSR145

Interface

USB

PC software

Free Setup, Reader, Viewer and Online software (Windows 2000 / XP / Vista / 7 / 8) to record and evaluate data. All measured values can be rapidly transferred to a PC via USB connection both during the measurement operation and once the measurement task has been completed. Thanks to integrated clock (RTC), data from as many MSR145 units as required can be synchronised and merged into a single data record.

Operating conditions

Temperature -20 ... +65 C

Storage conditions

- Temperature +5 ... +45 C (ideal storage conditions for the battery)
- 10 ... 95 % relative humidity, non-condensing

Standards

The MSR145 complies with EU-Directives RoHS/WEEE.

Housing and battery selection

Housing and battery selection

Selection of Sensors

Make an individual assembly of your MSR145 data logger and select the requested internal and external sensors (cable length 0.20 m, 1.0 m, 1.6 m).

Measured parameters

Working range

Accuracy

Measurement/
storage rate

Temperature

ext.: -10 ... +58 C

0,1 C (+5 ... +45 C)
0,2 C (-10 ... +58 C)

1/s to every 12 h

ext.: -55 ... +125 C

0,5 C (-10 ... +65 C)
2 C (-55 ... +125 C)

int.: -20 ... +65 C

0,5 C (-10 ... +65 C)
2 C (-55 ... +125 C)

ext.: 1 or 4 connectors for K-type thermocouples (excl. sensor) -250 ... +1200 C

Relative humidity
with integrated temperature

0 ... 100 % rel. humidity
ext.: -20 ... +85 C
int.: -20 ... +65 C

2 % rel. humidity
(10 ... 85%,0 ... +40C)
4 % rel. humidity
(85 ... 95%,0 ... +40C)

1/s to every 12 h

Air pressure absolute, with integrated temperature

0 ... 2000 mbar absolute
ext.: -20 ... +85 C
int.: -20 ... +65 C

2,5 mbar
(750 ... 1100 mbar absolute, +25 C)

10/s to every 12 h

0 ... 14 bar absolute
-20 ... +65 C

50 mbar (1 ... 10 bar absolute, +25 C)

Fluid pressure
(external sensor)

0 ... 3000 mbar absolute
-20 ... +65 C

30 mbar

20/s to every 12 h

0 ... 30 bar absolute
-20 ... +85 C

300 mbar

3-axis-acceleration (Position)

15 g
-20 ... +65 C

0,15 g (+25 C)

50/s to every 12 h

Light

0 ... 65.000 lx

max. sensitivity at
500 nm

1/s to every 12 h

Additional analogue inputs for connecting third-party sensors

MSR145 Analogue

Technical data

Including alarm output and input for starting and stopping data recording.

2 or 4 analogue inputs with freely selectable input configuration: 0 ... 20 mA; 4 ... 20 mA;
0 ... 3.0 V; 0.5 ... 4.5 V; 0 ... 5.0 V; 1.0 ... 6.0 V; 0 ... 10.0 V; 0 ... 12.0 V; 0 ... 24.0 V
Resolution: 12 Bit

Software for the Mini Data Logger MSR145

software for the PCE-MSR145 data logger
By using the software package included with the device, it is possible to read and analyse stored data. To ensure that the date and time remain constant for a test series of data, the MSR145 comes with a real time clock (RTC).

Examples of use for the MSR series Data Logger

The PCE-MSR145S data logger being used in transport.
The MSR145S data logger is used in transport.

The PCE-MSR145W being used to check temperature in a refrigeration unit.
The MSR145W is used to check temperature in a refrigeration unit.

The actual size of the PCE-MSR145S data logger.
The actual size of the MSR145S Data Logger.

An image illustrating the actual size of the PCE-MSR145W data logger.
An image illustrating the actual size of the MSR145W Data Logger.

Delivery content
1 x MSR145 data logger (according to the table below), 1 x software with cable and user manual

Variations of available models

MSR145S (standard)

MSR145STHPA (with 4 sensors)
temperature, humidity, pressure, acceleration

MSR145STHP (with 3 sensors)
temperature, humidity, pressure

MSR145STHA (with 3 sensors)
temperature, humidity, acceleration

MSR145STH (with 2 sensors)
temperature, humidity

MSR145STP (with 2 sensors)
temperature, pressure

MSR145STA (with 2 sensors)
temperature, acceleration

MSR145W (water resistant)

MSR145WTHPA (with 4 sensors)
temperature, humidity, pressure, acceleration

MSR145WTHP (with 3 sensors)
temperature, humidity, pressure

MSR145WTHA (with 3 sensors)
temperature, humidity, acceleration

MSR145WTH (with 2 sensors)
temperature, humidity

MSR145WTP (with 2 sensors)
temperature, pressure

MSR145WTA (with 2 sensors)
temperature, acceleration

technical specifications for the PCE-MSR145 mini data logger.
