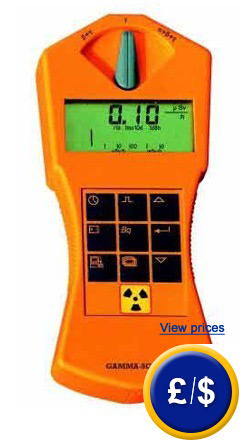

Radioactivity meter GAMMA - SCOUT ®
radioactivity meter with internal memory and software

This professional radioactivity meter is a precise instrument to measure Alpha, Beta and Gamma radioactivity. The radioactivity meter has a wide measuring range and can be used for diverse  measurement types as well as for sporadic measurements in situ, long-lasting measurements or for controls. The radioactivity meter provides a certified measurement of the environmental radiation as well as of the radiation which is artificially increased up to 500 times over the limit value. This radioactivity meter has diverse applications. This Geiger meter is usually used in nuclear power stations. It is most commonly used in the control of imported goods, as well as to measure food which has been previously irradiated. This radioactivity meter can also be used to measure natural radioactive radiation such as the radiation which appears near the sea. It fulfills all the requirements when controlling building materials. In our online offer, there are two versions of this measuring instrument available: the standard version (GS1 model) or with acoustic signals (Ticker) (GS2 model). Radiation values can be recorded in the radioactivity meter memory or they can be transferred to a computer to be valued by means of a device included in the delivery (software and RS 232 data cable). If there are any questions about this radioactivity meter GAMMA - SCOUT, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our engineers and technicians will gladly advise you regarding the radioactivity meters or any other products in terms of regulation and control, or scales and balances of PCE Instruments.

  Information for the Radioactivity meter GAMMA - SCOUT ®  User manual for the Radioactivity meter GAMMA - SCOUT ®  EC certificate for the Radioactivity meter GAMMA - SCOUT ®  Video for the Radioactivity meter GAMMA - SCOUT ®  Radioactivity meter GAMMA - SCOUT ®: Further Images  Technical specifications for the Radioactivity meter GAMMA - SCOUT ®

Radioactivity meter GAMMA - SCOUT

- Accurate measuring instrument
(every radioactivity meter has a final control, this control is carried out in the Institute for the Rrotection against Radioactivity and  inspected by a State Technical School with a control certification)
- Types of radiations
(the meter measures Alpha, Beta and Gamma radiations)
- Duration
(this meter can measures radiation during the day and night / it is not necessary to switch on/off the the instrument / battery does not need to be changed for 10 years)

- Data Memory
- Data can be valued in a PC
(the software included in the delivery allows data to be transferred to a computer to be valued)
- Certification
(GAMMA - SCOUT ® security is controlled by the TÜV and it meets the CE standards and the American standards FCC-15 / it can be also used in planes)
- Version (GS2)
(meter GAMMA-SCOUT® w / ALERT produces an acoustic signal if the radiation exceeds the limit value)

- Large Display

Physical Principles:
What is radioactivity?
Antoine-Henri Becquerel discovered in the 19th century, that atomic units of uranium eradiate spontaneously (i.e. without any external influence) invisible radiation.
For example the decay of radium under radiation. The instable nucleus of the radioactive radium isotope (consisting of 88 protons and 138 nucleoli) has a the constant attempt to obtain a more stable state. Thus the radium nucleus emits an alpha particle, that is equivalent to a helium core, consisting of two protons and two neutrons. This emission appears as alpha radiation.
Which unit is common for radiation protection?
We do not have any sensory organ to perceive radiation, so that a device is required to detect radiation, and measure its effect on the environment. Therefore a knowledge on radiation and its effects on the human body is required as well. Thus e.g. measuring only radioactivity is not enough to comprehend its biological effects and dangers. Further information you can find following the link from the German radiation protection committee SSK.

Examples of use

      The radioactivity meter Gamma-Scout is appropriate to measure natual radioactivity.           The Radioactivity meter GAMMA - SCOUT can be also used in researches.          Radioactivity meter GAMMA - SCOUT in the Nuclear Power Stations.

   The meter is used to measure                It is also used in                A common use of the meter
           natural radioactivity                            researche                     is in nuclear power stations

Software
The software is used to transfer radiation values which are recorded in the meter to a PC or a computer. Measuring data can also be transferred to other calculation programs such as Excel to be valued (see above the possibilities to download it)
.


                         Software Radioactivity Meter GAMMA SCOUT

Technical specifications

Measuring principle / Radiation detector

Geiger-Müller counting tube, auto shut-off, stainless steel case with halogen filler
- measurement length = 38.1 mm
- measurement diameter  = 9.1 mm
- window  = 1.5 ... 2.5 mg/m²

Radiation types

- Alpha radiation from 4 MeV
- Beta radiation from 0.2 MeV
- Gamma radiation from 0.02 MeV

Selection of the diaphragm

- Alpha + Beta + Gamma (without diaphragm)
  Beta + Gamma ( (approx 0.1 mm) alpha is totally protected)
- Gamma (display Al (approx 3 mm) alpha and beta radiation are totally protected approx. 2 MeV, it attenuates Gamma under 7 %)

Gamma Sensibility

95.0 impulses / min for radiation Co60

Null quota

< 10 impulses / min
with protection 3 mm Al y 50 mm Pb

Measurement ranges

0.01 µSv / h - 1,000 µSv / h

Measurement of the impulses

1 ... 99 s, 1 ... 99 min, 1 ... 99 h,
mean value 24 h in µSv / h

Internal recording of the impulses

intervals to be selected. every 1 min, 10 min, 1 hour, 1 day y 7 days

Storage capacity of the internal memory

2 KB

Software / data cable

yes, in the delivery

Power

internal battery

Consumption

under 10 micro-amp on average

Duration

more than 117,000 h x 20 impulses / min
(approx. 10 years)

Display

LCD display with 4 positions, numeric, with quasi-logarithmic denomination and representation and indication of functions.

Housing

Novodur plastic, shock resistant

Dimensions

161 x 72 x 30 mm

Weight

153 g

Certification

yes, in the delivery a quality certification is included for every numbered meter.

Standard

- European standard CE
- USA standard FFC15

Delivery contents
1 x radioactivity meter (GS1 model or GS2 model with acoustic signal), software, 1 x data cable, 1 x battery and user's manual.

Additional
- Bag for the belt

Go to radioactivity meter Gamma - Scout return to homepage
