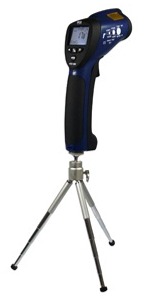

PCE-890 infrared thermometer to
measure temperatures up to
1600°C
|
|
The PCE-890 infrared thermometer is both ergonomic and
easy carry. This infrared thermometer is for professionals
and has a range of up to 1600°C when measuring surface
temperature without contact. Has a ratio between distance
and measurement point of 50:1
allowing for the measurement of small objects at large
distances, with a measurement point of 40mm at a distance of
2m.
The infrared thermometer can be used in poor conditions. The backlit display is clear and easy to read. The
emissivity level can be adjusted between 0.10
and 1.00, allowing for different surface properties. High and
low alarm levels can be set for measuring within specific
temperature limits. An ISO calibration certificate can be
ordered seperately for this infrared thermometer.
|
-
Highly accurate
-
Shows both °C and °F
-
Auto
shut-off and backlit display -
Programmable high and low alarm limits
-
Data Hold function -
Good optical resolution of 50:1
-
Includes mounting bracket, battery, carrying case and user's
manual

Bracket for mounting the device |
 PCE-890 infrared thermometer View
or print the user's manual
|
|
Technical specifications
|
|
Temperature range |
-50 to 1600°C |
| Resolution |
0.1°C |
|
Accuracy |
up to 200°C: ±1.5% of readng ±2°C
up to 538°C:
±2.0% of reading ±2°C
up to 1300°C: ±3.5% of reading
±5°C
above 1300°C: ±3.8% of reading ±5°C |
|
Response time |
< 1 second |
|
Optical resolution |
50:1 |
|
Emissivity |
0.10 to 1.00 (adjustable) |
|
Laser |
single point |
|
Minimum, maximum, average and differential temperatures |
yes |
|
Timed measurement intervals |
yes |
|
Alarm (high / low) |
yes |
|
Display |
backlit LCD |
|
Operating temperature |
0 to 50°C |
|
Power |
9V battery |
| Dimensions |
230 x 100 x 56mm |
|
Weight |
290g |
|
Contents
|
|
PCE-890 infrared thermometer, mounting bracket, battery,
carrying case and user's manual |
 |
|
Optional accessories
|
|
- ISO calibration certificate
For companies who
wish to incorporate this infrared thermometer as one of
their internal testing tools or for performing an annual
recalibration. This includes a laboratory cali-bration, a
control document with the calibration data and an ISO
certificate, which will contain company details. |
 |
 |
 |
|
