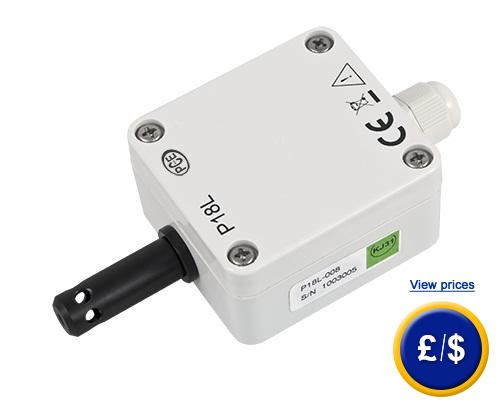

PCE-P18L temperature transducer
converts temperature or humidity into 4 ... 20 mA signal / highly accurate device powered by power supply loop / wall-mounted

The PCE-P18L temperature transducer is designed for the continuous control of both temperature and humidity. Its compact dimensions make the PCE-P18L temperature transducer an important device. Both temperature and humidity measurements are performed through a semiconductor element. The PCE-P18L temperature transducer internally converts the measured physical quantity into 4 ... 20 mA normalized signal. The PCE-P18L temperature transducer is powered by means of a direct voltage power supply loop, so it can be used together with digital indicators powered by a transmitter. The PCE-P18L temperature transducer can also be connected to display systems for a continuous control. The PCE-P18L  temperature transducer is wall-mounted by means of two screws and can be used immediately. At the following link you will find the temperature transducer that best suits your needs.

PCE-P18L temperature transducer

View or print user manual of the PCE-P18L temperature transducer
View or print user manual of the PCE-P18L temperature transducer

- Humidity and temperature sensor
- 4 ... 20 mA output
- Wall-mounted

- Suitable for continuous control
- Different filters are available
- Small dimensions

Technical specifications
Humidity
Measurement Range 0 ... 100% r.H.
Accuracy ±2 % (range 10% ... 90% r.H.)
±3 % (remaining range)
Hysteresis ±1 % r.H.
Temperature
Measurement Range -20 ... +60 ºC
Accuracy ±0.5% of the measurement range
Thermal influence ±25%/10 ºC
Output
Current

4 ... 20 mA
Maximum output resistance ≤ 500 Ω
Power supply voltage 19 ... 30 V DC
Power < 1.5 W
Settings of the output signal by means of DIP switch
Ambient temperature -30 ... +85 ºC
Max. relative humidity ≤ 95% r.H.
Warning-up time 15 minutes
Protection IP 65
Mounting Wall-mounted
Dimensions 35 x 58 x 118 mm
Delivery content
1 x PCE-P18L temperature transducer
and user manual
Optional accessories of the PCE-P18L temperature transducer
Membrane filter Membrane filter
Laminated plastic case with PTFE
Pore size: 1 µm
Temperature: max. 80 ºC
Response time up to T90: 15 s
For areas with light soils
PTFE filter PTFE filter
PTFE, sintered
Pore size: 50 µm
Temperature: max. 180 ºC
Response time up to T90: 14 s
For chemical applications
Sintered bronze filter Sintered bronze filter
Bronze, sintered
Pore size: 60 µm
Response time up to T90: 10 s
For a high degree of contamination, protection against mechanical destruction
technical specifications for the PCE-P18L temperature transducer. return to homepage
