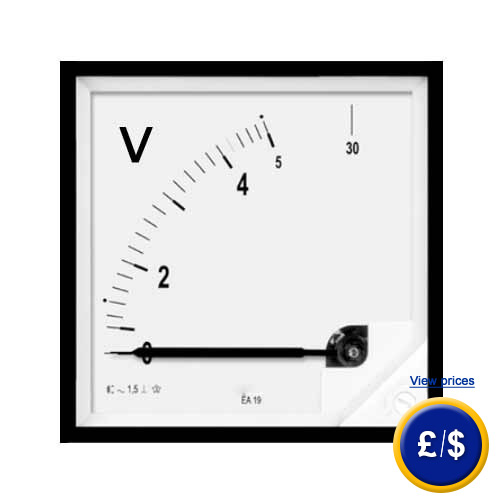

Moving Iron Ammeter PCE-EA19U
Moving iron ammeter to measure electric voltages / 96 x 96 mm / simple installation /
up to 1 kV directly / up to 250 kV via transformer / various installation angles

The moving iron ammeter PCE-EA19U is designed to measure electric voltages in a simple way. This moving iron ammeter is meant to be installed into control panels. The dimension of the moving iron ammeter is 96 x 96 mm. Thus the values are very clear to read at the moving iron ammeter. The moving iron ammeter can be customized regarding the different measuring and display ranges. The moving iron ammeter for AC voltages can measure up to 1000 V directly, whilst for voltages between 1001 and 250 kV a transformer for AC voltages is required. The moving iron ammeter is produced for measurement category CAT III and is approved for many tasks while monitoring voltages in areas of industrial process and control. The overload protection of the moving iron ammeter covers 100 % from the chosen scale. If there are any questions about this moving iron ammeter PCE-EA19U , please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703.. Our engineers and technicians will gladly advise you regarding the ammeters or any other products in terms of regulation and control, or scales and balances of PCE Instruments.

  Information for the Moving Iron Ammeter PCE-EA19U  User manual for the Moving Iron Ammeter PCE-EA19U  EC certificate for the Moving Iron Ammeter PCE-EA19U  Video for the Moving Iron Ammeter PCE-EA19U  Moving Iron Ammeter PCE-EA19U: Further Images  Technical specifications for the Moving Iron Ammeter PCE-EA19U

Moving Iron Ammeters PCE-EA19U

- Moving iron ammeter for voltage measurement
- 96 x 96 mm
- Panel installation

- Long life time
- Up to 1 kV directly measurable
- Individually configurable

General Technical Specifications of the Moving Iron Ammeter PCE-EA19U

Measuring range (for immediate voltage meter)

6 V, 10 V, 25 V, 40 V, 60 V, 100 V, 150 V,
250 V, 400 V, 500 V, 600 V, 800 V, 1000 V

Measuring range (for measurement by transformer)

4 kV, 8 kV, 20 kV, 150 kV 250 kV, 400 kV

Accuracy class

1.5

Frequency of measuring signal

45 ... 65 Hz

Maximum operating voltage (P-N)

600 V

Measurement category

CAT III

Polluting grade

2

Overload

100 % of chosen measuring range

Front panel size

92 x 92 mm

Overall Size

96 x 96 x 45 mm

Scale length

95 mm

Weight

250 g

Electrical connection

screw clamps

IP code

IP 50

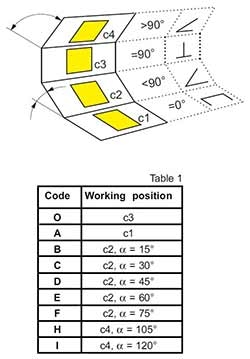

Installation Positions

Moving Iron Ammeter Installation positions

Delivery content of the Moving Iron Ammeter PCE-EA19U

1 x moving iron ammeter PCE-EA19U, 2 x montage screws, 1 x instruction manual

Moving Iron Ammeter PCE-EA19U

Moving Iron Ammeter PCE-EA19U: return to homepage

Similar products to the Moving Iron Ammeter  PCE-EA19U:

- Moving Iron Ammeter PCE-EA19I
  (similar to moving iron ammeter PCE-EA19U, but to measure electric current)

Moving Iron Ammeter PCE-EA19I

- Moving Iron Ammeter PCE-PA39
  (for performance measurement up to 1000 MW, 96 x 96 mm front))

Moving Iron Ammeter PCE-PA39
