pH Meter (desktop) - PCE BPH 1
 pH Meter for desktop with ATC / parameters adjustment between pH and mV / max functions / memory for 99 values / stable reading indicator

The pH meter (desktop) PCE-BPH 1 is simple, robust and affordable. This pH meter (desktop) PCE-BPH 1 is designed for reliable measurements in laboratories. Automatic Temperature Compensation (ATC) will greatly facilitate work with the pH meter (desktop) PCE-BPH 1. The necessity to determine the temperature with a second meter and to include the details manually  is no longer needed. Thanks to the measurement electrode holder, measuring with the pH meter (desktop) PCE-BPH 1 is very easy. The little drawer for files or notes located under the pH meter (desktop) PCE-BPH 1 is very useful so you do not miss any important and relevant documentation. The pH meter (desktop) PCE-BPH 1 also includes standards for pH meter calibration  to prevent deterioration of the physical qualities, such as pH electrodes deviation. The offset mode allows you to move the parametric curve to 60 mV, up or down to prevent wear on the electrode of the pH meter (desktop). Most meters only allow you to adjust to 30mV. If you have questions about the pH meter, see the technical data  below or contact us. Our engineers and technicians will advice you on the pH meter, and of course, on the other products in the field of regulation and control, measuring instruments and scales or balances.

User manual for the pH Meter (desktop) - PCE BPH 1  EC certificate for the pH Meter (desktop) - PCE BPH 1  Video for the pH Meter (desktop) - PCE BPH 1  Technical specifications for the pH Meter (desktop) - PCE BPH 1  Information for the pH Meter (desktop) - PCE BPH 1

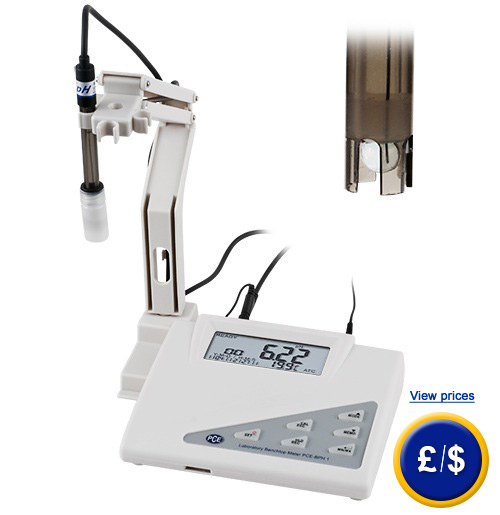

pH Meter (desktop) designed for reliable measurements in laboratories.

- Simple handling

- Ergonomic keyboard

- Excellent relation quality / price

- Automatic temperature compensation

- Stability reading indicator

- Analog output

- Software included in delivery

- 5 point pH calibration

- Modern design

- Big Screen

- Features Max., min. and HOLD

- "READY" display  for stable reading

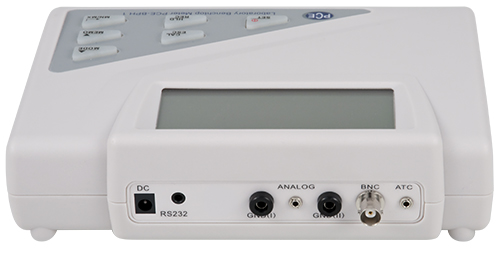

pH Meter (desktop) - PCE BPH 1 back.

Technical specifications

Measurement ranges 0.00 ...14.00 pH
-1.999 mV ... +1.999 mV
Resolution 0.01 pH
0.1 mV (-199.9 mV ... +199.9 mV),
over 1 mV
Accuracy (@ 20°C) ±0.02 pH
±0.2 mV (-199.9 mV...+199.9 mV)
over ±2 m
Manual and automatic temperature compensation (ATC and MTC)

yes, from 0 ... +80 °C

Adjusting the temperature coefficient

yes, from 0 % / °C ... 10 % /°C

Temperature unit

adjustable ºC or ºF

Calibration max. 5 points
programmed calibration points
Offset-alarm ±60 mV

Electrode

pH plastic electrode , 50 cm cable and BNC plug

Powered

9 V battery

Operating conditions

5 ... 40 °C max. 95 % R.H..

Dimensions (without electrode holder)

217 x 168 x 58 mm

Weight (without electrode holder)

137 g

pH Meter (desktop) use.

pH Meter (desktop) use.

Delivery contents
1 x desktop pH meter,

1 x electrode,

1 x electrode holder,

1 x 9 V DC adapter,

1 x software with data cable,

1 x user´s manual.

pH Meter (desktop) Delivery contents.

Additional components

- Calibration set for the pH value (pH 4 & 7)
- Cleaning Solution
- Preservation solution
- Spare pH electrode

Technical specifications for the pH Meter (desktop) - PCE BPH 1. return to homepage
