Force Meter PCE-FB series
Force Meter to determine tensile force and compressive force / internal data storage /
Mini SD memory card / graphic display / threshold measurement / PEAK function /
software included

This precise force meter is designed to measure tensile and compressive forces and there are two different models purchasable. Depending on the measuring range, the force meter for tensile and compressive force is equipped with an internal or external dynamometric cell. The force meter for tensile and compressive force is a portable precise force meter, providing also the option to integrate it into test benches. For force measurement above 500 N the force meter for tensile and compressive force features an external dynamometric cell attached to a 3 m cable, which can be also mounted into a test bench. The force meter features two measuring speeds, 10 Hz and 40 Hz, that can be set. Those allow very precise real-time records of tensile and compressive force. The force meter for tensile and compressive force provides the option to store manually or automatically the collected data at an internal data storage on a Mini SD memory card or straight to a computer, in order to evaluate them later on. To rate the measurement of the tensile and compressive force, the force meter provides the option of an integrated statistical evaluation. Therefore the relevant information such as number of measurements, total force, mean force, max., min. and individual value and are illustrated in a histogram as well as diagram. In case that you should have more questions regarding the Force Meter PCE-FB series, please read the following technical data, use our contact form or call us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding the Force Meters or all other products in the field of Control Systems, Laboratory Equipment, Measuring Instruments or Scales and Balances of PCE Instruments Ltd.

 Photometer User's manual for the Force Meter PCE-FB series Force Meter PCE-FB series Video of the Force Meter PCE-FB series More pictures of the Photometer Technical specifications  for the Force Meter PCE-FB series

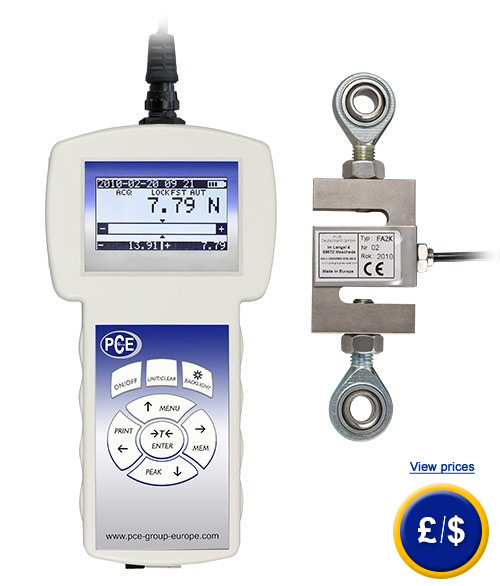

Force Meter for tensile and compressive force PCE-FB series

- Force meter for tensile and compressive force
- Measuring range up to 150 kN (150,000 N)
- Max. 0.1 % fault tolerance of measuring range
- High measurement rate eligible (10 Hz/ 40 Hz)
- Internal data storage and Mini SD memory card
- Automatic and manually performed data storing
- PEAK function (MIN/MAX)
- Threshold function / data match

- Statistical evaluation in graphics
- Graphic display with automatic justification
- Menu navigation: German, English, Spanish
- Incl. computer software for evaluation
- USB and RS-232 interface
- Max. overload 20 %
- Adapter and battery operation (switchable)
- Calibration with external weights performable

Force Meter PCE- FB series for tensile and compressive force internal measurement
Force meter for tensile and compressive force with dynamometric cells of PCE- FB series

Force Meter PCE- FB series for tensile and compressive force external measurement
Force meter PCE-FB series for tensile/ compressive force: external dynamometric cell

Technical specifications:

Force Meters with internal dynamometric cell

Measuring range / resolution

PCE-FB 50 50 N (5 kg) / 0.01 N (1 g)

PCE-FB 200

200 N (20 kg)  /  0.05 N (5 g)

PCE-FB 500

500 N (50 kg)  /  0.10 N (10 g)

Force Meters with external dynamometric cell

Measuring range / resolution

PCE-FB 1K

1,000 N (100 kg)  /  0.2 N ( 20 g)

PCE-FB 2K

2,000 N (200 kg)  /  0.5 N ( 50 g)

PCE-FB 10K

10,000 N (1,000 kg)  /  2 N (200 g)

PCE-FB 50K

50,000 N (5,000 kg)  /  10 N ( 1 kg)

PCE-FB 100K

100,000 N (10,000 kg)  /  20 N ( 2 kg)

PCE-FB 150K

150,000 N (15,000 kg)  /  50 N ( 5 kg)

Uncertainty in measurement

±0.1 % of measurement range

Gravity zone

manually adjustable or per GPS data

Measurand

N, g, lb, oz, kg, kgf, lbf, ozf

Calibration

with external F2 weights

Max. overload

+/- 20 % above measuring range

Sampling rate

10 samples / sec. or 40 samples / sec.

Measurement function

Compressive and tensile force measurement / PEAK function (MIN- MAX Hold)/ threshold measurement/ real-time measurement with software

Display

Graphic- Display 61 x 34 mm / automatic Display adjustment / background lights

Menu navigation

multilingual: German, English, Spanish

Data storage facilities

internal storage and Mini SD memory card (Internal storage limited to a max. of 6,400 measurements)

Data storage

manually- by key press
automatically- 0.025 s - 99.9 sec. (adjustable)

Interface

serial RS-232, 9-pole and USB

Software

incl. software to evaluate and control

Surrounding conditions

- 10 °C ... +40 °C

Power Supply

4x Ni-MH 2700 mAh AA batteries (replaceable) or via Adapter ~230 V/12 V; 1.2 A incl.
auto OFF function option

Battery life time

approx. 20 hrs. (without background lights approx. 45 hrs.)

Dimensions

210 x 110 x 40 mm

Internal measuring cell: part for force input

11 mm long, M6 x 9 mm winding

Cable length of external dynamometric cell

approx. 3 m

Weight without dynamometric cell

approx. 400 g (without the dynamometric cell)

Display indication
Force Meter PCE-FB series: display overview
Force Meter PCE-FB series: information on battery sate, sampling rate, force, min, max
Force Meter PCE-FB series: overview
Force Meter: Evaluation and storage in diagram form with option to see individual measuring data

Frequency distribution of the PCE-FB series force meter.
Force Meter PCE-FB series: statistics overview
8-position memory which can be individually identified, 800 measurements.
Software

Software of the PCE-FB series force meter

The PCE-FB series force meter for tensile and compressive force will be delivered including this software. It allows reading the force meter and controlling it. The performed test measurement with this force meter shows a tensile and compressive force with preset thresholds. Underneath there is a statistical evaluation of the collected data shown, such as min, max, mean value etc. and the settings of the force meter are displayed as well.

Force meter PCE-FB series integrated cell
Force Meter PCE-FB series: with integrated cell to measure tensile and compressive force

Force Meter PCE-FB series application
PCE-FB series  precision force meter with external dynamometric cell for tensile and compressive force

PCE-FB series Force meter backside
Back of force meter PCE-FB series with internal cell: battery compartment and 4-point-probes input

Force Meter PCE-FB series inputs
Force meter PCE-FB series for tensile and compressive force

Delivery content:

PCE-FB series with internal cell
1 x force meter for tensile and compressive force depending on picked model, 1 x chisel-shaped adapter, 1 x pan head adapter, 1 x pointed adapter, 1 x hook adapter, 1 x ball-type head adpater, 1 x connecting bar (90 mm), 1 x evaluation and control software incl. RS-232 data cable, 1 x adapter, 1 x carry bag

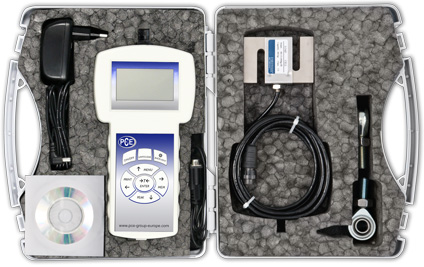

Force Meter PCE-FB series delivery1

PCE-FB series with external cell
1 x force meter for tensile and compressive force depending on picked model, 1 x dynamometric cell incl. eye bolt, 1 x adapter, 1 x evaluation and control software incl. RS-232 data cable, 1 x adapter, 2 x carry bag

ATTENTION: External dynomometric cells above 100 kN are delivered excluding eye bolt.

Force Meter PCE-FB series delivery2

Additional Equipment

Optional accessories
- ISO calibration certificate
For companies that wish to incorporate the device into their internal quality control tools or for annual recalibrations. The ISO certificate includes a calibration and a document containing all the readings.

PCE-FB series force meter: ISO calibration certificate.

- RS-232-USB-Adapter
In case your PC or Portable uses USB-Interfaces, you can use the adaptor in connection with the standard RS-232 cable. A small software (covering all the actual drivers) is included.

 PCE-FB series: RS-232-USB adaptor.

- Printer
Measured results can be recorded or printed as a report. In such report, data, time and the measurement description are included.

 PCE-FB series force meter: printer

- Test position and adapter plates
As our test positions are designed to be used with different force meter models, adapter plates are required to ensure that the force meter is fixed to the test position.

 PCE-FB series force meter: adapter plates

- Test bench
The force meter can be combined with any of the three test benches we have available. Two test positions are equipped with a crank and other one has a motor. The effective use of the test position is in daily testing of materials in a laboratory and to maintain the same conditions, eliminating the possibility of human error.

The technical specifications for the different positions are available at this link: Test benches.

Descriptions of test positions can be found within the corresponding on-line category: force meters.

 PCE-FB series force meter: test positions
technical specifications for the PCE-FB series force meter. return to homepage
