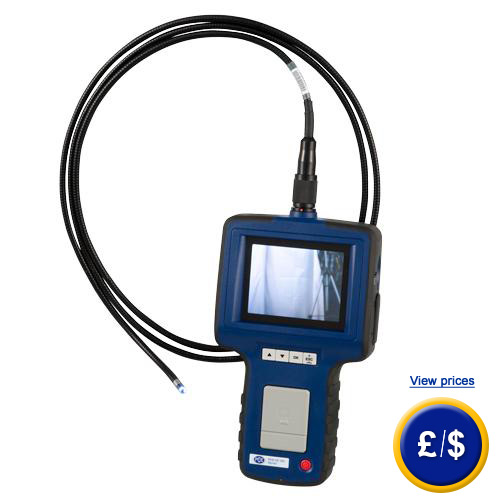

PCE-VE 3xxN Video Endoscope
Video Endoscope for industrial use in situ /diameter of 5.5 mm / 512 MB memory card /
 to inspect machine components, and for research and development / data cable /
cable length of 2000 mm

The PCE-VE 3xxN Video Endoscope is an ideal tool for professionals, maintenance technicians and in development. The video endoscope allows a visualization of the interior of machines and installations without the need to dismantle them, to capture images and video sequences of moving components, save them to memory and later transfer these to a computer. This video endoscope is ideal for maintenance and repair in manufacturing or repair shops.

Never before has it been so easy to optically analyze with a video endoscope. The 5.5 mm diameter flexible cable is designed for access to small spaces. You can chose the cable length from 1, 2 or 10 meter. It's easy to use, simply insert the cable into a cavity and you will see an image on the display of what's inside. Then you can record a video sequence or image and save it on the device's data memory. If necessary, these images can be transferred to a computer for further analysis or sent to other people that might require the images for their work. Thanks to its flexible guide, lightweight design and high quality optics, problematic areas can be detected easily and quickly with this video endoscope. This will allow for preventative measures to be taken without having to dismantle the machine first. We do also offer a lot of other video endoscopes in our assortment.

In case that you should have more questions regarding the PCE-VE 3xxN Video Endoscope, please read the following technical data, use our contact form or call us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding the endoscope or all other products in the field of Control Systems, Laboratory Equipment, Measuring Instruments or Scales and Balances of PCE Instruments Ltd.

Technical Specifications for the PCE-VE 3xxN Video Endoscope  User's manual for the PCE-VE 3xxN Video Endoscope

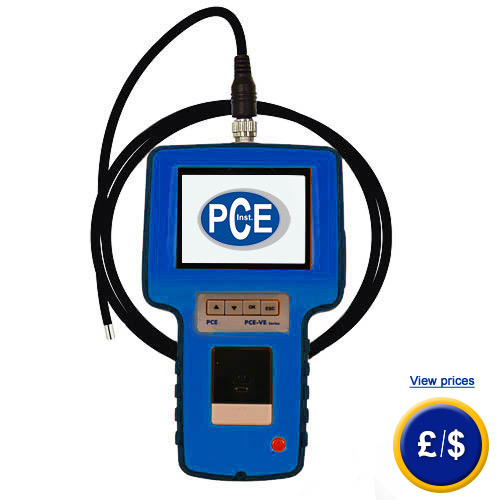

PCE-VE 3xxN Video Endoscope

- LED lights
- Three mirrors with 70°, 90° and 110°
- Robust carry case
- Further camera cables optional

- Cable length 1m, 2m or 10m (per model)
- Cable diameter 5.5 mm
- Data memory for images and videos
- 2 GB data memory included

Video endoscope in use


The PCE-VE 3xxN Video Endoscope in use

PCE-VE 3xxN Video Endoscope in use.

PCE-VE 3xxN Video Endoscope in use.

PCE-VE 3xxN Video Endoscope in use.

PCE-VE 3xxN Video Endoscope in use.

Technical specifications of the PCE-VE 3xxN Video Endoscope

Cable length of Video Endoscopes

PCE-VE 320N

1,000 mm

PCE-VE 330N

2,000 mm

PCE-VE 340N

10,000 mm

Cable type

PCE-VE 320N

semi-flexible (semi-rigid spiral)

PCE-VE 330N

semi-flexible (semi-rigid spiral)

PCE-VE 340N

flexible

Image sensor

CMOS

Resolution / image sensor (dynamic / static)

320 x 240 / 640 x 480

Image frequency

30 / s

Exposure

automatic

White scale

fixed

Field of view

67 °

Attachable mirrors

35° / 45° / 55°

Visible distance

1.5 ... 10 cm

Ilumination

4 LED

Cable diameter

5.5 mm

Radial curvature

90 mm

Display

3.5" TFT

Port

Mini-USB 1.1 (V out / AV in)

Memory

4 GB memory card SD

Data storing format

image and video

Compression format

MPEG4

Image format

JPEG (640 x 480)

Video output format

NTSC & PAL

Video format

ASF (320 x 240)

Menu language

German, English, Spanish, Portuguese, French, Italian, Danish, Chinese, Russian, Dutch, Japanese, Polish, Bulgarian

Operating / Storage temperature

0 ... +60ºC

Power

rechargeable 3.7 V Lithium-Ion battery

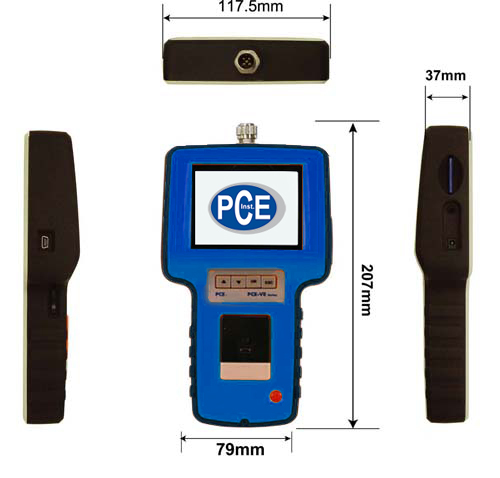

Size

207 mm x 118 mm (79 mm) x 37 m

Weight with carrying case

450 g

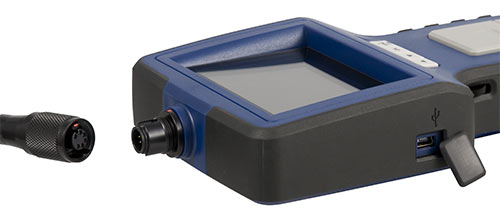

Port of the PCE-VE 3xxN Video Endoscope


 Port of the PCE-VE 3xxN Video Endoscope

Delivery content of the PCE-VE 3xxN Video Endoscope

1 x PCE-VE 3xxN video endosope, 1 x 2 GB memory card, 1 x USB cable,
1 x aluminum carrying case, 1 x charger, 3 x mirrors (35° / 45° / 55°), user's manual
Please note: Not to be used for medical applications!

GB-15-PCE-VE-N

Guide weight for series PCE-VE-NØ 15 mm, only for video endoscope with cable Ø 5.5 mm

Guide weight Ø 15 mm for the PCE-VE 3xxN Video Endoscope.

GB-25-PCE-VE-N

Guide weight for series PCE-VE-NØ 25 mm only for video endoscope with cable Ø 5.5 mm

Guide weight for series PCE-VE-NØ 25 mm for the PCE-VE 3xxN Video Endoscope.

MAG-H-VE-N

2 in 1 hook and magnet for series PCE-VE-N
(5,5 mm)

2 in 1 hook and magnet for the PCE-VE 3xxN Video Endoscope.

SOFT-M-VE-N

Measurement software for series PCE-VE-N video endoscope (only for 5.5 mm probes)

Measurement software for the PCE-VE 3xxN Video Endoscope.

PCE-VE-N-SCS

1 m semiflexible probe, Ø 3.9 mm, for series PCE-VE-N video endoscope

1 m semiflexible probe, Ø 3,9 mm for the PCE-VE 3xxN Video Endoscope.

PCE-VE-2in1-N

2 in 1: 1m semi flexible probe, Ø 4.9 mm, with front and side camera, for series PCE-VE-N video endoscope

2 in 1: 1m semiflexible probe, Ø 4,9 mm for the PCE-VE 3xxN Video Endoscope.

RM-39-PCE-VE

Mirror sheath for 3.9 mm probe Series PCE-VE-N
90 º mirror / rotary in 360 º / length: 15 cm

Mirror sheath 3.9 mm / 90 º mirror / rotary in 360 º / length: 15 cm for the PCE-VE 3xxN Video Endoscope.

PCE-VE-N-SC1

Probe for PCE-VE N video endoscope Probe for 1 m / Ø 5.5mm / semi flexible

Probe 1 m / Ø 5.5mm / semiflexible for the PCE-VE 3xxN Video Endoscope.

PCE-VE-N-SC2

Probe for PCE-VE N video endoscope Probe for 2 m / Ø 5.5mm / semiflexible

Probe 2 m / Ø 5.5 mm / semiflexible for the PCE-VE 3xxN Video Endoscope.

PCE-VE-N-SC10

Probe 10 m / Ø 5.5 mm / fleixble for the PCE-VE 3xxN Video Endoscope.

Probe 10 m / Ø 5,5 mm / fleixble for the PCE-VE 3xxN Video Endoscope.

PCE-VE-2W1-N

Rotary probe 1 m / Ø 6 mm / flexible for the PCE-VE 3xxN Video Endoscope.

Rotary probe 1 m / Ø 6 mm / flexible for the PCE-VE 3xxN Video Endoscope.

HT-55-PCE-VE

Support for video endoscope probe series PCI-VEN length: 60 cm / Ø 8 mm / with handle.

Support  60 cm / Ø 8 mm / with handle for the PCE-VE 3xxN Video Endoscope.
