Gas Detector MX6 iBRID (H2S, O2, CO2, LEL)
Das detector for universal use for the protection of people that simultaneously measures up to 6 gases, with memory and optional software / for the measurement of carbon dioxide, sulfur hydrogen, inflammable gases and oxygen

The gas detector MX6 iBRID is a portable detector that measures H2S, O2, CO2, LEL, etc. It was developed to take measurements for example in garbage dumps, factories, canalisations, culverts, in residual water channels, petroliferous platforms, in boats and any place in which an elevated risk of explosion exists. The gas detector graphical colour screen LCD offers an automatic backlight and allows reading in poor light conditions. The current measurement values, as well as the measurement  values registered in the memory can be displayed as a graph on the colour screen. This allows the portable gas detector to quickly allocate the oscillations of concentration of detected gases to the time flow of the measurement period. The alarm is audible (95 dB) and visible (the screen and the LED in the superior part of the equipment will flash). In addition, the colour of the letters in the screen changes to red. In the internal memory of the portable gas detector, all the measured values and warnings are saved every minute. The size of the memory is big enough to be able to retain the data of one year. Through an optional charger with a data transmission function you can transfer data from the memory of the portable gas detector to your PC for a later evaluation. The portable gas detector MX6 iBRID can be equipped with 25 different gas sensors of which maximum 6 sensors can work simultaneously. The optional electrical pump for the portable gas detector allows you to assess any dangerous gases that might be in enclosed spaces before entering. The suction power of the pump allows you to draw in gases using a tube of up to 30 m. There are multiple warning pilots in the superior part of the detector that function as visible alarms. All the measurements and the warnings can be gathered in the memory of 525,600 values for their later transmission to a PC by means of the interface (and software that you can acquire optionally upon request). In addition to the acoustic and visual alarm (flashing pilot), the gas detector reproduces a text warning for each channel when an alarm threshold is surpassed. We have another gas detector with an acoustic alarm which only detects one type of gas. If you are interested in a detector which can simultaneously measure different types of gases, click on the following link to see the Tetra, Triple Plus and Triple Extra. At this link you will find a general overview of different gas meters.

View or print the user manual of the Gas Detector MX6 iBRID   CE certificate Gas Detector MX6 iBRID   View the Gas Detector MX6 iBRID  Software for the Gas Detector MX6 iBRID  View technical data of the Gas Detector MX6 iBRID  Information about the Gas Detector MX6 iBRID

Gas detector MX6 iBRID (H2S, O2, CO2, LEL).

 - Acoustic alarm (95 dB)

 - Visual alarm (screen and two flashing LEDs)

 - Vibration alarm

 - Operation by diffusion or with pump

 - Stainless steel housing and ABS rubber            coated resistant to shocks

 - Graphic colour LCD

 - Can be used in Ex environments

 - 25 different available sensors

 - Detects 6 gases simultaneously, for example     oxygen, carbon dioxide, sulfur hidrogen (H2S,     O2, CO2 and LEL) etc

 - IP 65/67 protection against dust and water

 - Datalogger function

 - Internal calibration through the front keyboard

 - Automatic configuration through the optional       base station DS2 optional

Gas Detector MX6 iBRID (H2S, O2, CO2, LEL)

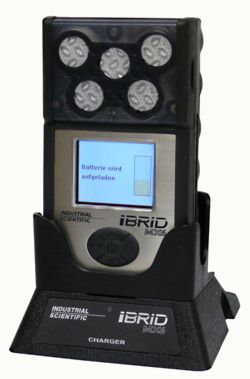

Multiple gas detection MX6 iBRID for up to six gases (H2S, O2, CO2, LEL) with base station

Technical specifications  (25 available sensors )
Typical measurement ranges and alarm set ups
Parameter/gas Symbol Range Resolution
Inflammables gases LEL (catalytic) 0 ... 100 % LIE (LEL) 1 %
Inflammables gases LEL (infrared) 0 ... 100 % LIE (LEL) 1 %
Methane CH4 (catalytic) 0 ... 5 vol. % 0.1 %
Methane CH4 (infrared) 0 ... 100 vol. % 1 %
Oxygen O2 0 ... 30 vol. % 0.1 %
Carbon dioxide CO 0 ... 1000 ppm 1 ppm
Carbon dioxide CO 0 ... 9,999 ppm 1 ppm
Hydrogen sulfide H2S 0 ... 500 ppm 0,1 ppm
Carbon monoxide/Hydrogen sulfide** CO/H2S (COSH) (CO) 0 ... 500 ppm
(H2S) 0 ... 200 ppm
(CO) 1 ppm
(H2S) 0.1 ppm
Hydrogen H2 0 ... 1000 ppm 1 ppm
Nitrogen monoxide NO 0 ... 1000 ppm 1 ppm
Chlorine Cl2 0 ... 100 ppm 0.1 ppm
Nitrogen dioxide NO2 0 ... 100 ppm 0.1 ppm
Sulphur dioxide SO2  0 ... 100 ppm 0.1 ppm
Hydrogen cyanide HCN 0 ... 30 ppm 0.1 ppm
Hydrochlorate acid HCl 0 ... 30 ppm 0.1 ppm
Ammonia NH3 0 ... 100 ppm 1 ppm
Chlorine dioxide CIO2 0 ... 1 ppm 0.01 ppm
Phosphine PH3 0 ... 5 ppm 0.01 ppm
Phosphine PH3 0 ... 1000 ppm 1 ppm
Carbon dioxide CO2 0 ... 5 vol. % 0,01 %
VOC (general) PID 0 ... 2000 ppm 0.1 ppm
** Combined sensor
Acoustic alarm - 95 dB (A) to 1 m distance,
- Control acoustic level (this function can be          disabled)
Visual alarm - Flashing LEDs
- Flashing display
- The colour of letters changes into red
Vibration alarm - The gas detector vibrates too
Display - Colour and graphic LCD
Memory - Memory of measurement values taken every        minute
- Registration of all alarms, etc.
- Min.365 days
Power - Lithium accumulator (Li-Ion) (24 h)
- Lithium accumulator  (Li-Ion) (life extended to      36 hours)
- AA alkaline batteries (10.5 hours)
Housing IP 65/67
Dimensions 135 x 77 x 43 mm (height x width x depth)
Diffusion version
Weight 409 g
Environmental conditions -20 ºC ... 55 ºC
15 % ... 95 % R.H. non condensed
Standards/norms EN 60079-0:2004, EN 50020:2002
EN 50018:2000, EN 60529:1991
Approval IECEx/ATEX:
- Safety Related System: EEx ia d IIC T4
  Group equipment category: II 2 G
UL:
- Class I, groups A, B, C, D T4; AEx ia d IIC T4
CSA:
- Class I, groups A, B, C, D T4 (registered)
MSHA:
- CFR30, section 18 and 22, safe for methane/mixtures (registered)
Interface for PC Infrared
Values can be read with the optional accessory Datalink or by means of the charger with the data transmission function
Maintenance and recalibration

The calibration of the apparatus can be made regularly by means of the automatic function of calibration or from the  PC with the Windows compatible software.
You can also send the gas meter to us (according to the internal ISO manual  of the company) for its maintenance and recalibration (i.e. 1 or 2 times  a year). The gas meter will be disassembled, cleaned and recalibrated.
We will inform you if the sensor can not be recalibrated or if its operation life has already ended. You will be able to find replacement sensors in our online shop.

This portable gas detector is authorised according to ATEX standards.
Sign of ATEX standardThis means that the ATEX product directive (also known unofficially as “ATEX 95” due to the article 95 of the EC Treaty for the Free Traffic of Merchandise) of the European Parliament and the permanent Committee for the alignment of the legislations of the member states for protection gauges and systems for use in potentially explosive atmosphere fixes the norms for the introduction of products in the market that will be used in such atmospheres. In appendix II, the directive contains the basic standards of health and security that must be observed by the manufacturer and certified by an evaluation  procedure of conformity. Our gas detector fulfills all the present norms of the EU.

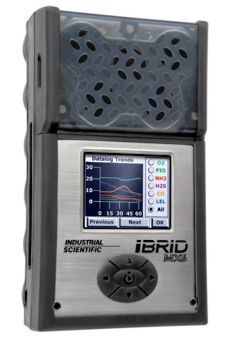

Graphic display of the gas detector MX6 iBRID
Graphic display of the portable gas detector MX6 iBRID

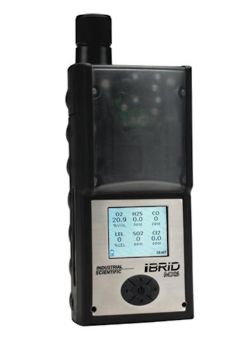

Vacuum pump screwed to the portable gas detector MX6 iBRID MX6 iBRID
Vacuum pump screwed to the portable gas detector MX6 iBRID

Delivery content:
1 x portable gas detector MX6 iBRID, 1 x universal charger, 1 x nylon  carrying bag, 1 x lead, 1 x calibration cap, 1 x maintenance tool, 1 x user manual, 1 x training CD, 1 x calibration tube, 1 x dust filter and water block , 1 x calibration connection and a test tube

Optional accessories
- Spare sensors upon request
- Support for the charger of vehicles (12 V, especially for fire brigades)
- Vacuum pump
- Optional components for the Datalink
- Charger with data transmission function
- Automatic calibration station DS2
- Semestral maintenance and calibration that includes the factory certificate.
 DS2 Base Station

The base station DS2 allows you to automatically calibrate the gas detector MX6 iBRID. The base station DS2 offers 3 connections for different calibration bottle sizes of individual or multiple gas. This allows calibration in only one step with different sensors. The PC saves and administer the data with which it creates the calibration protocols. Another great advantage is the DS2 base station offers connection to the Internet. It is possible to administer equipment placed in different locations from a central point using the Internet.

 Base station DS2 for the portable gas detector MX6

Gas detectorl MX6 iBRID measuring in a container
Gas detector MX6 iBRID measuring the inside of a container
Gas detector MX6 taking samples before going into a canalization
Gas detector MX6 taking samples before going into a canalisation
