Barometers
These barometers can be found in the section to measure absolute pressure, differential pressure in respect to  the atmosphere and negative pressure. There are barometers such as the DB2 digital barometers  that have an internal memory for up to 750 Barometers to measure absolute pressure, differential pressure in respect to the atmosphere and negative pressure. readings and an analogue output of 0 to 1 volts. These barometers are perfect to measure atmospheric pressure, also called barometric pressure, is an expression for the weight of air (atmosphere) due to the earth's gravitational pull. This pressure at sea level is 1013.25 mbars (milibars). Thermo-Hygro barometers are also known as climate meters. With these barometers, you can ascertain not only barometric pressure, but also temperature and humidity. AVM-4000 series barometers are multi-function devices for measuring pressure, temperature, humidity and wind speed. Before being used, the barometers and Thermo-Hygro barometers have to be adjusted to 1013 mbars which is equivalent to the air pressure at sea level. The display shows the actual value, depending on meteorological conditions and altitude, which determine atmospheric pressure. DB-2 series barometers has a second field of measurement.  This serves to measure negative pressure or over pressure with respect to the atmosphere. This allows for the digital barometers to be used as handmeters to measure negative pressure in a laboratory. If you don't find the barometers you are looking for, please contact us and we will help you find the best solution to suit your needs by calling our offices on: UK customers +44(0) 23 809 870 30 / US customers (561) 320-9162 and our technical staff will advise you regarding our measuring instruments.  Our engineers and technicians will be happy to help you with the barometers, and of course, with the other products in the field of regulation and control, and scales and balances.

Here you can see barometers from these companies:

Barometers from PCE InstrumentBarometers DB 3 from AirflowBarometers from KestrelBarometers PCE-MSR 145 from MSRBarometers from TFA DostmannBarometers from Meade InstrumentsBarometers from Spectrum

Technical specifications for our Barometers, or use the links below:

- PCE-Pxx series Barometers
  (Barometers with a measuring range from -137...+137 mbar or -344 to +344 mbar, RS-232, software)

Barometers with a measuring range from -137 to +137 mbar or -344 to +344 mbar, RS-232, software.Barometers from PCE Instrument

- DB 3 series Barometers
  (High accuracy barometers with HOLD function, average and maximum / minimum functions)

High accuracy Barometers with HOLD function, average and maximum / minimum functions.Barometers DB 3 from Airflow

- PCE-THB 38 Barometers
  (to measure temperature, humidity, atmospheric pressure and with memory)

Barometers to measure temperature, humidity, atmospheric pressure and with memory.Barometers from PCE Instrument

- PCE-THB 40 Barometers
  (to
ambient temperature, humidity and barometric pressure (max. 16 GB, SD card))

Barometers to ambient temperature, humidity and barometric pressure (max. 16 GB, SD card).Barometers from PCE Instrument

- PCE-MSR145 series Barometers
  (to measure temperature / humidity / pressure)

Barometers (temperature / humidity / pressure)Barometers PCE-MSR 145 from MSR

- PCE-ALM 1 Barometers
  (Multifunctional barometers with built-in compass, altimeter and date + time, mobile and robust)

Barometers with built-in altimeter and compassBarometers from PCE Instrument

- Barometers - Domatic beech
  (Analog indoor barometers (barometer, thermometer, hygrometer), natural beech)

Analog indoor Barometers (barometer, thermometer, hygrometer), natural beech.Barometers from TFA Dostmann

- Barometers - Domatic beech / aluminum
  (Analog indoor models (barometer, thermometer, hygrometer), beech and aluminum)

Analog indoor Barometers (barometer, thermometer, hygrometer), beech and aluminum.Barometers from TFA Dostmann

- Barometers - Domatic mahogany
  (Analog indoor barometers (barometer, thermometer, hygrometer), mahogany)

Analog indoor Barometers (barometer, thermometer, hygrometer), mahogany.Barometers from TFA Dostmann

- Barometers - Domatic beech / anthracite
  (Indoor analog, (barometer, thermometer, hygrometer) in anthracite / aluminum)

Indoor analog Barometers (barometer, thermometer, hygrometer) in anthracite / aluminum.Barometers from TFA Dostmann

- Barometers - Domati slate
  (Indoor analog barometers (barometer, thermometer, hygrometer), in slate)

Indoor analog Barometers (barometer, thermometer, hygrometer), in slate.Barometers from TFA Dostmann

- Barometers - Domatic aluminium
  (Indoor analog models (barometer, thermometer, hygrometer), anodized aluminum)

Indoor analog Barometers (barometer, thermometer, hygrometer), anodized aluminum.Barometers from TFA Dostmann

- Barometers - Domatic stainless steel
  (Indoor analog barometers (barometer, thermometer, hygrometer) stainless Steel)

Indoor analog Barometers (barometer, thermometer, hygrometer) Stainless Steel.Barometers from TFA Dostmann

- Barometers - Domatic wrought iron
  (Indoor analog models (barometer, thermometer, hygrometer), wrought iron)

Indoor analog Barometers (barometer, thermometer, hygrometer), wrought iron.Barometers from TFA Dostmann

- Barometers - Domatic outdoor
  (Outdoor analog stations (barometer, thermometer, hygrometer), aluminum)

Outdoor analog Barometers (barometer, thermometer, hygrometer), aluminum.Barometers from TFA Dostmann

- Barometers - Stainless steel solar outdoor
  (Outdoor analog stations (barometer, thermometer, hygrometer) stainless steel solar light)

Outdoor analog Barometers (barometer, thermometer, hygrometer) Stainless Steel.Barometers from TFA Dostmann

- Barometers - Steel outdoor
  (Outdoor analog stations (barometer, thermometer, hygrometer) stainless Steel)

Outdoor analog Barometers (barometer, thermometer, hygrometer) Stainless steel solar light.Barometers from TFA Dostmann

- Barometers - Opaque glass
  (Indoor analog models (barometer, thermometer, hygrometer), fiberglass)

Barometers for air speed, temperature, humidity, pressure, ectBarometers from TFA Dostmann

- Barometers - Cosmos
  (Indoor analog barometers, with function of barometer, thermometer, hygrometer)

Indoor analog Barometers with function of barometer, thermometer, hygrometer.Barometers from TFA Dostmann

- Barometers - Sputnik
  (Temperature, humidity, pluviometers, wind speed, logger, USB adapter, Software)

Barometers to measure temperature, humidity, pluviometers, wind speed, logger, USB adapter, Software.Barometers from TFA Dostmann

- Barometers - Smart
  (With weather forecasts and weather tendency indicator, time selection information in 5 languages)

Barometers with weather forecasts and weather tendency indicator, time selection information in 5 languages.Barometers from TFA Dostmann

- Barometers - Nexus
  (Wireless model up to 100 m, time alarm functions)

Wireless Barometers up to 100 m, time alarm functions.Barometers from TFA Dostmann

- Barometers - Primus
  (Barometers with solar wireless sensors up to 100 m, time alarm functions)

Barometers with solar wireless sensors up to 100 m, time alarm functions.Barometers from TFA Dostmann

- Barometers - 4CastPC
  (4 days forecast (METEOTEST), sensors, software of analysis)

4 days forecast with Barometers (METEOTEST), sensors, software of analysis.Barometers from Meade Instruments

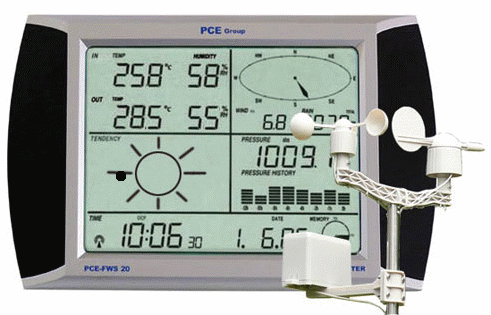

- PCE-FWS 20 Barometers Barometers for wind direction, wind speed, temperature, relative humidity and precipitation.
  (for wind direction, wind speed, temperature, humidity and precipitation)

Barometers for wind direction, wind speed, temperature, relative humidity and precipitation.Barometers from PCE Instrument

- Barometers for steady use
  (Pressure trransducers for monitoring equipment and standard signals production)

Barometers for steady use for monitoring equipment and standard signlas productionBarometers from PCE Instrument

Our barometers are digital devices and are specifically intended for use Calibration certificate for Barometers.in the industrial or labour sectors. They can be calibrated to meet ISO standards and can be used internally within ISO certified businesses. The certificate contains the information of the company that requests the ISO calibration. The ISO calibration can be ordered with the barometers or the barometer can be sent to us to be recalibrated to meet ISO standards. Generally, barometers are used in meteorology to forecast the weather and to determine if there is high or low pressure. Of course, our barometers can be used in this way, but they are primarily used to determine pressure in laboratories or warehouses.

Barometers
Barometers are instruments that determine the atmospheric pressure. They have different forms and fields of application, but they are commonly used in meteorology. Therefore, it is a special group of pressure gauges. Barometers are commonly used in meteorology, and they are a standard tool that is included in almost any weather station.

Barometers are instruments that determine the atmospheric pressure.

In extreme latitudes barometers are often used as "time indicators" as good or bad weather partly depends on changes in air pressure. The reason for this is that the passage of a low pressure front leads to a change in atmospheric pressure. An increase in the atmospheric pressure is interpreted as a sign of good weather and a drop in atmospheric pressure of bad weather.

Barometers: Constant Pressure
In most cases a constant atmospheric pressure over a period of high pressure is sign of good constant weather (however, this "good weather" in the winter may mean a "grey skies"). This constant atmospheric pressure overlaps with pressure changes in 12-hour periods because of the logical changes between day and night. Changes in day / night cycle depends on the degree of latitude. The higher pressure values (up to 5 hPa / period) are close to Ecuador, while in Germany are below 1 hPa / period. Near the polar zone, values are close to zero. In some weather conditions the pressure remains constantly high for days or even weeks, so we could think that the barometers are defective.

Barometers: increase in atmospheric pressure:
This will depend on how quickly the air pressure increases. A slow and steady increase is indicative of improved long-term climate. A sharp rise (well above 1 hPa / hr) indicates an improvement of weather time and could be a sign of an impending storm of high pressure. Example: A low pressure front moves rapidly, giving way to one that comes later. The rapid and constant increase of more than 1 hPa / hour at sea usually causes strong gusts of wind. Even when the pressure reaches high values and remains constant, a strong wind can still continue blowing (up to several days).

Barometers, Atmospheric Pressure Drop:
Here, too, it will depend on how quickly the pressure drops per hour (or every 3 or 4 hours) and if the trend is uneven or if, for example, the pressure drop per hour is becoming more pronounced. A slow and steady decline indicates a change in time, it is usually the end of a period of good weather. At first the pressure drop is weak and will be recognised by the barometers slowly. The fluctuations are subject to the trend of the barometers. A sharp drop of pressure in barometers is a sign of imminent bad weather and the arrival of a storm. Depending on the degree of pressure drop, storms can be expected. The relationship between pressure drop per unit of time and forecasting of wind speed depends on latitude. In the subtropics, it is harder to calculate expected winds from a drop in atmospheric pressure. When the barometric pressure drop increases continuously this may indicate that we are near the center of a storm. A rapid pressure drop followed by a slow pressure drop may mean that the center of the storm passes over a greater distance.

These trends serve only to justify weather in some cases. Weather events also may be associated with increased atmospheric pressure. Therefore, the forecast established by the barometers is only a very rough idea.

Barometers to measure height
Height measurement with the barometers is based on an estimate of the height measuring atmospheric pressure. To determine the absolute height, this procedure is not accurate. However, it is sufficient to determine the relative height in relation to other points.

The following table shows the relationship between height and pressure barometers.

Height

Barometers pressure in hPa

Barometers to a height of approximately 1500 m with a panoramic view of the Allgäu Alps.
Here you can see the PCE-THB 38 barometers to a height of approximately 1500 m with a panoramic view of the Allgäu Alps

0 m 1013,25
500 m 954,61
1000 m 898,76
1500 m 845,58
2000 m 794,98
2500 m 746,86
3000 m 701,12
3500 m 657,68
4000 m 616,45
4500 m 577,33
5000 m 540,25
6000 m 471,87
7000 m 410,66
8000 m 356,06
9000 m 307,48
10000 m 264,42
11000 m 226,37

Measuring pressure in a circuit with the PCE-Pxx series Barometers

Testing for pressure with the PCE-APM 30 series Barometers.

Measuring pressure in a circuit with the PCE-Pxx series barometers.

If you wish to view or print the section containing barometers from our catalogue, click the PDF symbol
Barometers: go to catalogue.
