Vibration meters
Vibration meters for inspection, manufacturing and production, and the laboratory. Vibration meters are used to measure vibrations and oscillations in many machines and installations, as well as in the development of products such as tools or components. Its measurements provide the following parameters: vibration acceleration, vibration velocity and vibration displacement. In this way the vibration is recorded with great precision. They are portable devices and their readings can be stored and retrieved for later use. The manufacturer's calibration certificates are included with your first order. Additionally, they can come accompanied with ISO 9000 certification, either with the first order or with it's annual recalibration as stated in the ISO manual. Vibration meters are an irreplaceable tool for the professional on the job. All of our vibration meters can carry out the demanding task in whichever situation regardless of the technical problem that you might have. If your situation finds you in a confined space we have at our disposal vibration meters with very small dimensions. If you don't find the vibration meters you are looking for, please contact us and we will help you find the best solution to suit your needs by calling our offices on: +44 ( 0 ) 191 377 3398 and our technical staff will advise you regarding our measuring instruments.

You will find technical specifications for vibration meters at the following links:

- PCE-VT 1000 series Vibration meters
  (vibration meters for the preventative maintenance of production machinery)

- PCE-VT 2000 series Vibration meters
  (pocket vibration meters for vibration velocity in machines and installations)

- PCE-VT 2600 series Vibration meters
  (vibration meters for the preventative maintenance of production machinery)

- PCE-VT 2700 series Vibration meters
  (to quickly test on site to make simple comparative measurements of vibration)

- PCE-VT 204 series Vibration meters
  (Vibration meters for the inspection of motors, mechanisms and ball bearings)

- PCE-VT 250 series Vibration meters
  (Vibration meters with automatic detection of revolutions / built-in stroboscope)

- PCE-VT 3000 series Vibration meters
  (Vibration meters for the inspection of motors, mechanisms and ball bearings)

- PCE-VD 3 series Vibration meters
  (Vibration meters data loggers with a built-in three-axis acceleration sensor)

- PCE-VDL series Vibration meters
  (Vibration meters, measuring vibrations and oscillations, with internal memory)

- PCE-VB 102 series Vibration meters
  (Vibration meters with free adjustment of alarm limits and measurement units mm/s o lnch/s)

- PCE-MSR145 series Vibration meters
  (Vibration meters with internal sensor for humidity, pressure, vibration, position..)

- PCE-S41 series Vibration meters
  (vibration meters or stethoscopes used for inspection and maintenance)

- PCE-LC 50 series Vibration meters
  (Vibration meters for monitoring and process control machinery lubrication)

The PCE-VT 2000, VIB 1, VC, VM-30 y VM-120 vibration meters are used primarily to determine vibration in machines and installations as relates to vibration acceleration, vibration velocity and vibration displacement. With the help of these vibration meters, the professional will be able to quickly determine in the field the actual situation and the cause of the vibrations, then be able to make the necessary adjustments and re-measure to reassess the situation. The TV-300 vibration meter can be used in the same way, but it also has a function to analyze the Fast Fourier Transform (FFT). For this reason, they are used especially for investigation, in the development of machines and installations or also to take measurements over a period of time in a test environment.

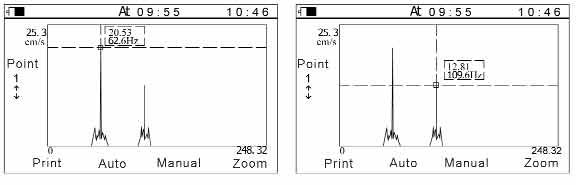

The above image shows a portion of the parameters taken and analyzed by the TV-300. It can also determine and analyze the 'harmonics' with ease and precision.

The upper image shows a fragment of the diverse parameters registered and analyzed with the VT-300 vibration meter as an analysis of frequency. You can also easily and accurately determine and analyze “harmonics”. Vibration meters are normally used for the control of machines rotational axis so the technician will be able to determine and valorate the development of an axis with accuracy. In case of a critical state, the axis may be replaced when the machine does not operate. It is also possible to perform an acoustic valuation with a sound meter (with analysis of frequency). Critical frequencies which can cause damage or annoyance noise level may be detected. Most of our vibration meters can be calibrated to meet the ISO standard, so you can include these vibration meters inside your set of internal quality tools to calibrate them regularly to get a constant accuracy. In the Calibration Certificate the company details or personal details are included.
