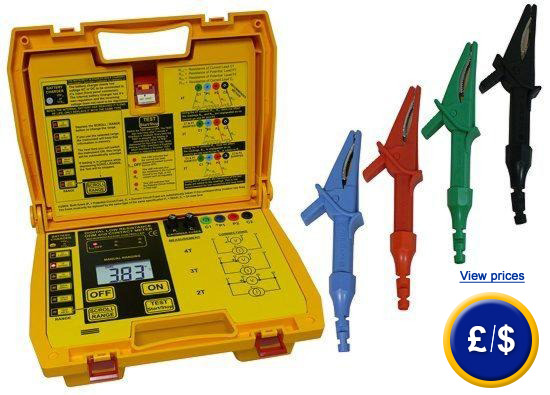

Microhm meter PCE-MO 3001 series
resolution up to 1µΩ / ruggedized case/ large LCD display / it works by means o fan accumulator / internal control of temperature / easy control panel / measurement method with 4 conductors

The microhm meter PCE-MO 3001 has been created for the measurement of low resistance. The microhm meter PCE-MO 3001 uses the measurement method with 4 conductors to avoid measurement faults. By means of the conductors the microhm meter PCE-MO 3001 allows the flow of an stable current through the measurement object with the help of a constant current source. Voltage drop is measured by means of other two conductors. The microhm meter PCE-MO 3001A operates with six different measurement ranges and three measurement currents, you will be able to get accurate results along a wide measurement range. Some commons applications of the microhm meter PCE-MO 3001 are the following: resistance measurement in coils and generators, contact resistance in switches and relays and continuity tests in ring network systems. Thanks to the measurement current up to Gracias 1 amp, very low resistances can be measured. The microhm meter PCE-MO 3001 can be used as a movable device so it is delivered in a carrying case with an internal accumulator. Test cables are included in the carrying case. Other advantages of the microhm meter PCE-MO 3001 are its large LCD display and its big keys to allow for an easy, quick and safe operation.  An internal protection circuit avoids the overheating of the microhm meter PCE-MO 3001. It comes calibrated from the manufacturer and an optional laboratory calibration and ISO certificate can be ordered separately for annual recalibrations. We have available another milliohm tester with a ruggedized and water resistant carrying case and measurement ranges from 100 μΩ to 2000 Ω at this link. At the following link you will find the microhm meter that best suits your needs.

View / print user’s manual of the microhm meter PCE-MO 3001

- Measurement method of four conductors

- Selection of six measurement ranges

- 3 test currents with overheat fuse

- Fuse in measurement inputs against high voltage.

- Big LCD display

- Maximum current of 1 A

- Auto-Hold and  Auto-Off currents

- Solid and compact

- Security: EN 61010-1

Control panel of the microhm meter
PCE-MO 3001

Technical specifications

Measurement ranges / resolution / accuracy

2,000 mΩ / 1 μΩ / ± (5 % + 5 digits)
20,00 mΩ / 10 Ω / ± (4 % + 4 digits)
200,0 mΩ / 100 Ω / ± (4 % + 4 digits)
2000 mΩ / 1 mΩ / ± (3 % + 4 digits)
20,00 Ω / 10 mΩ / ± (2 % + 4 digits)
200,0 Ω / 100 mΩ / ± (2 % + 4 digits)

Test current

10 mA (range of 200 Ω)
100 mA (range of 20 Ω / 2 Ω)
1 A (range of 200 mΩ / 20 mΩ / 2 mΩ)

Test current accuracy

10 mA: ± 1,5 %
100 mA: ± 2,0 %
1 A: ± 3,0 %

Max. output voltage

10 V rms

Power

Internal accumulator

Case

polycarbonate / ABS

Dimensions

330 x 260 x 160 mm

Weight

3,8 kg

Standard

EN 61010-1

Delivery contents
1 x microhm meter PCE-MO 3001, 1 x test cable set (with 4 cables), 1 x mains component, user’s manual.

Options
-  ISO Calibration certificate (when the device is ordered or for annual recalibration)

Test cables can be placed in the case cover.

User’s manual of the microhm meter PCE-MO 3001 are included in the delivery.
