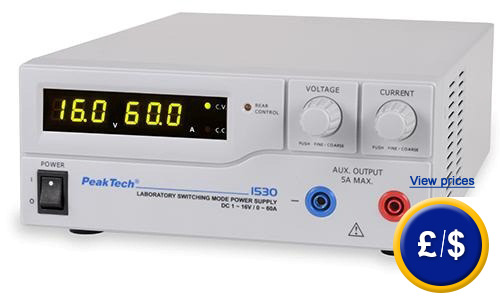

Power Supply - DC PKT 1530
power supply / 1 ... 16 V DC / max current output. 60 A
coarse and fine adjustment / LED with two large 3-digit green indications

The DC PKT-1530 power supply is equipped with commuting technology of high quality. This allows the DC PKT-1530 power supply to be used in many fields such as telecommunications, laboratory, electrical service or training. This DC power supply features a simple operation, because after a short initiation period it is very easy to use. The large rotating dual function knobs allow fine and course adjustment of the level of current and voltage of the DC PKT-1530 power supply. The power supply adjusts the tension accurately in a range of 0 ... 16 V. The maximum current output adjustable of the power supply is 60 A (the outlet is located at the rear part of the device). At the front of the power supply, the user can adjust the current to 5 A. This allows a wide field of use. As the power supply has a safety contact, it is possible to use several computers that are connected in series or parallel. In addition to a very precise setting of current and voltage, the user can set three default pairs of values of current and voltage. This feature greatly facilitates the work with the DC PKT-1530 power supply, when the same voltage and current values are required. The intelligent temperature control of the DC power supply allows for a fail-safe quiet operation. If you have any questions about the power supply, see the technical data below or call us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will be happy to advise you on this power supply and on any product of regulation and control systemsmeasuring instruments or scales and  balances.

User manual for the Power Supply - DC PKT 1530  EC certificate for the Power Supply -  DC PKT 1530  Video for the Power Supply -  DC PKT 1530  Technical specifications for the Power Supply -  DC PKT 1530  Information for the Power Supply - DC PKT 1530

Power Supply - DC PKT 1530 with a range of 0 ... 16 V.
 Power Supply - DC PKT 1530

- Suitable for RF
- Remote control for current and voltage
- 3 pairs of recoverable voltage and current values
- 5 A max. setting

- Wide voltage range
- Fine and coarse adjustment
- Light weight
- Cooling activated by fan

- Up to 60 A commutation

Technical specifications

Display

 2 x 3 15 mm digits and 7 colour segments

green

Output voltage (adjustable)

1 ... 16 V DC

Output current (fronto part)

max. 5 A

Output current (back part)

960

Output power

640 W

Residual tension

5 mV eff

Efficiency level

> 85.5 %

Power supply

200 ... 240 V AC, 50 / 60 Hz

Dimensions

200 x 90 x 325 mm

Weight

3.6 kg

Delivery  Contents
1 x PKT-1530 power supply, 1 x power supply cable, 1 x user´s manual
