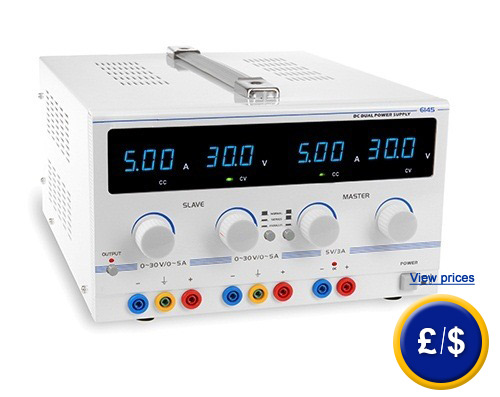

Laboratory Power Supply (stabilised) - PKT 6145
laboratory power supply / 2 x or ... 30 V and 0 ... 5 A variable DC / 1 x 5 V - 3A DC fixed  value output  / variable outputs with on-line or parallel operation

The laboratory power supply PKT-6145 has three outputs, two of which are independently regulated. The adjustable output of the PKT-6145 laboratory power supply can be adjusted without steps or by regularly by a rotary knob in a voltage range of 0 ... 30 V DC or a current range of 0 ... 5 A. The PKT-6145 laboratory power supply allows to activate two variable outputs in series or in parallel. Through the series circuit, the output voltage of the laboratory power supply is increased up to max. 60 V DC, and by parallel circuit the current output is increased up to max. 10 A DC. The set values of current and voltage are displayed on the 4 LCD displays at the front of the power supply, with blue digits. In the operating mode of output voltage, the current limit setting with protection circuit is performed by the amps regulator. The output of the fixed value of the laboratory power supply provides a voltage of 5 V with a maximum of 3 A. With these options, the laboratory power supply  can be used for many tasks in the field of teaching, research and industry. If you have any questions about the laboratory power supply, see the  technical data below or you can call us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will be happy to advise you on this laboratory power supply and on any product of regulation and control systemsmeasuring instruments or the scales and  balances.

User manual for the Laboratory Power Supply (stabilised) - PKT 6145  EC certificate for the Laboratory Power Supply (stabilised) - PKT 6145  Video for the Laboratory Power Supply (stabilised) - PKT 6145  Technical specifications for the Laboratory Power Supply (stabilised) - PKT 6145  Information for the Laboratory Power Supply (stabilised) - PKT 6145

Laboratory Power Supply (stabilised) - PKT 6145 with a voltage range of 0 ... 30 V DC or a current range of 0 ... 5 A.
 PKT-6145 laboratory power supply

- Power of 4 mmol
- 2 x 0 ... 30 V DC variable
- 2 x 0 ... 5 A variable DC
- Circuit in parallel or in series
  (up to 60 V or 10 A)

- 1 x fixed value output of 5 V - 3 A
- Overload Protection
- Short-circuit protection
- 4 LEDs

Technical specifications

Display

 4 x 3 14 mm digits and 7 blue colour segments

Output voltage (adjustable)

2 x 0 ... 30 V DC

Output current (adjustable)

2 x 0 ... 5 A DC

Fixed value output

1 x 5 V / 3 A DC

Voltage output stability

1 x 10-4 +3 mV

Current output stability

2 x 10-3 +3 mA

Fixed output value stability

10 mV

Load stability in voltage outputs

1 x 10-4 +2 mV (I ≤ 3A)
1 x 10-4 +5 mV (I > 3A)

Load stability in current outputs

2 x 10-3 +3 mA (I ≤ 3A)
2 x 10-3 +5 mA (I > 3A)

Load stability in fixed values outputs

2 x 10-3 +3 mA (I ≤ 3A)
2 x 10-3 +5 mA (I > 3A)

Ouput power

2 x 150 W

Residual tension (U)

1 mV eff

Residual tension (I)

3 mA eff

Power supply (selectable)

100 ... 120 V / 220 ... 240 V AC, 50 / 60 Hz

Dimensions

260 x 160 x 340 mm

Weight

11 kg

Delivery  Contents
1 x PKT-6145 laboratory power supply , 1 x power cable, 1 x user´s manual
