Thermal Camera PCE PI160
Thermal imaging camera with imaging frequency of 120 Hz / 160 x 120 pixels / high thermal sensitivity over 80 mK / industrial equipment / Protection Class IP 67

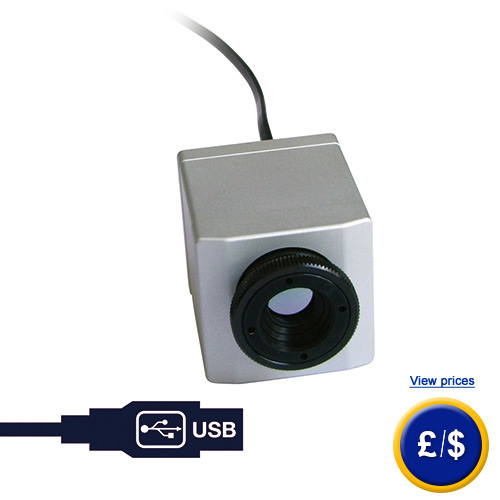

The thermal camera PCE PI160 is a radiometrical scanning infrared camera system, designed to capture and display temperature- based images and temperature profiles of objects. The thermal camera PI160 fulfills highest technological standards: Not only it is equipped with a 2.0 USB interface, but it also features a real-time imaging of 120 images per second. Furthermore for a thermal camera that is not only stationary applicable but also fitted for portable operation, it is well priced. The thermal camera provides thermal images in real time with a frequency of 120 Hz. By means if snap shots or recording of videos the images can be archived. The thermal camera PCE-PI160 is based on a small bolometer (UFPA) with 160 x 120 pixels and a pixel size of 25 x 25 m. The high thermal sensitivity provides very detailed temperature images. Therefore the thermal camera PCE.PI160 is qualified for application in areas of research and development, at check-points, process automation or for portable images in general. By means of a USB cable the thermal camera can be connected to a computer and is immediately ready for further operation. The temperature data of the thermal camera will be transferred to the provided software PCE PI Connect after converting them into thermal images. The software also manages remote controlling the thermal camera. Furthermore the camera features a line scan camera function allowing to monitor moving objects during processing. With a weight of only 195 g the thermal camera PI-200 / PI-230 has a very light and compact design without comparison. Combined with a tablet PC the thermal camera can be also applied for precautious maintenance or thermal imaging premises'. Thus the thermal camera combines portable and compact application with stationary operation. Some of the application ranges are e.g. electronic development, process controlling during extruding, process controlling during calendaring or development  and processing of solar technology, LCD flat screens or any other electronic equipment as well as the development of mechanical parts etc. Depending on its operational purpose there are various kinds of objectives are purchasable that are listed below with their serial number. In case that you should have more questions regarding the infrared camera PCE PI160, please read the following technical data, use our contact form or call us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding the infrared camera or all other products in the field of Control Systems, Laboratory Equipment, Measuring Instruments or Scales and Balances of PCE Instruments Ltd.

 Thermal Camera User's manual for the Thermal Camera PCE-PI160 Thermal Camera PCE-PI160 Video of the Thermal Camera PCE-PI160 More pictures of the Thermal Camera Technical specifications  for the Thermal Camera PCE-PI160

Thermal Camera PCE-PI160

- Well priced item
- Detector with 160 x 120 pixels
- Thermal images in real time (120 Hz)
- Temperature range up to +1500 C

- Detailed imaging due to sensitivity over 80 mK
- Compact design
- Ideal for OEM application
- Industrial equipment

Technical specifications

Detector

FPA, uncooled (25 x 25 m)

Optic resolution

160 x 120 pixels

Spectral range

7.5 ... 13 m

Temperature range

-20 ... +100 C, 0 ... +250 C, +150 ... +900 C
additional range: +200 ... +1500 C (not available for optic 72 HFOV )

Image frequency

120 Hz

Optics (FOV)

23 x 17 FOV / f = 10 mm,  max. +900 C or
41 x 31 FOV / f = 5.7 mm ,max. +900 C or
6 x 5 FOV / f = 35.5 mm, max. +900 C or
72 x 52 FOV / f = 3.3 mm, max. +900 C or
23 x 17 FOV / f = 10 mm, max. +1.500 C or
41 x 31 FOV / f = 5.7 mm, max. +1.500 C
6 x 5 FOV / f = 35.5 mm, max. +1.500 C
72 x 52 FOV / f = 3.3 mm, max. +1.500 C

Thermal sensitivity (NETD)

0.08 K with 23 x 17 FOV / F = 0.8
0,3 K with 6 x 5 FOV / F = 1.6
0,1 K with 41 x 31 FOV and 72 x 52 FOV /
F = 1

System accuracy

2 C or 2 %

Interface

 USB 2.0

Process interface (PIF)

0 ... 10 V input, digital input,
0 ... 10 V output

Surrounding temperature

0 ... +50 C

Storage temperature

-40 ... +70 C

Relative humidity

20 ... 80 % r.H., non condensing

Dimensions enclosure

45 x 45 x 62 mm

Protection category enclosure

IP 67 (NEMA 4)

Weight

195 g, incl. object

Shock / vibration

25G, IEC 68-2-29 / 2G, IEC 68-2-6

Input for stand

1/4-20 UNC

Power Supply

via. USB

Thermal Camera PCE-PI160 connected to tablet PC
Portable and stationary: PI160 connected to a tablet PC.

Thermal camera PCE-PI160: application
Milk dropping into a cup of coffee: distribution of temperature on surface shown by thermal camera PI160

Delivery Content

Standard:

1 x infrared camera PCE PI160
3 x optics (23, 6, 41) incl. calibration certificate
1 x USB cable (1m)
1 x USB cable (10m)
1 x table stand (20 ... 63 cm),
1 x PIF cable with connected terminal block (1 m)
1 x software package PCE-PI Connect
1 x aluminum case
1 x instruction manual

Optional Equipment:

- Cooler housing and montage angle adjustable in two positions
- Montage flange for cooler housing
- High temperature USB cable
- Mounting foot for camera and protection (stainless steel), adjustable in two angles,
- Angular connector

Purchasable items, depending on objective

Item number

Objective

PCE PI-160-O23-T900

23 x 17 FOV** / f = 10 mm, max. +900 C

PCE PI-160-O48-T900

41 x 31 FOV / f 0 5.7 mm, max. +900 C

PCE PI-160-O6-T900

6 x 5 FOV / f = 35.5 mm, max. +900 C

PCE PI-160-O72-T900

72 x 52 C FOV / f = 3.3 mm, max. +900 C

PCE PI-160-O23-T1500

23 x 17 FOV** / f = 10 mm, max. +1.500 C

PCE PI-160-O48-T1500

41 x 31 FOV / f 0 5.7 mm, max. +1.500 C

PCE PI-160-O6-T1500

6 x 5 FOV / f = 35.5 mm, max. +1.500 C

PCE PI-160-O72-T1500

72 x 52 C FOV / f = 3.3 mm, max. +1.500 C

Technical information of the Thermal Camera PCE-PI160.

return to homepage

Similar products to the Thermal Camera PCE PI160:

- FLUKE Ti100 / TiR110 / Tir125 Thermal Camera
   (varieties with different measurements ranges, sensors with up to 160 x 120 pixels)

Thermal Camera FLUKE Ti100/ TiR110/ TiR125

- Thermal Camera Pyroview 160 L
  (Thermal cameras for stationary use, measuring range from 20 to 500C)

Thermal Camera Pyroview 160 L

- Flir Ebx-Series Thermal Camera

 (up to 320 x 240 pixels, temperature range up to 250 C picture in picture)

Thermal Camera Flir Ebx-series

- PCE-TC 9 Thermal Camera
  (autofocus, real-time data transfer from camera to PC, 384 x 288 pixels)

PCE-TC 9 Thermal Camera
