Endoscope PCE-DE 25
Endoscope
with a reduced diameter of 10 mm for the inspection of machines, etc / adjustable LED illumination / a magnetic and hanging adaptor is included in the delivery

The PCE-DE 25 endoscope allows visual insight into the inner workings of machines and equipment. This device is ideal for inspection and maintenance in the industrial sector or workshops. Optical analysis with the PCE-DE 25 endoscope has never been so easy. All you have to do is to place the flexible cable into a space close to the area you wish to view and you will be able to see everything on the display. Thanks to both its flexible fibre optic cables and its light weight you can quickly and easily detect problems and take the necessary preventative measurements without having to dismantle the machine first. The PCE-DE 25 endoscope is versatile due to the long, flexible fibre optic cable and its reduced diameter of only 10 mm You can make your work easier using the PCE-DE 25 endoscope in the maintenance and inspection of machines and installation saving expensive machinery dismantling. The lens and the water resistant enclosure allow to use it in liquids without any problems. At the following links you will find other endoscopes with different lengths and diameters:
Endoscope PCE-DE 50                                       (1000 mm/diameter of 16 mm)
Endoscope PCE-DE 100                                     (1000 mm/diameter of 12 mm)
Video - Endoscope PCE-VE 110                     (930 mm/diameter of 10.5 mm)                               Endoscope                                                           (1000 mm/diameter of 8 mm)
Endoscope with external monitor of 5.6" V-200     (20 m/diameter of 26 mm

Don't hesitate to call us if you require assistance regarding any of our instruments. Our technicians and engineers will be happy to help you with the measuring instrument that best suits your needs by contacting us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. At the following link you will find an overview of all the endoscopes available at PCE-Instruments.

User manual for the PCE-DE 25 endoscope  EC certificate for the PCE-DE 25 endoscope  Video for the PCE-DE 25 endoscope  PCE-DE 25 endoscope: Software.  Technical specifications for the PCE-DE 25 endoscope  Information for the PCE-DE 25 endoscope

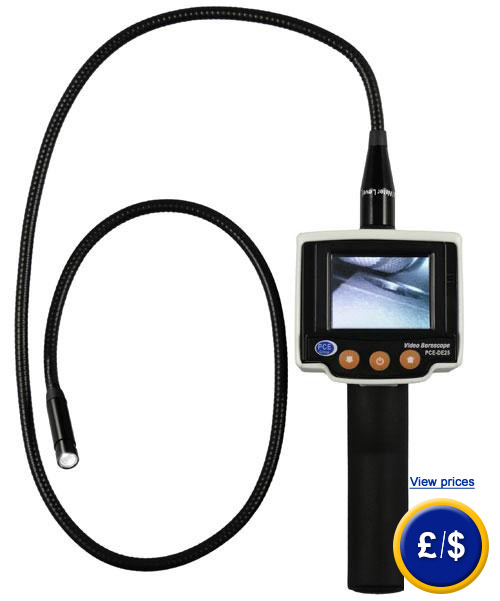

PCE-DE 25 endoscope (for the industrial and professional sector)

- The flexible cable allows you to access difficult
  areas (length = 880 mm). The cable can bend
  into the shape you require and will return to its
  original form.

- A hanging magnetic adapter is included in the       delivery

- 2.4" LCD display

- Easy to use with only one hand

- The LED lamp of the PCE-DE 25 makes it            possible to see obscure areas of analysis.

- Optimal distance of vision from 3 to 6 cm.

Functionality / Fields of application

Below you can see the endoscope in use. This endoscope has a wide range of applications and can be used by electricians, security personnel, specialists in all fields, maintenance personnel involved in industrial processes, pipe installers, mechanics of all types and for private use.
You will not need to dismantle or open up machines to be able to diagnose problems. Thanks to the PCE-DE 25 endoscope you will save time, money and effort.
Another interesting field of application is the professional one. The PCE-DE 25 endoscope can be converted into an extraordinary device for practical demonstrations in schools or universities, providing students the opportunity to see inside machines and motors.

endoscope PCE-DE 25 use 1

endoscope PCE-DE 25 use 2

endoscope PCE-DE 25  use 3

endoscope PCE-DE 25 display

endoscope PCE-DE 25 use 4General information about endoscopes: Endoscopes were traditionally used for diagnostics in the sector of medicine. Nowadays, they are used in the industrial sector, for places with limited accessibility. Our endoscopes are flexible and return to their original form after they are extracted. For documentation we offer these endoscopes with camera and video adaptors. The two images above show two examples of the endoscope at work. To the right you can see that an automobile exhaust pipe is being inspected for oxidation, obstructions and fractures. To the left it is being used to inspect the plumbing of a sink for obstructions. Attention: Our endoscopes are not to be used in the field of medicine. They can only be used in the industrial sector, product development as well as for personal use such as hobbies.



This video shows that the use of endoscope in maintenance saves many hours of assembly and disassembly in order to be able to make a visual inspection of a particular item of equipment or industrial machinery.

Technical specifications

Length of flexible cable

880 mm

Diameter of the cable

10 mm

Diameter with the magnetic adapter

15 mm

Curve radius

450 mm

Display

LCD of 6.1 cm

Resolution of camera

320 x 240 pixels

Video format

NTSC

Field/angle of vision

54 º

Optimal distance of vision

min.: 3 ... 6 cm
max.: depends on the ambient light

Operating/storage temperature

0 to + 45 ºC

Light source

2 LEDs

Power

4 x 1.5 AA batteries

Weight with carrying case

370 g

Delivery content:
1 x PCE-DE 25 endoscope,
1 x carrying case,
1 x hanging magnetic adapter,
1 x video cable,
4 x batteries and user manual


Note: Not for medical use!

endoscope PCE-DE 25 delivery content

Technical information of the PCE-DE 50 endoscope. return to homepage
