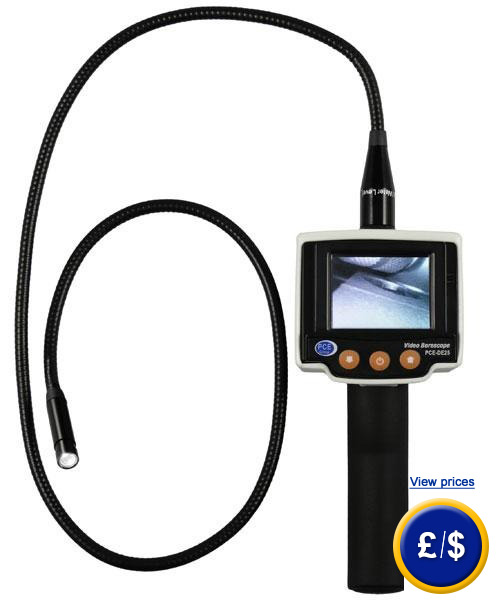

PCE-DE 25 Fiberscope (for industry and professionals)
Fiberscope with a reduced diameter of 10 mm for the inspection of machines, etc. / adjustable LED illumination / magnetic and hanging adaptor is included in the delivery /
2.4" LCD display / adjustable brightness and contrast / white balance and luminous exposure

The PCE-DE 25 fiberscope allows the insight into the inner life of machines and installations. This fibroscope is ideal for inspection and maintenance in the industrial sectors or in workshops. Optical analysis  has never been as easy as with the PCE-DE 25 fiberscope. All you have to do is to insert the flexible cable into a space close to the area you wish to view and you will be able to see everything on the display. Thanks to its flexible fibre optic cables and its light weight you can quickly and easily locate problematic spots with the PCE-DE 25 fiberscope and take necessary preventative measures, without having to dismantle the machine first. The PCE-DE 25 fiberscope is especially versatile, due to its long, flexible fibre optic cable and reduced 10 mm diameter. You can facilitate your work by using the PCE-DE 25 fiberscope during the maintenance and inspection of machines and installations, thereby avoiding expensive machinery dismantling. The lens and the water-resistant enclosure allow using it in liquids without any further ado. Here you will find other fiberscopes with different lengths and diameters. We would also suggest to take a look at some other favored products from our range: Stroboscopes, thermal camera, tachometer, power analyser. If there are any questions about this Fiberscope PCE-DE 25 please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding all fiberscopes and all products in the field of measuring instruments, regulation and control and scales.

Get more information on the Fiberscope PCE-DE 25  User manual for the Fiberscope PCE-DE 25  EC certificate for the Fiberscope PCE-DE 25  Video for the Fiberscope PCE-DE 25   Vibration Fiberscope PCE-DE 25  Technical specifications of the Fiberscope PCE-DE 25

Fiberscope PCE-DE 25

- Semi-flexible camera
- Magnetic and hook adapter included
- Single-hand operation
- Four dimmable LEDs (white) at camera head

- 2.4" LCD display
- TFT LCD monitor with 240 x 230 pixels
- Incl. white balance
- Low weight

Functionality/Fields of application

Below you can see the fiberscope in use. This fiberscope has a wide range of application and is used by electricians, security personnel, specialists in all fields, maintenance personnel involved in industrial processes, pipe installers, mechanics of all types and for private use.
You will not need to dismantle or open the machine to be able to diagnose the problem. Thanks to the PCE-DE 25 fiberscope you will save time, money and effort.
Another interesting field of application is the educational field. The PCE-DE 25 fiberscope can be converted into an extraordinary device for practical demonstrations at schools or universities. It provides students the opportunity to take a look inside machines and engines.

Fiberscope PCE-DE 25 application

Fibesrscope PCE-DE 25 socket
Pins of the Fiberscope PCE-DE 25

Fiberscope PCE-DE 25 display
Display of the Fiberscope PCE-DE 25

General information about the fiberscope: Fiberscopes were traditionally used for diagnostics in the sector of medicine. Nowadays, they are used in the industrial sector, for spaces with limited access. Our fiberscopes are flexible and return to their original form after they have been extracted. For documentation purposes, we offer the fiberscopes with camera and video adaptors. Below you can see the fiberscope PCE-DE 25 during inspection. Attention: Our fiberscopes are not made for application in medical diagnosctic! They can only be used in the industrial sector, product development as well as for personal usage, e.g. for hobbies.

Fiberscope PCE-DE 25 inspection
The Fiberscope PCE-DE 25 during inspection of engines

Technical Specifications

Display

2.4"

Display resolution

320 x 240 Pixel

Lens resolution

640 x 480 Pixel

White balance

automatic

Luminous exposure

automatic

Light source

4 LEDs (white)

Power Supply

4 x 1.5 AA batteries

Power consumption

max. 400 mA

Surrounding / Operation temperature

0 ... 45 °C

Gross length of device

117 cm ±2

Length of cable

100 cm ±2

Minimum radius after bending cable

4.5 cm

Diameter of camera head

10 mm

Field/angle of vision

54 °

Focus for shorter distance

3 ... 6 cm

Weight without additional equipment

approx. 562 g

Protection Class

IP 67

Diameter of the cable

7 mm

Delivery Content of Fiberscope PCE-DE 25

1 x fiberscope PCE-DE 25, 1 x magnetic adapter, 1 x hook adapter, 1 x mirror adapter, 4 x batteries type AA, 1 x instruction manual
Note: The fiberscope is not designed for medical reasons.

Description of the adapters included in delivery

Camera head of fiberscope:

The image on the right shows the head of the fiberscope PCE-DE 25. This head has a diameter of 10 mm with the camera lens in the middle with a resolution of 240 x 230 pixels. The 4 LEDs are arranged in a circle around the camera lens, which are dimmable and assure ideal lighting conditions around the measured area even in darker spaces. The slot at the back of the head is made for the various adapters that are included in delivery. By using those adapters the fiberscope PCE-DE 25 qualifies as multi-functional device. The various options provided by these adapters is listed below.

Hook adapter for Fiberscope PCE-DE 25:

By attaching this hook adapter to the fiberscope you can use it to remove objects from locations that would be otherwise difficult to reach. It is applicable for any objects, which can be grabbed by a hook, e.g. cables, nut bolts etc.

Magnetic adapter for Fiberscope PCE-DE 25

In case there is a metallic object stuck anywhere in an enclosure of e.g. a machine or an engine, the fiberscope can be used to locate that object and remove it by using the magnetic adapter.

Mirror adapter for Fiberscope PCE-DE 25:

By means of this mirror adapter you can take a look on spaces which could otherwise not be reached by the fiberscope even with its flexible cable cord, e.g. the backside of objects that are difficult to reach. Otherwise you would require for this task a fiberscope in a higher price range with complex panorama heads.

General information on fibroscopy
The fiberscope was invented in 1806 by the German doctor Philipp Bozzini, developed to facilitate medical diagnostic procedures. The prototype was a rigid fiberscope with a candle used as light source. During the following years the fiberscope was further developed and became an important equipment in many areas. Even today the most important field of application for the fiberscope is medicine, where it is not only used for examination purposes but also to perform endoscopic surgeries by passing micro tools through integrated channels. Another important application area is the Technical field, whether it is the automobile industry for diagnostics of engines, in the sanitary area to examine pipes or in areas of construction to examine buildings on possible pest infestation. Today the fiberscope is purchasable in many different variations due to its popularity.

Technical information of the PCE-DE 50 endoscope. return to homepage

Similar products to the Fiberscope:

- PCE-VE 320N / PCE-VE 330N / PCE-VE 340N Fiberscope
  (Flexible fiberscopes with 1, 2 or 10m long cable, Ø 5,5 mm, 2GB internal memory)
PCE-VE 320N / PCE-VE 330N / PCE-VE 340N Fiberscope
- PCE-RVE 30 Fiberscope
  (for craft and development, capture of pictures and videos, diameter of only 3,9 mm)
PCE-RVE 30 Fiberscope
- PCE-VE 350N Fiberscope
  (1800 mm
long cable, Ø 6,0 mm / 2-way articulation, 512 MB memory)
PCE-VE 350N Fiberscope
