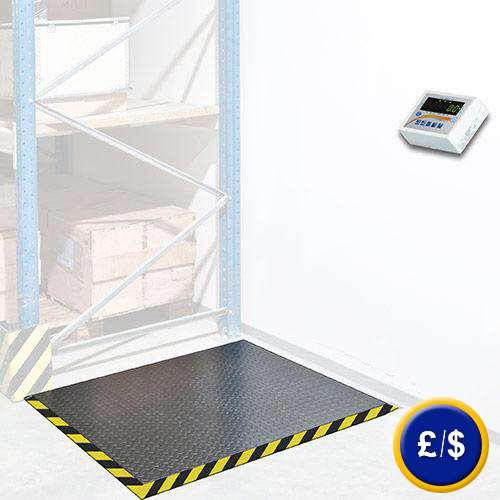

In-Floor Scale PCE-SD ... F series
Calibratable In-Floor scale up to 6,000 kg / resolution above 0.5 kg /
weighing cells IP67 / unit counter function/ summation function / optional mounting frame / RS232 interface / scale made of lacquered steel / removable weighing platform

This In-Floor scale is a calibratable platform scale to fit into the ground. The In-Floor scale can be delivered with an optional fitting frame if desired. The In-Floor Scale is calibrated according to calibration class III and permitted to an application in trading for a period of two years. The display cable of the In-Floor Scale has a length of 5 m and features a socket, which makes the cable perfectly mountable into cable pipes without effecting the calibration of the In-Floor Scale. A removable platform facilitates mounting of the In-Floor platform. The display of the In-Floor scale is IP 54 protected and has a carrier on its backside, so that it can be easily mounted onto the wall or to a table. As option you can also purchase a stand for the display of the In-Floor scale. The In-Floor Scale can be purchased in various sizes, from which you can chose. And the various functions of the In-Floor Scale allows an universal application. The In-Floor Scale can be easily integrated into an IT system by any software engineer. Our assortment also covers the version of the In-Floor Scale made of stainless steel. For particular weighing tasks in the industrial field the In-Floor Scale can be also equipped with an analogue interface either 4-20 mA or 0-10 V as well as three potential-free switch contacts. In case that you should have more questions regarding the In-Floor Scale PCE-SD F series, please read the following technical data, use our contact form or call us: +44 (0) 2380 98703 0. Our technicians and engineers will gladly advise you regarding platform scales or any other product in the field of Control Systems, Laboratory Equipment, Measuring Instruments or Scales and Balances of PCE Instruments Ltd.

More information about the Fitting Platform Scale PCE-SD F series   User Manual for the Fitting Platform Scale PCE-SD F series   CE-Certificate for the Fitting Platform Scale PCE-SD F series   Video of the Fitting Platform Scale PCE-SD F series   More pictures of the Fitting Platform Scale PCE-SD F series   Technical Specifications for the Fitting Platform Scale PCE-SD F series

In-Line-scale PCE-SD F series

- Unit counter function
- Percentage calculation by comparison
- Filter (responding time) adjustable
- Animal weighing function
- Tare value can be saved
- Tolerance range can be set min/ ok / max
- Summation of several weights performable
- Calculation of mean weight

- Function to weigh composition (formula)
Adjustable bi-directional RS-232 interface
- Statistics function
- Automatic switch off can be set
- Key for gross / net value at display
- Menu settings can be adjusted
- Components do not need any maintenance
- Optional: USB, LAN or 4-20 mA

Images with details of the In-Floor Scale PCE-SD F series

Removable platform ofthe In-Floor Scale
Removable platform of the In-Floor Scale

Robust design of the In-Floor Scale
Robust model of the In-Floor Scale

Socket connection for display of the In-Floor Scale
The display of the In-Floor Scale features a socket connection

Firm position of the In-Floor Scale
4 x fixation platforms to assure firm position of the In-Floor Scale

Technical specifications of the In-Floor Scale PCE-SD F series

Model

Weighing range

Readability

Min. *

Dimensions

Weight

PCE-SD 1500F

1,500 kg

0.5 kg

10 kg

1500 x 1500 mm

210 kg

PCE-SD 3000F

3,000 kg

1 kg

20 kg

1500 x 1500 mm

210 kg

PCE-SD 6000F

6,000 kg

2 kg

40 kg

1500 x 1500 mm

210 kg

*The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer.

Calibration Class

M III (is calibrated before delivery)

Tare function

Multiple taring for whole measurement range

Settling time

<4 s

Weighing units

kg / units / lb

Interface

Optional bi-directional RS-232 / LAN / USB
Description of interface
and 4-20 mA, 0-10 V, OC

Display

LED with 20 mm digit height

Cable Length

5 m with socket

Weighing Platform

riffled lacquered steel (removable)

Power Source

~230V, 50Hz, 8VA (Shuko socket)

Protection Class

Load Cells IP 67 / Display IP 54

Operational temperature

- 10 °C ... + 40 °C

In order to fit the platform scale into the ground you will require a sketch of the construction and the dimensions of the fundament and frame. Please consider therefore the links beneath the following images.

Diameter of cavity for the In-Floor Scale
Diameter of cavity for the In-Floor Scale
view/ print

Frame of the In-Floor Scale
Frame of In-Floor Scale
view/ print

Horizontal view of the In-Floor Scale
Horizontal view of In-Floor Scale
view/ print

Diameter of stand of the In-Floor Scale
Diameter of stand of In-Floor Scale
view/ print

Mounted In-Floor Scale used to control incoming goods, comfortable weighing process
Mounted In-Floor Scale used to control incoming goods, comfortable weighing process

Delivery content of the In-Floor Scale PCE-SD F series

1 x In-Floor Scale PCE-SD F series, 1 x display, 4 x stands for fixation,
1 x instruction manual

Optional Equipment for the In-Floor Scale

Stand
The IP 65 display of the In-Floor Scale features an universal attachment offering the option to mount the display on a wall, a table or on the optionally purchasable approx. 80 cm steel stands.
Item-Nr. PCE-M-STATIV

In-Floor Scale PCE-SD E SST-series: stand

Frame to fit into ground:
In order to mount the In-Floor Scale into the ground, the edges need to be secured. This frame can be purchased to fit safety precautions.
Item-Nr. PCE-SD-F-Frame-1515

Interfaces
Due to its high protection category the In-Floor Scale does not feature any interface. Although there is the option to integrate these interfaces by order. They cannot be mounted subsequently.
RS-232 interface Item-Nr. AF-RS232-PCE
RS-485 interface Item-Nr. AF-RS485-PCE
USB interface Item-Nr. AF-USB-S
LAN interface Item-Nr. AF-LAN-S

In-Floor Scale interface RS 485 connection for the In-Line Scale PCE-SD E SST-series In-Floor Scale interface In-Floor Scale interface

Software Procell
The software is able to simulate a manual data feed-in and can transfer the data e.g. straight to Excel with time and date. There is also the option of saving a TXT file in the background. (data cable not included in delivery)
It.-nr. PCE-SOFT-Procell

In-Floor Scale Procell software

USB stick
If there is no computer or printer to be connected to the In-Floor Scale, the weighing data can be saved with time and date stamp as a txt.-file on a USB stick. The USB stick is to connect to the steel scale via the RS-232 interface. The adapter requires a separate external power source (adapter incl.).
Item- Nr. PCE-USM

In-Floor Scale USB stick

Analogue output 4-20 mA / 0 ... 10 V
The 16 bit analogue output converts the weight value into a mA or V signal, so that e.g. a SPS control system can response to that. Example with 4 ... 20 mA: At 0 kg a signal of 4 mA is sent, while at maximum load a 20 mA signal is released. The 20 mA / 10 V limit can be also customized individually.
Item-Nr. AF-4-20mA-PCE
Item-Nr. AF-0-10V-PCE

In-Floor Scale analogue output

In-Floor Scale Analogue

Potential-free contacts
This contactor is called in short-terms an OC-contactor. It means that by reaching preset weight limits e.g. MIN / OK / MAX, the scale is able to switch a maximum of three contacts. The switch can be either set as an impulse or a continuous signal.
Item Nr. AF-TSD

In-Floor Scale Potential-free contacts

Printer
For immediate print-out of values from the In-Floor Scale (e.g. for protocol of weighing data). Delivery of printer incl. RS232 printer cable and 240 V network adapter, paper width 112 mm ( 1 role incl.).
Item Nr. PCE-BP 1

In-Floor Scale printer

Signal lights
This signal lamp helps assuring a visible signal system for the whole personnel. If the weight is below the minimal limit, the yellow lamp brightens up, if the values are within the preset thresholds, the green lamp brightens, if the weight trespasses the upper limit, the red light starts brighten.
Item -Nr. PCE-CSD

In-Floor Scale: signal lights

RS-232 cable
This serial cable has a total length of 1 m, and features the accordant pins 2-3/ 3-2 / 5-5 for a bi-directional communication path of the waterproof steel balance with a computer.
Item-Nr. PCE-BDM-RS232

In-Floor Scale PCE-SD RS232 cable

USB adapter
This adapter is meant for a conversion from a RS-232 interface Sub D 9 to a USB interface. It additionally requires a serial cable with the right poling.
Item Nr. RS232-USB

In-Floor Scale USB adapter

Technical specifications for the In-Floor Scale PCE-SD F series

Return to homepage - In-Floor Scale PCE-SD F series

Similar products to the PCE-SD F series Fitting Platform Scale:

- Stainless Steel Floor Scale PCE-SD E SST series
  (calibrated, stainless steel, up to 6 t, IP 68/65, platform size varying)

Fitting Platform Scale PCE-SD E SST series: with varying platform
