Crane Scale PCE-CS 1000
Two crane scale models
with remote control are available: 0 ... 1000 kg
|
|
The PCE hook type is an advanced wireless crane scale. The
crane scale combines the safety and comfort of having a
remote, wireless control with the ease of use that a hook
allows. The PCE crane scale is especially suitable for rough
use in different industries, as well as for a wide variety
of other applications. The crane scale has an internal
mechanism to ensure that the received and indicated value is
identical to the transmitted value.
Under no circumstances will it indicate a different value than
the transmitted one. This is an important safety feature.
The small size of the wireless crane scale ensures low
headroom loss for any application. The lightweight crane
scale is powered by internal rechargeable long life battery,
what ensures a continuous work period of 50 h before it has
to be recharged again. A maximum overload of 400 % protects
the load cell. The 30 mm LED Display shows the weighing data
on distances up to 10 m very bright and clear. All in all a
crane scale for precise weighing of higher
loads -
|
-
On/Off, Zero, Tare, Hold and kg / Lb functions
-
Special "Sum up" function (stores weighing data as single
and total weight - you can recall all data on the display
after having finished the weighing procedure)
- Metal
casing / housing
- Hook
with safety catch
-
Stainless steel hooks
- Auto
zero tracking
-
Wireless remote control
-
Internal rechargeable battery pack
(50 h continuous use before recharging)
- Low
battery indication
- IP54
protection grade
- Very
clear 30 mm LED illuminated
(visible up to 10 m distance)
-
Overload protection 400 %
-
Calibratable by using an external weight (option)
- ISO
calibration certificate available (option)
See / Print
Instruction manual
 |
PCE-CS 1000
Crane Scale PCE-CS Series
 |
|

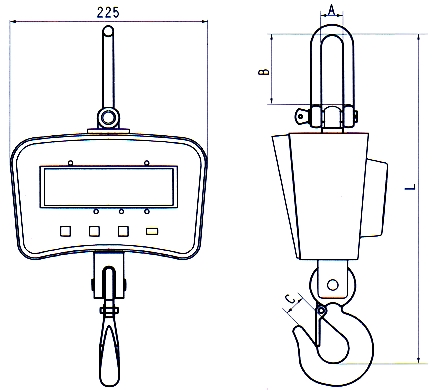

Measures to hang in the crane scale
PCE-CS 1000
|
|
|
|
Max.
Capacity
|
L
[mm]
|
A
[mm]
|
B
[mm]
|
C
[mm]
|
Weight
[kg]
|
|
1000 kg
|
360
|
25
|
75
|
20
|
4,2
|
|
|
|
Technical Data
|
|
Crane scale model |
Maximum Capacity
[kg] |
Readability
[kg] |
Units to weigh |
Tare |
Net weight
[kg]
|
|
PCE-CS 1000
|
1000
|
0,5
|
kg / lb |
Full range |
4,2
|
|
Dimensions |
See table above |
|
Stabilisation time |
< 10
s
|
|
Maximal Overload |
400
%
|
|
Display |
30 mm backlit LED |
|
Housing |
Metal case |
|
Remote control |
Usable for all functions (infrared / visible up to a
distance of 10 m) |
|
Delivery includes
1 x Crane Scale PCE-CS 1000,
1 x Internal Rechargeable Battery, 1 x Charger, 1 x Infrared
Remote Control (incl. batteries), 1 x Stainless Steel Hook, 1 x
Shackle, User manual
|
|
Options
ISO Calibration (CAL-0,5T / CAL-1T)
The calibration procedure
includes laboratory calibration process and ISO
certification. The customers name and address is
filled in. These certificates are comparable to NIST
and UKAS certificates. They are accepted all over
the world.
|
 |
|
|
|
Here you will find an overview of all the
scales and balances available from PCE Group. |
