PCE-SW 1500 / 3000 Floor Scale
Portable floor scale, two models with weight range up to 3000 kg,
width between bars can be adjusted, resolution of 0.5 kg, RS-232 port

With the PCE-SW series floor scale, weights can be measured directly on a load platform or in the warehouse. The weigh bars are connected by a cable, which allows to choose the suitable distance (up to 3 meters) between the bars. So weighing of the wide loads is very convenient. This scale does not require bringing the pallet to the scale, it can be taken to the pallet that needs to be weighed. WIth this scale you will weigh things easily and with total control. The floor scale is powered by either a 230V mains adaptor or an internal rechargeable battery. Its automatic calibration function allows quick validation in situ using a calibration weight, which is not included with the scale. It can be transported easily from one location to another. The display can be detached and mounted on a tripod or placed on a table. This link shows and overview of all the available scales and balances.

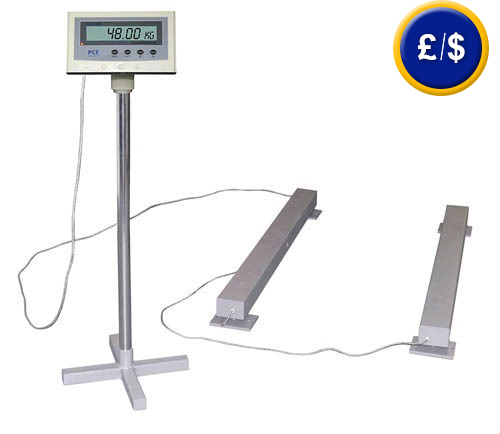

PCE-SW 1500/3000 series floor scale.
PCE-SW series floor scale

View or print the user manual
PCE-SW 1500/3000 series floor scale: user manual

PCE-SW series floor scale in use

detail of PCE-SW series floor scale

 - Repeatability of ± 0.5 kg

 - Automatic deduction of tare, manual input of         tare, adding function

 - Made of solid, coated steel

 - Powered by 230 V mains adaptor or an internal     rechargeabale battery

 - Adjustable feet to compensate uneven surface

 - Surface perforations to mount an optional             platform

 - Auto shut-off to protect battery power

 - Overload alarm function

PCE-SW 1500/3000 series floor scale: Calibration programme using an external calibration weight.

Calibration programme using an external calibration weight (not included)

PCE-SW 1500/3000 series floor scale: Taring function for zero reset of weight Tare function for zero reset of weight (multiple tare is possible)
PCE-SW 1500/3000 series floor scale: Ingress protection: IP 54, against water splash and dust. Ingress protection: IP 54, against water splash and dust
PCE-SW 1500/3000 series floor scale: RS-232 port to transfer data directly to a computer. RS-232 port to transfer data directly to a computer
PCE-SW 1500/3000 series floor scale: Powered by 230V mains adaptor or internal rechargeable battery. Powered by 230 V mains adaptor or internal rechargeable battery

PCE-SW 1500/3000 series floor scale: The display of the floor scale.
The display of the floor scale.

PCE-SW 1500/3000 series floor scale: Dimensions of the floor scale.
Dimensions of the floor scale.

Technical specifications
  PCE-SW 1500 PCE-SW 3000
Weight range 0 to 1500 kg 0 to 3000 kg
Reading capacity 0.5 kg 1.0 kg
Repeatability ± 0.5 kg ± 1.0 kg
Tare range
over the full weight range
Response time 3 to 5 seconds
Measuring units
kg
Display 25 mm, high contrast, backlit LCD with 4 keys, can be detached, has 4 m cable
Maximum overload 125%
Overload alarm Alarm when 3% overload is exceeded
Calibration automatic (using an external calibration weight)
Power - using 230 V mains adaptor or rechargeable batteries (6V/4Ah)
Enclosure Scale: coated steel; Display: ABS
Ingress protection IP 54
Operating conditions 0 to 40°C/10 to 80% r.h.
Weight 45 kg

Delivery includes
1 x PCE-SW floor scale (depending on model), 1 x cable to connect weigh bars, 1 x power adaptor, 1 x display and user manual

Optional accessories

Software pack

Software is in German and includes RS-232 cable. It allows the transmission of data to a computer. Data can also be exported to other software such as MS Excel.

PCE-SW 1500/3000 series floor scale: software pack

USB to RS-232 adaptor

If you want to transfer data to a portable computer, you will need this adaptor to allow you to connect the RS-232 cable, which comes with the software, to USB port.

PCE-SW 1500/3000 series floor scale: USB to RS-232 adaptor

ISO calibration / certification
