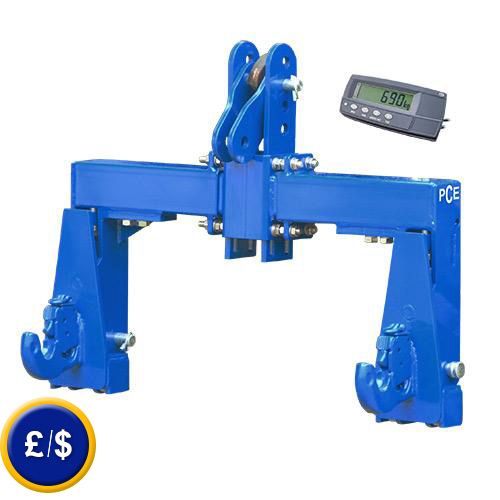

Hydraulic Scale PCE-TCW 1
Hydraulic Scale for installation into tractor / weighing range up to 6,000 kg / Resolution 5  kg / IP 68 protected weighing cells / simple handling / incl. LCD display / voltage supply 12 ... 24 V

The hydraulic scale PCE-TCW 1 is a scale designed mainly for applications in agricultural sectors. This hydraulic scale is simply to mount onto the tractor's three-point hitch and then starts automatically measuring continuously weight, as well as weight loss, that is loaded onto the construction. Due to the adjustable hitch lifting arms (85 to 90 cm) and the height of upper arm to lower arm (48 to 68 cm) the hydraulic scale can be mounted at hardly any tractor. The construction made of steel is covered with a special lacquer and features two inner 5t weighing cells that are well protected. This weighing cell of the hydraulic scale is IP 68 protected and can be easily applied even under rough working conditions. In order to facilitate the mounting and demounting of the hydraulic scale, it features two quickly attachable hooks for an easier handling. The external display of the hydraulic scale can be installed inside the driver's cabinet and thus allows monitoring the measured values whilst navigating the truck. The display features background lights and thus the values can be read even under poor light conditions. The hydraulic scale's power supply comes from the truck's electricity. If there are any questions about this Hydraulic Scale PCE-TCW 1 please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding all hydraulic scales and all products in the field of measuring instruments, regulation and control and scales.

Buy Hydraulic Scale PCE-TCW 1 User's manual on Hydraulic Scale PCE-TCW 1 CE-Certificate for the  Hydraulic Scale PCE-TCW 1 Videos on Hydraulic Scale PCE-TCW 1 More pictures of the Hydraulic Scale PCE-TCW 1 Technical data sheet on Hydraulic Scale PCE-TCW 1

Hydraulic Scale PCE-TCW 1

- High weighing range up to 6 t
- Simple menu navigation
- Display with background lights
- Fits most tractor's hydraulic system

- To monitor the distributed goods
- Stable construction
- 5 kg resolution
- IP68 weighing cells

Technical Specifications of the Hydraulic Scale PCE-TCW 1

Weighing range

Max. 6,000 kg

Resolution

5 kg

Measurement method

two weighing cells registering the shear force, each with a maximum up to 5 t

Overload / Max. load for cells

120 % / 150 %

Measurement inaccuracy

±1 … 2 % (of the whole construction)

Operation temperature

weighing cells -35 … +65 °C
display -10 … +40 °C

Display

LCD display, background lights, 3.5 m cable

Voltage Supply

12 ... 24 V, 2 m cable length

Attachment

tail hook for attachments

Dimensions

104 x 84 x 20 cm

Space in-between tractor and construction

Lift arm: 160 mm
Top link: 130 or 160 mm

Weight

approx. 80 kg

Extension of lift arm coming from tractor



Bolt diameter

28 mm

Inner width

64 mm

Extension of top link from tractor



Bolt diameter

25 mm

Inner width

64 mm

Extension of lift arm from device



Bolt diameter

28 mm

Pin diameter

51 mm

Horizontal space

85 ... 90 cm

Extension of top link from device



Bolt diameter

25 mm

Typical applications of the Hydraulic Scale PCE-TCW 1

Hydraulic Scale PCE-TCW 1 application
Here you can see the display of the hydraulic scale PCE-TCW 1. Measurement values can be read out whilst driving the truck. Thus the amount of distributed fertilizer or any other goods can be easily monitored.

Hydraulic Scale PCE-TCW 1 application 2
Here you can see the hydraulic scale during operation. The holding fixture holds the container with the fertilizer. The driver of the tractor can then check on the load at all times.

Delivery Content

1 x Hydraulic Scale PCE-TCW 1, 2 x hanger for top link with 160 mm hole center distance, 2 x hanger for top link with 130 mm hole center distance, 1 x top link bolt, 2 x lift arm bolt with linch pins, 1 x weighing display with connection cables, 1 x instruction manual
