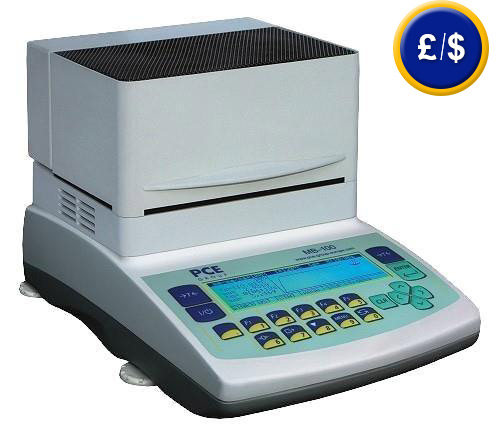

Moisture
Analyser Balance PCE-MB Series
Moisture - Dryness Content 0 ... 100 % / resolution 0.01 % /
Weighing ranges of 0 ... 100 and 0 ... 200 g / resolution 0.001 g /
bargraph display / RS-232-interface and optional software
|
|
The
moisture
balance is a precision device for the determination of moisture
content in small samples of materials by drying the sample with
halogen heaters. The moisture analyser balance is in use as a
moisture measurement tool as well as for determination of dryness
content. Also it can work as a standard mg-balance. The moisture
analyzer uses heaters (2 x 200 Watts) to dry the sample in conjunction
with a precision balance to measure the minute changes in weight as
the sample dries. In general these units can be used in
research, development and quality control. The materials to be
tested are: food, sugar, salt, granulates, plastics, pellets,
fibers, ..., but also liquids as sludge and mixtures of all kinds.
So the moisture analyser balance is a multi purpose tool.
The software built into the system provides many different
drying programmes and calculates various parameters for humidity
and dry mass. A typical drying procedure involves choosing a drying
temperature, a time interval - for example 100 degrees for 10
minutes- and a mode - % solids. Automatic external
calibration using either 100 g or 200 g calibration weight (depending
on the model) guarantees ongoing accurate results. The integrated RS
- 232 - interface enables you
(with optional software-kit) to automatically send the moisture data into a sequence table. This
link
shows an overview of the scales and balances we
have available to meet your requirements. |
 |
|
- External calibration
- Date and time
- Backlit LCD with dual display
/ Capacity tracker
- Multilingual display (English, German,
French, Spanish, Italian, Russian, Polish
...)
- Memory for temperature correction for 9
types of sample (user programmable)
- Memory for 160 drying sequences (user
programmable)
- RS-232 bi-directional interface
- Calibration certificate (Option)
- Software-Kit (Option)
|
See / Print Instruction manual
 |
|
Technical Data |
|
Balance model |
PCE-MB
50
|
PCE-MB
100
|
PCE-MB
200
|
|
Measurement / Weighing ranges |
0 ... 100 % Absolute
Moisture |
|
0 ... 50 g
|
0 ... 100 g |
0 ... 200 g
|
|
Maximum
capacity |
50
g |
100
g |
200
g
|
|
Readability |
0,01 %
0,001 g
|
|
Linearity |
±
0,1
g / OIML clase II |
|
Repeatability |
0.0015
g |
|
Tare
range |
Full |
|
Heating |
2
quartz halogen heaters (200 W each) |
|
Temperature
range |
+50
°C ... +160 °C in increments of 1 °C |
|
Stabilisation
time |
3
... 5 s
|
|
Time
setting / Sampling interval |
2
min ... 9 h 59 min (in increments of 1 s) |
|
Memory
/ Drying curve |
160
(to memorize user programmable drying curves) |
|
Work
mode / Drying sequence |
-
Automatic (drying to constant weight)
- Semi-automatic (drying stops when loss
per unit of time goes below theoretical value)
- Manual (by preset time) |
|
Interface |
RS-232
bi-directional interface |
|
Display |
Backlit
with dual digits 34 mm (multilingual) and capacity tracker
|
|
Calibration |
Automatic
external calibration with optional weights (100 / 200 g)
|
|
Pan
size |
Diameter
100 mm
|
|
Operating
Temperature |
+18
... +30 °C
|
|
Power
supply |
240
V
/ 50 Hz
|
|
Housing |
die
cast aluminium |
|
Protection |
IP54
|
|
Overall
dimensions |
235
x 245 x 260 mm |
|
Net
weight |
ca.
8 kg |
Delivery includes
1 x Moisture
Analyser Balance (Model PCE-MB 50 or PCE-MB 100 or PCE-MB 200), 1 x Mains plug,
10 x Aluminium sample pans, User manual (in needed language: English,
Russian, Italian, French, Spanish ...) |
|
Options
-ISO Calibration (ISO-PCE-MB)
The calibration procedure includes laboratory calibration process and
ISO certification. The customers name and address is filled in. These certificates are comparable to NIST and UKAS certificates. They are accepted all over the world. |
 |
|
Software-Kit
(PCE-SOFT-MB)
The kit includes
a software for transferring weighing data to a PC or Portable and a rs-232-cable. The transferred data can also be
sent to other calculation software as Excel ... The standard software is in
English language
(others are available (French, German ...). |
 |
|
-RS-232-USB-Adaptor
(RS232-USB)
In case your PC or Portable uses USB-Inter-faces, you can use the adaptor in connection
with the standard rs-232-cable. A small software (covering
all the actual drivers) is included. |
 |
|
-Printer
(PCE-TDP)
The printer is used for direct output of weighing data.
It will be delivered including rs-232-cable and net
adaptor.
- thermal paper / paper width 112 mm
- 230 V / 12 V - Adaptor
|
 |
|
-Aluminium
Sample Pans (PCE-MB-PS)
(Pack of 50)
Can be used several times if not having glueing materials on it
(after cleaning).
- Diameter: 100 mm |
 |
|
-Glass Fiber
Filters (PCE-MB-GF)
(Pack of 100)
- Chemical resistant
- Usable for splashing materials |
 |
|
|
|
