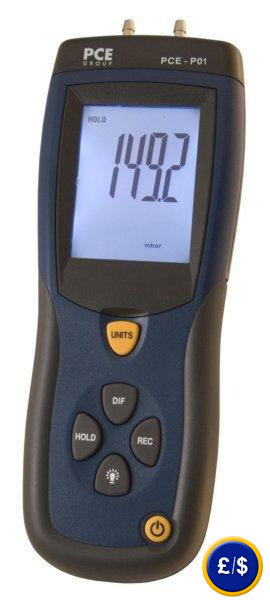

Differential Pressure Gauge PCE-P01/ P05
differential Pressure Gauge with a measuring range from -137 to +137mbar (PCE-P01/ 05)
or -344 to +344 mbar (PCE-P05) / 11 units selection / software included

The differential Pressure Gauge PCE-P01/ P05 is a robust, compact and broad device to measure pressure with 11 different units. The differential Pressure Gauge PCE-P01/ P05  is suitable for a complete documentation of your measurements. Other fields of use of this differential Pressure Gauge PCE-P01/ P05 are, for example, the checking of the input/output of liquefied gas. On its large display you can see the current measuring value, maximum, minimum and mean value at the same time. If you wish to find or document pressure oscillations, you can use the software to transfer measuring values to a PC (every second) and view them as a chart or a graphic. For further information on the differential Pressure Gauge PCE-P01/ 05, please read the following technical data or call our hotline: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703 or follow the link to general information on pressure gauges. Our engineers and technicians will gladly advise you with the differential Pressure Gauge PCE-P01/ 05 or all other products in the terms of regulation and control, scales and balances of PCE Instruments.

Further information on the differential pressure gauge  Read / print the user manual of the differential Pressure Gauge PCE-P01/ 05  CE certificate for the differential pressure gauge PCE-P01/ 05  Video of the differential pressure gauge PCE-P01/ 05  More pictures of the differential pressure gauge PCE-P01/ 05  Technical specifications for the differential pressure gauge PCE-P01/ 05

Getfurther information on the differential Pressure Gauge PCE-P01/ 05

- Very easy to use
- Measurement of differential and static pressure
- Max., min., and mean values are displayed
- Measurement range depending on the model

- Backlight On/Off
- Mains component for long-term measurement
- Software and USB cable included

- "HOLD" function

Technical data of the differential Pressure Gauge

Measuring range

PCE-P01

PCE-P05

inH2O

55,40

138,30

psi

2,000

5,000

mbar

137,8

344,7

kPa

13,79

34,47

inHg

4,072

1,018

mmHg

103,4

258,5

ozin²

32,00

80,00

ftH2O

4,612

11,53

cmH2O

140,6

351,5

kgcm²

0,140

0,351

bar

0,137

0,344

Resolution

inH2O

0,01

0,1

psi

0,001

0,001

mbar

0,1

0,1

kPa

0,01

0,01

inHg

0,001

0,001

mmHg

0,1

0,1

ozin²

0,01

0,01

ftH2O

0,001

0,01

cmH2O

0,1

0,1

kgcm²

0,001

0,001

bar

0,001

0,001

Maximum load

689 mbar

1378 mbar

Accuracy (at 25 °C)

±0,3 %

Linearity

±0,2 %

Response time

approx. 0,5 sec.

Operating temperature

+0 ...+50 °C

Storage temperature

-10 ... +60 °C

Medium

CO2 and non-explosive gases

Saving interval

1 sec ... 24 h adjustable

Display

Dual-LCD

Dimensions

210 x 75 x 50 mm (H x W x D)

Weight (excluding batteries)

650 g

Power supply

Battery: 1 x 9 V monobloc battery
Mains adaptor: DC9V, 500 mA

Software of the differential Pressure Gauge

The Software that is included in the delivery content comes with a USB-cable that gives you the chance to save and store the measuring data. In addition to that the device offers the possibility of the real-time recording. To do this the measurement device via USB to your computer and start the saving process of the data with your adjusted measurement interval. Afterwards you can immediately calculate the mean and with the software or export the data into an Excel-sheet. the English software is also easily operable for people without a lot of knowledge in English.

Here you see a picture of the operating software that cain be used in combination with the differential Pressure Gauge
Software for the differential Pressure Gauge

Use of the differential Pressure Gauge

Measurements of the differential pressure can be done with the differential pressure gauge
Here you can see the differential Pressure Gauge while it is used to measure the differential pressure on a vacuum pump.

Here the differential Pressure Gauge PCE-P01/ 05 and its pins.
Here you can see the pins of the differential Pressure Gauge.

Delivery content of the differential Pressure Gauge

1 x differential Pressure Gauge PCE-P01 (-137 ... +137 mbar) or differential Pressure Gauge PCE-P05 (-344 ... +344 mbar), 4 x 30 cm silicon pipe, 1 x software incl. USB-cable, 1 x 9 V monobloc battery, 1 x 9 VDC mains adaptor, 1 x plastic carrying case, 1 x user manual

Warning!

An overload will destroy the pressure sensor of the differential pressure gauge.

Additional accessory for the differential Pressure Gauge

ISO calibration certificate
For companies that wish to include this accurate scale in their set of internal testing tools or for annual recalibrations. The ISO certificate includes a laboratory calibration and a control document with all the measuring values. Customer's name and details are included.

ISO calibration certificate for the differential Pressure Gauge PCE-P01/05

Additional advice and information on the differential Pressure Meter
