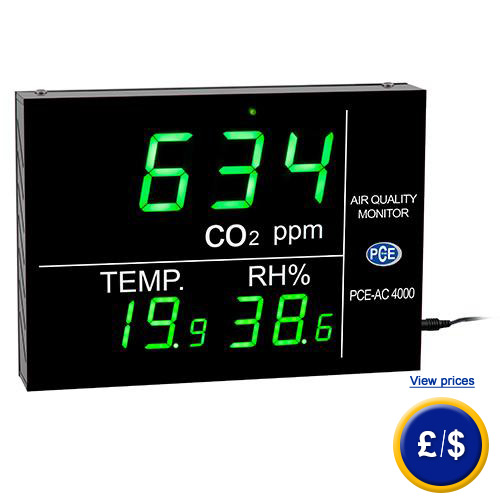

CO2 Display PCE-AC 4000
CO2 display to determine CO 2 concentration, humidity and temperature indoors /
CO 2 measurement range of 0 ... 9,999 ppm / temperature measurement range -40 ... +85 °C / large, clearly readible, three-colored LED display / simultaneous display of all parameters

The CO2 display PCE-AC 4000 is an ideal device to monitor the air quality indoors. The CO2 display PCE-AC 4000 is easy to navigate and measures in addition to the CO2 concentration also the  temperature and relative humidity. The CO2 display provides important information about the air condition and quality in classrooms, offices, conference rooms, auditoriums, hospitals, restaurants and any other public or private space. Ideal conditions in inner spaces can be very crucial to assure effective working and learning. Even with a CO2 level above 1500 ppm the first symptoms of tiredness begin to occur. Thus the CO2 display shows the air quality at any time. If there are any questions about this CO2 display PCE-AC 4000, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding all Air condition meters and all products in the field of measuring instruments, regulation and control and scales.

- CO2 measurement range 0 ... 9,999 ppm
- Temperature range -40 ... +85 °C
- Relative humidity 0 ... 99.9 %

- Three-colored LED lights
- Simultaneous display of all parameters
- Large, clearly readible display

Technical Specifications of the CO2 Display

Parameter

CO2, temperature, humidity

Measurement range

CO2: 0 ... 9,999 ppm
Temperature:-40 ... +85 °C
Humidity: 0 ...99.9 % r.H.

Accuracy

CO2: 400 ... 5000 ppm (± 30 ppm ± 3 % of rdg)
Temperature: ± 0.6 °C (-20...50 °C),
otherwise ± 1.2 °C
Humidity: ± 3 % r.H. (at +25 °C)

Resolution

CO2: 1 ppm
Temperature: 0.1 °C
Humidity: 0.1 %

Display

three-color-LED lights
red > 2000 ppm
yellow > 2000 ppm > 1000 ppm
green < 1000 ppm

Environmental conditions

Temperature: 0 ... +50 °C
Humidity: < 80 % rH
Storage: -40 ... +70 °C

Dimensions

300 x 215 x 50 mm

Weight

1.3 kg

Power Supply

12 V DC adapter

Delivery Content:
1 x CO2 display PCE-AC 4000, 1 x 12 V adapter, instruction manual
