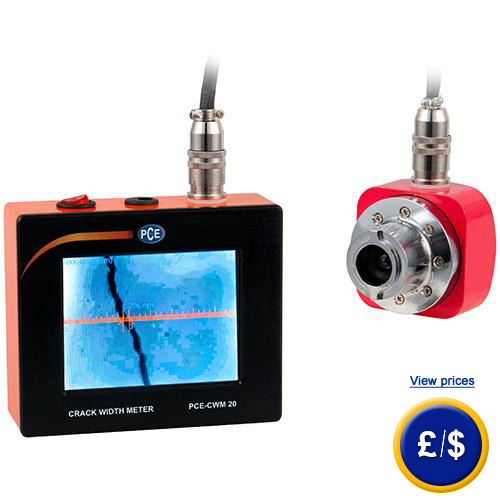

Crack Width Meter PCE-CWM 20
Crack width meter to determine the width of a crack inside a variety of materials / Maximum crack width up to 8 mm / USB interface / colored LCD with touch screen /
with Windows system software / saving images in real-time speed

The crack width meter PCE-CWM 20 is a measuring device designed to determine the crack width in various materials. The crack width meter can be applied to measure the crack width within bridges, tunnels, buildings, plaster or on metallic surfaces. The delivery contains a hand-held device and a sensor with microscopic enhancement connected through a one meter long cable. The device of the crack width meter features a touch-screen. The system software of the crack width meter is Windows. The image in the display screen is shown with real-time speed and can be saved on the device's internal memory. All the saved images can be reviewed respectively either on the device itself or via USB transfer to a computer. If there are any questions about this Crack Width Meter PCE-CWM 20, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding all Air condition meters and all products in the field of measuring instruments, regulation and control and scales.

Get more information on the Crack Width Meter  User manual for the Crack Width Meter  EC certificate for the Crack Width Meter  Video for the Crack Width Meter   Vibration Data Logger Crack Width Meter  Technical specifications of the Crack Width Meter

Crack Width Tester PCE-CWM 20

- Max. crack width up to 8 mm
- USB interface
- Imaging and measurement with real-time speed

- Colored LCD with touch screen
- Windows system software
- Data memory for up to 3000 images

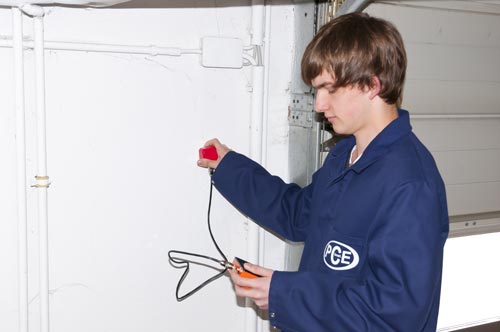

Crack Width Meter PCE-CWM 20 application

Technical Specifications of the Crack Width Meter

Recognition depth

0 ... 8 mm

Accuracy

± 0.02 mm

Image enhancement

40 x / 20 x / 13 x / 10 x

Interface

USB

Data Memory

> 3000 images

Image format

BMP format, 24 bit color, 320 x 240 pixels

Operating temperature

-20 ... +60 °C

Power Supply

lithium battery or adapter

Dimensions

device: 113 x 70 x 16.5 mm
sensor: 48 x 56 x 58 mm

Weight

device: 100 g
sensor: 100 g

Crack Width Meter PCE-CWM 20: measuring sensor
The measuring sensor of the crack width meter PCE-CWM 20 features lights

Crack Width Meter PCE-CWM 20: touch screen
The crack width meter PCE-CWM 20 with its touch screen

Crack Width Meter PCE-CWM 20: measurement in real-time speed
Measurements and images are shown at the screen of the crack width meter PCE-CWM 20 in real-time speed.

Crack Width Meter PCE-CWM 20: transfer images to computer
The saved images of the crack width meter PCE-CWM 20 can be transferred to a computer via USB, where they can be reviewed.

Delivery Content:
1 x crack width meter PCE-CWM 20
1 x sensor
1 x 1m connecting cable
1 x USB cable
1 x adapter
1 x balloon
1 x software
1 x transportation case
1 x instruction manual

Crack Width Meter PCE-CWM 20: Delivery Content
