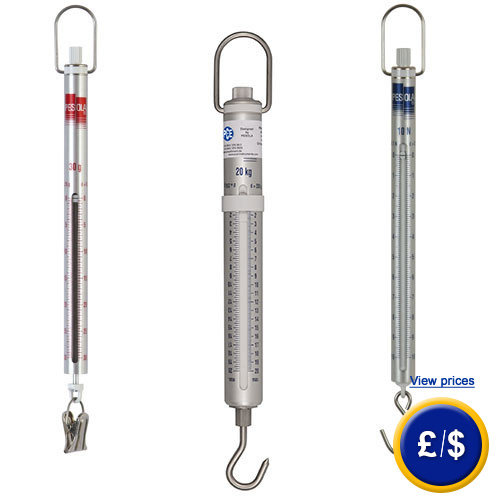

Force Gauge with Newton- Division
Force gauge with newton- division / 9 different models

The force gauge is characterized by its high precision: The maximum deviation is ± 0.3 % from load. Zero drift less than 20 %. What’s more, every force gauge can be quickly converted from being a measuring device for tractive force to being a measuring device for compressive force. For this purpose, all that is needed is a compressive-force-conversion-kit. If you have any further questions concerning the Force-gauge with gram-interval, pleas take a look at the following technical data or call our hotline: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Out technicians and engineers would be pleased to inform you concerning the force gauge and all other products in terms of regulation and control, or scales and balances of PCE Instruments.

Force Gauge with Newton- Division  EC certificate for the Force Gauge with Newton- Division  Video for the Force Gauge with Newton- Division  Force Gauge with Newton- Division: Software.  Technical specifications for the Force Gauge with Newton- Division  Information for the Force Gauge with Newton- Division

Force Gauge with Newton- Division

- easy handling
- mechanical, robust, long-living

- high-quality material and design
-
perfect adjustability

Compressive-force-kit:
- easy, fast assembly/conversion
- modular conception

Technical specification

The adjoining sketch merely serves to illustrate the measures.
The corresponding indices are shown in the following chart.

Lm = length above all (extended)
L0 = length above all (unextended)
S = Scale length
d = calibre
S = hook-formation (to receive weight)

Force Gauge with Newton- Division Drawing

capacity

interval

hook

S

LO

Lm

Lp

d

N

N

form

mm

mm

mm

mm

mm

1

0,01 N

80

225

305

-----

12

3

0,02 N

10

225

325

300

12

6

0,05 N

10

225

325

300

12

10

0,1 N

10

225

325

300

12

25

0,2 N

10

225

325

300

12

50

0,5

140

370

510

440

32

100

1

140

370

510

440

32

200

2

140

370

510

440

32

500

5

90

370

510

370

32

Sample applications

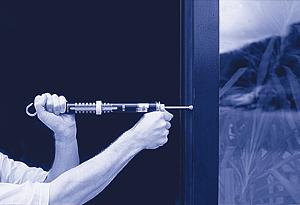

Force Gauge with Newton- Division Compressive Force

Force Gauge with Newton- Division Drag Force

Information on a digital force gauge to perform similar measuring tasks can be found here.

Delivery content

1 x force gauge with newton-division (Model 1 N, or …….500 N), instruction manual

Additionally

Compressive-force-kit for force gauge for more than 300 g
(to convert from drag force measurement to compressive force measurement)

Technical information about the Force Gauge with Newton- Division return to homepage.
