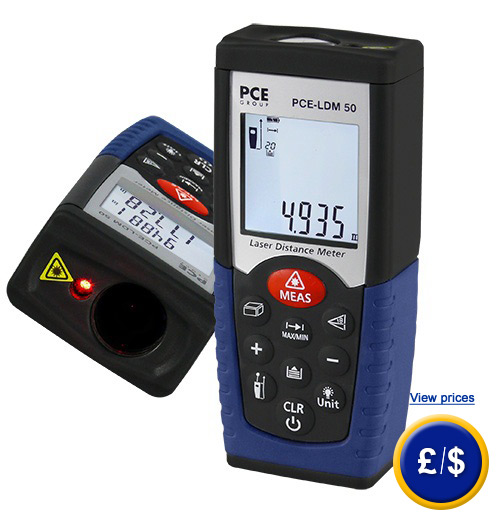

PCE-LDM 50 Laser Distance Meter
Handheld laser distance meter for accurate measurements up to 50 m / with several functions: addition / subtraction / calculation of surfaces / calculation of volume / Pythagoras theorem / suitable for quick, accurate and reliable measurements

The PCE-LDM 50 Laser Distance Meter measures any distance quickly and accurately. The laser distance meter is a very easy-to-use device suitable for any measuring work. By pressing just one button on this laser distance meter, you will be able to determine measuring results within seconds. Thanks to the high accuracy of the laser you will be able to obtain professional measurements. The laser distance meter measures any surface with the highest accuracy, regardless whether it is tiling, carpeting or parquet. The laser distance meter is very useful when calculating the amount of material that is for example required for a floor. In areas with many angles and corners, you will quickly obtain accurate measurement values, since the PCE-LDM 50 laser distance meter calculates these values and results. Moreover, this laser distance meter comes with a large LCD display, which guarantees an exact reading of the measured values. The PCE-LDM 50 Laser Distance Meter uses the function principle according to Pythagoras. Another professional distance meter is the Disto D8 which stands out for its high accuracy as well as a built-in BLUETOOTH interface for data to be transferred to a PC or PDA. At this link you will find an overview of the distance meters that best suit your needs. In case that you have any further question concerning the PCE-LDM 50 Laser Distance Meter, read the following technical data or contact our hotline: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you about our laser distance meter or any other product in the field of regulation and control or scales and balances of PCE Instruments.

User manual for the PCE LDM 50 Laser Distance Meter   EC certificate for the PCE LDM 50 Laser Distance Meter   Video for the PCE LDM 50 Laser Distance Meter  PCE LDM 50 Laser Distance Meter: Software.  Technical specifications for the PCE LDM 50 Laser Distance Meter  Information for the PCE LDM 50 Laser Distance Meter

Laser Distance Meter LDM-50

PCE-LDM 50 laser distance meter: Large LCD display

PCE-LDM 50 laser distance meter: Large LCD display animation

 - Delivered in a solid carrying case
 - Addition/Subtraction

 - Max. and Min. measurements
 - Continuous measurement
 - Distance measurement
 - Calculation of surfaces/volume

 - Large LCD display
 - The laser pointer shows the measured point
 - Solid enclosure
 - Memory for the last 20 values
 - Auto shut-off to protect battery life
 - Pythagoras theory

Technical specifications of the PCE-LDM 50 Laser Distance Meter

Measurement range

0.05 m to 50 m

Accuracy

±1.5 mm

Resolution

1 mm

Laser

class 2

Laser type

635 nm,< 1 mW

Auto shut-off

after 180 s

Continuous measurement (tracking function)

yes

Addition/subtraction

yes

Pythagoras test (2 points)

yes

Protection

IP54

Memory

yes, the last 20 values

Power

2 x AAA batteries

Battery life

up to 5000 measurements

Dimensions

110 x 45 x 27 mm

Weight

135 g

Storage temperature

-10 ... 60 ºC

Operating temperature

0 ... 40 °C

Images of the use of the PCE-LDM 50 Laser Distance Meter

The PCE-LDM 50 laser distance meter measuring a wall distance Another type of measurement with the  PCE-LDM 50 laser distance meter
Laser distance meter measuring a wall distance Door measurement with the help of a laser distance meter
The PCE-LDM 50 laser distance meter also with Pythagoras's test.
Laser distance meter also with Pythagoras's test
The PCE-LDM 50 laser distance meter to be used outside. The PCE-LDM 50 laser distance meter performing a measurement.
Laser distance meter in outdoor use Height measurement with laser distance meter

Delivery content of the Laser Distance Meter:

1 x PCE-LDM 50 Laser Distance Meter, 2 x AAA batteries, 1 x carrying case, 1 x carrying strap and user manual.

Options

Laser-beam goggles: to improve the identification of the laser spot with the PCE-LDM 50 laser distance meter.

Laser-beam goggles for the  PCE-LDM 50 laser distance meter.
PCE-LDM 50 laser distance meter: technical information. Return to homepage.

- TLM-210i series Laser Distance Meter
  (laser distance meter to determine distances accurately: 0.05 ... 100 m)

laser distance meters to determine distances accurately: 0.05 ... 100 m

- Disto DXT series Laser Distance Meter

(comfortable and precise laser distance meter up to 70 m / multiple functions)

comfortable and precise laser distance meters up to 70 m / multiple functions

- Leica Disto D5 series Laser Distance Meter
  (laser distance meter for convenient and accurate measurements of up to 200 m)

laser distance meters for convenient and accurate measurements of up to 200 m

- Leica Disto D8 series Laser Distance Meter
  (laser distance meter with a level of 360 °, accuracy of ± 1 mm)

laser distance meters with a level of 360 °, accuracy of ± 1 mm

- PCE-LRF 600 series Laser Distance Meter
  (laser distance meter for distances of up to 600 m)

laser distance meters for distances of up to 600 m

- DLS-C series Laser Distance Meter
  (laser distance meter to determine distances accurately)

laser distance meters to determine distances accurately

- PCE-LDM 1 series Laser Distance Meter
  (laser distance meter for internal and external diameter of round material)

laser distance meters for internal and external diameter of round material

- Laser Distance Meter for steady use
  (laser distance meter for monitoring equipment and standard signals)

laser distance meters for monitoring equipment and standard signals
