Pellets Moisture Tester PCE-PEL-20
Mobile Pellets Moisture Tester PCE-PEL-20 / sensor length 1000 mm / battery- powered / measuring range 10% to 20 % /  simple, low cost and quick measuring

The pellets moisture tester pce-pel-20 is designed in collaboration with biomass power plant operators. Since the heating value of pellets depends strongly its moisture the pellets moisture tester can be applied in order to reach as high efficiency as possible. The pellets moisture tester performs a moisture detection due to its resistance. It means that the pellets moisture meter collects the resistance of the test sample in order to gain information about its moisture due to its characteristic curve.

Therefore it is of great importance to adjust the appropriate characteristic curve and temperature of the pellets moisture meter. The pellets moisture tester is applicable for comparative measurements of pellets that are made of either sawdust, wood chips, straw, hay, scraps of pellets, shells of sunflowers, buckwheat, corn, soya etc. Therefore simply plunge the 1000 mm long sensor-probe into the pile of pellet and the measuring data will be collected after its stabilization. The pellets moisture tester only measures at the tip of its sensor-probe. It is advised to perform several measurements at different points in order to achieve an adequate overview of the water content of the pile. Thus the pellets moisture tester pce-pel-20 helps providing quick, easy and low cost information about pellets moisture.

If there are any questions about this pellets moisture tester, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all pellets moisture testers and all products in the field of measuring instruments, regulation and control and scales

Pellets Moisture Tester PCE-PEL-20  User manual for the Pellets Moisture Tester PCE-PEL-20  EC certificate for the Pellets Moisture Tester PCE-PEL-20  Video for the Pellets Moisture Tester PCE-PEL-20  Pellets Moisture Tester PCE-PEL-20  further Images  Technical specifications of the Pellets Moisture Tester PCE-PEL-20

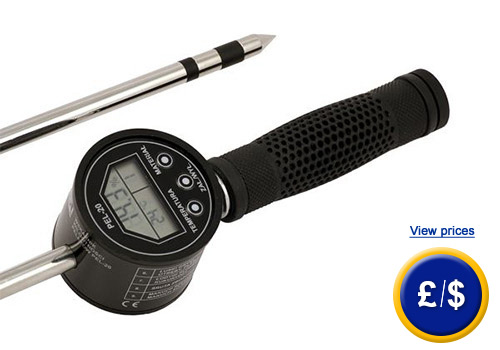

Pellets Moisture Tester PCE-PEL-20

Inline Moisture Measurement for pellets more

- Measuring range from 10 % to 20 %
- Resolution 0.1 %
- 1000 mm measuring sensor

- Simple handling
- LCD display
- Battery powered

Technical Specifications

Measuring range moisture

10 ... 20 %

Resolution

0. 1 %

Temperature compensation

manually, 0 ... +50 °C

Measuring time

approx. 3 sec.

Measuring sensor

Ø 10 mm x 1000 mm, stainless steel

Display

LCD

Power Supply

12 V battery type 23A

Life time battery

Approx. 10,000 measurements

Automatic switch-off

yes, after approx. 10 minutes

Dimensions of transportation case

 Ø 80 mm x 12500 mm

Weight

Approx. 900 g

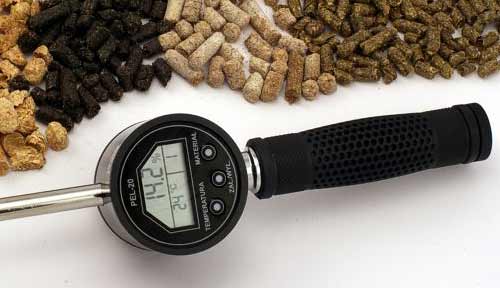

Pellets Moisture Tester PCE-PEL-20 application

Pellets Moisture Tester PCE-PEL-20 with different types of pellets

Delivery content

1 x pellets moisture tester PCE-PEL-20, 1 x battery, 1 x instruction manual, 1 x transportation case
