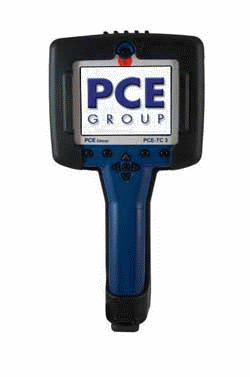

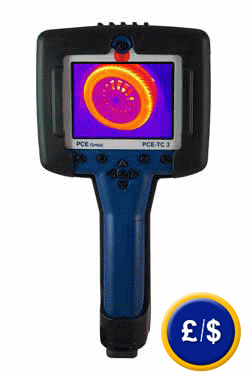

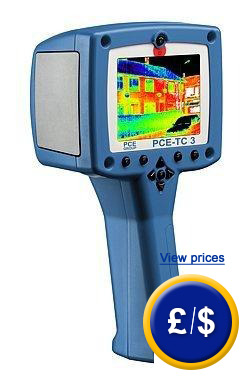

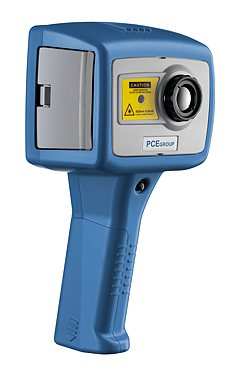

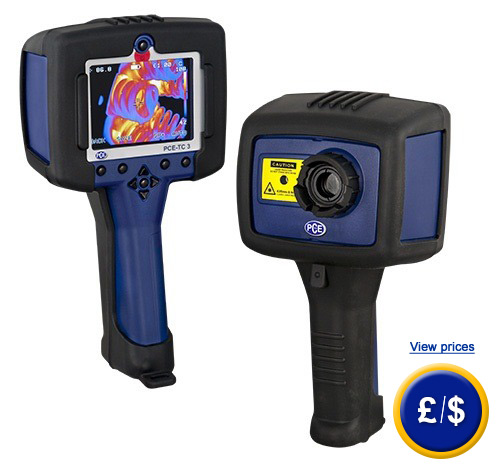

Thermal camera for professionals PCE-TC 3
with high resolution and comes with software
At the core of this thermal camera is an uncooled focal plane array with a
resolution of 160 x 120 pixels. The thermal camera
PCE-TC 3 is ergonomical and easy to use with only one hand.
Thanks to its light weight of only 750g, it's ideal for the analysis of machines and systems, for thermographics
in construction and many other applications. The
thermal camera PCE-TC 3 offers a measurement accuracy of ±2ºC or ±2%
within a temperature range of -10ºC to 250ºC, and
with a sensitivity of only 0.15ºC. Two moveable points can be
manipulated in situ on the camera's colour display
upon which the corresponding temperature is
shown. This device also
allows the user to automatically see the Hot-Spot and Cold Spot, and
can measure the difference in temperature. With these top-of-the-range functions, irregularities can
immediately be spotted and appropriate measures can be taken in situ. The integrated laser pointer allows for
the device to be accurately aimed to ensure that the correct area is being measured.
Images that are saved to the camera's SD memory card can be transferred to a computer via the USB port or
it is also possible to take
measurements while the camera is connected to a computer. Software comes included and it does more than just allow
for analysis of thermal images: it permits the user to generate reports without extensive knowledge of or
experience using the device.
Here you will find other thermal cameras with
similar characteristics to this one. This link
shows an overview of all the thermal cameras that you could need. We
would gladly to assist you in
choosing the best device to suit your requirements.
View a video presentation for the
thermal camera PCE-TC 3 for professionals
This video shows the functionality of the
thermal camera PCE-TC 3 and image quality. It presents the
different types of image scales, network connections, USB and method of storing images to the SD memory card.
Accurate measurement of
temperature on the display
Two moveable measurement points
Automatically locates hot point,
cold point and point of average value
Large 3.5" LCD with back
lighting
High resolution of 160 x 120 pixels
Temperature range: -10 to 250°C
Accuracy: maximum ±2°C or ±2%
Uncooled focal plane array for
maintenance free work
Perfectly balanced, preventing
wrist fatigue when used over extended periods
Ergonomic: Use it with one hand
Light weight: 750g
Laser pointer: Can be aimed exactly at the area to be measured
Memory card for up to 1000 images
Long operating time of up to 6 hours
Data transfer of data: via the USB port to a computer
Software: to analyse data and easily generate detailed reports
Wide range of accessories
View or print the user's manual

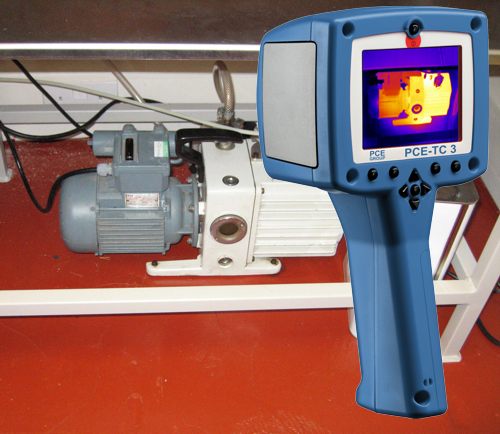

Example of a thermograph of a motor unit and transmission using the
thermal camera PCE-TC 3

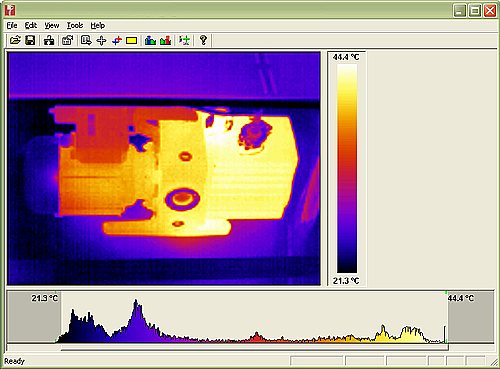

The image shows a thermographic evaluation in software on a computer
Technical specifications
Temperature range
-10 to 250°C
Sensor: uncooled focal plane array
Measurement points / Resolution
160 x 120 pixels (19,200 points)
Accuracy
±2°C or ±2%
Display resolution
192 x 192 pixels
Lens (FOV)
20° x 15°
Focus
manual
Measurement distance
30cm to infinity
Measurement functions
two moveable points, measures difference
Temperature resolution
0.15ºC
Image frequency
7.5 Hz
Spectral range
8 to 14µm
Emissivity
0.2 to 1.0 (adjustable in
steps of 0.01)
Memory
MMC or SD memory card
Port
USB type B
Display
3.5" LCD, with back lighting
and four adjustable colour palettes: rainbow, iron bow,
hc rainbow and grey scale
Temperature units
ºC, ºF or K
Laser pointer
class II 1mW / 635nm
Operating temperature
-15 to 45ºC
Storage temperature
-20 to 70ºC
Air
humidity
10 to 90% r.h. without
condensation
Power
ion-litium rechargeable
Operating time
4 to 6 hours
Enclosure
plastic
Tripod screw
1/4"
Weight
750gr
Dimensions
230 x 120 x 110mm
Comparison of the
thermal camera PCE-TC 3's technical
specifications with those of
the competition Here is an extract of the
comparative table.
Here is the complete table.
Manufacturer
PCE
RAYTEK/FLUKE
FLIR
Models
PCE-TC
3
Ti20
INFRACAM
Measurement range
all the display
only central area
only central area
Accuracy
±2% or ±2°C
±2% or ±2°C
±2% or ±2°C
Cursor
two moveable
one
fixed
one
fixed
∆T (difference
in T)
yes
yes
yes
Resolution (pixels)
160 x 120
128 x 96
120 x 120
Temperature resolution
0.15°C
0.20°C
0.20°C
Image frequency
7.5 Hz
9 Hz
9 Hz
Weight
0.76kg
1.2kg
0.55kg
Lens (FOV)
20 x 15
20 x 15
25 x 25
Memory
1000
high-resolution images
50 images
50 images
Laser pointer
yes
yes
yes
Temperature range
-10 to 250°C
-10 to 350°C
-10 to 350°C
Image definition
excellent
good
excellent
Display size
3.5" (89mm)
3" (64mm)
3.5" (89mm)
Rechargeable
ion-lithium
ion-lithium
or 6 AA batteries
ion-lithium
Operating time
6 h
3 h
7 h
The thermal camera
PCE-TC 3
in use
Thermal tracks on pavement
taken by the thermal
camera
The same image in grey scale
taken by the thermal
camera
Thermal charge of a wheel
taken by the thermal
camera
The same image in grey scale
taken by the thermal
camera
Thermal image of a building
front
taken by the thermal
camera
Evaluation of an image
taken by the thermal
camera
Another presentation of
colour of a building
facade taken by the thermal camera
Image of high
thermal radiation from
a window
taken by the thermal
camera
Image of thermal radiation from a
building
taken by the thermal
camera
Image of thermal leaks from a
window
taken by the thermal
camera
Picture of the thermal
camera protecting case
included in the shipment
Protecting case covering
the thermal camera

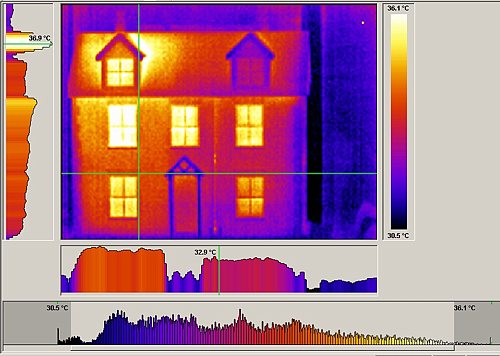

Software
The images captured are sent
from the SD memory card to a computer. The software allows
access to all the pixels in the image and the
opportunity to adjust the parameters such as emission
value, temperature, humidity and distance.
Features
• Determines temperature at all points
• Determines minimum, maximum and average temperature
• Selection of colours available
• Possibility to change Level and Span
• Automatically compiles models and reports
• Results table with automatic indication of date, time, user
and event
Contents
thermal camera PCE-TC 3, rechargeable battery, charger,
hand strap, software, USB cable, SD memory card,
carrying case and user's manual
Optional accessories
ISO calibration certificates
Software
Charger for a car lighter
Replacement rechargeable
battery
ISO calibration and certification
An ISO calibration certificate can be
acquired for this thermal camera. In a laboratory certification and
calibration for the ohmmeter, a certificate of control is issued with
the details of your company so you can register the devices in their
intra-corporate consortia ISO control instruments. This document also
certifies that such devices may again be adjusted according to
national standards. Below you will find more information on calibration:
Calibration: The control of the accuracy
in the measurement magnitudes of the thermal camera without the intervention
of the measurement system. Calibration also refers to the determination
of the systematic deviation of the thermal camera display in relation to the
real value of the measured magnitude.
Calibration document or certificate:
Document with the technical properties of the thermal camera according to the
national organization of measurement.
Calibration interval: To perform
correct measurements, the thermal camera must be calibrated at regular
intervals. This period of time is called calibration interval. It's
difficult to determine this period with accuracy but you should consider
the following factors:
•
Performance of the measuring instruments
• Frequency of use
• Operating conditions
• Previous calibrations stability
• Measuring accuracy required
• Determining factors of the quality control systems used by companies
This means that the user is responsible for checking and controlling the
interval between calibrations. We recommend that this calibration
internal should be between 1 and 3 years. We also offer the user our
expert advice to solve any questionss related to the process of establishing
calibration intervals or any other technical questions.
Take into consideration:
The accuracy of the calibration depends on the thermal camera and the sensor
combined. In the case of the PCE-TC 3 thermal cameras, this means that the
calibration should be done for up to four temperature sensors.
Here you will find an overview of all the
measuring instruments available at PCE
Instruments.
