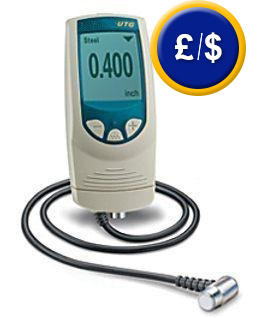

PT-UTGM Material Thickness Meter
Material Thickness Meter with adjustable acoustic velocity and sensitivity /
data logger for 100.000 data and USB interface /  fast-measuring-mode /
automatically and permanent self-calibrating

The Material Thickness Meter PT-UTGM is an ultrasonic speed measuring device for detecting material thickness and wall thickness. Included in delivery with the Material Thickness Meter is a 5 MHz probe. This cover nearly 95 % of all possible applications. Therefore the use of the other probes of the Material Thickness Meter is not necessary. The Material Thickness Meter with the adjustable ultrasonic speed is used for accurate measurements of low carbon steel and carbon steel also aluminum, titan, plastics, ceramic, glass, ... and many other materials. The Material Thickness Meter also offers the option of accurate material thickness measurements of coated materials. Because of his multiple echo it is possible to diagnose cursorily coatings. The Material Thickness Meter offers an adjustable sensitivity, you also can diagnose PE-coated steel tubes of its material thickness. The measured data can be stored in the device and transferred by the optional software-kit to a PC. The data also can be transferred to a processing program, e.g. MS Excel. Another advantage of the Material Thickness Meter PT-UTGM is that its menu is available in several languages, e.g. German, English, Spanish, Italian, French, ... The software will be delivered in your national language when the device is ordered. If there are any questions about this Material Thickness Meter, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all thickness meters and all products in the field of measuring instruments, laboratory equipment, regulation and control and scales and balances of PCE Instruments Ltd.

Material Thickness Meter PT-UTGM  User manual for the Material Thickness Meter PT-UTGM  EC certificate for the Material Thickness Meter PT-UTGM  Video for the Material Thickness Meter PT-UTGM  Material Thickness Meter PT-UTGM  further Images  Technical specifications of the Material Thickness Meter PT-UTGM

Material thickness meter PT-UGM

  PT-UTGM1-E Standard
- automatically and permanent self-calibrating
- easy menu navigation
- lighted display
- fast-measuring-mode
- data logger for 250 measurements

  PT-UTGM3-E Advanced
- color LCD-display
- scan function
- data logger for 100.000 measurements
- Bluetooth interface
- photo upload

Technical Specifications

Model

PT-UTGM1-E
Standard

PT-UTGM3-E
Advanced

Data logger

250 measurements

100.000 measurements

Hi Contrast LCD Display

Monochrome

Color

Interface

USB

USB / Bluetooth

Mode

Eco simple

Eco multiple

Measurement range

2.50 ... 125 mm

2.50 ... 60 mm

Sensor head (incl.)

5 MHz, diameter of the probe~ 13 mm

Resolution

0,01 mm

Surface temperature

- 10 ... +50 °C

Calibration

2.5 / 5 / 7.5 / 10 and 12.5 mm

Accuracy

± 0.03 mm

Measurement unit

mm/inch (to choose)

Ultrasound velocity

1250 ... 9999 m/s

Measurement rate

normal mode: 3/s
scan mode: n/a

Alarm function

when the selected lower and upper levels are exceeded

Data output

USB / Infrared

Power

3 x 1.5 V AA batteries

Dimensions

146 x 61 x 28 mm

Weight

165 g (with battery)

Shipment of the Material Thickness Meter PT-UTGM
Shipment of the Material Thickness Meter PT-UTGM.

The Material Thickness Meter PT-UTGM in application
The Material Thickness Meter PT-UTGM in application.

Scan mode

The PT-UTGM Material Thickness Meter can be used in both normal and scan mode (only for the standard model). With the scan mode it is possible to measure large material areas. The PT-UTGM Material Thickness Meter can save up to 250 measurement values in its internal memory (with a measurement rate of 20 values every second).
It is very important to use the coupling gel properly during the measurement; in the normal and scan mode. This ensures a good contact with the sensor and protects the surface.

Use of the PT-UTGM Material Thickness Meter in a ship propeller.
The upper image shows the use of the PT-UTGM Material Thickness Meter in a ship propeller.

Recalibration of the PT-UTGM Material Thickness Meter.
A recalibration of the Material Thickness Meter can be performed with the aid of a calibration block.

Delivery content

1 x PT-UTGM1-E or PT-UTGM3-E material Material Thickness Meter with an extern probe
1 x sensor head (5 MHz sensor) with 1.2 m cable
3 x AAA batteries
1 x protective rubber holster with belt clip
1 x bottle of coupling gel (250 ml)
1 x USB cable
1 x carrying case
1 x user manual

Additional accessories

Coupling gel of Material Thickness Meter PT-UTGM.
Coupling gel

Software of of Material Thickness Meter PT-UTGM.
Software

Calibration of Material Thickness Meter PT-UTGM.
Calibration block

further information about the Material Thickness Meter PT-UTGM

from the Material Thickness Meter back to the homepage.

Similar products to the Material Thickness Meter PT-UTGM:

- PCE-TG 100 Material Thickness Meter
  (measurement of wall thickness with a tester for plastic and metal)

Material thickness meter PCE-TG 100

- PCE-TG 110 Material Thickness Meter
  (for wall thickness tests with tester up to 400°C for steel pipes)

Material thickness meter PCE-TG 110

- PCE-TG 120 Material Thickness Meter
  (with a measurement range of 1.0 mm to 30.0 mm and a resolution of 0.1mm)

Material thickness meter PCE-TG 120

- PCE-TG 200 Material Thickness Meter
  (Material Thickness Testers with memory of 4,000 readings, data cable and software)

Material thickness meter PCE-TG 200
