High Voltage Isolation Meter METRISO 5000 A
Analogue high voltage isolation meter run with batteries / for test voltage up to 5000 V and a measuring range up to 1 TOhm / to check isolation resistance at lines, prefabricated parts, construction material, compounds / analogue display

This analogue high voltage isolation meter is equipped with adjustable high voltages of 100 V, 250 V, 500 V, 1000V (according to EN 61 557 part 1) and 1500 V, 2000 V, 2500 V, 5000 V. This isolation meter is a standard isolation resistant measuring device or as a detector for breakdown at electric lines (on machines, transformers, cables as well as electric facilities, e.g. locomotives, trams, vessels). The high voltage isolation meter can also be used to check isolator panels, compound material and synthetic panels on isolation resistance for respective electric conductivity of different construction materials. The maximum isolation meter can be read at the analogue display. By means of voltage measuring ranges the zero potential of test objects in networks up to 2 kV can be determined. This is important in terms of isolation resistance detection since external voltages falsify the measuring data. Capacitive test objects, e.g. cables and windings that can be charged on the test voltage, will discharge due to this high voltage isolation meter. Therefore the descent of the voltage can directly be monitored due to needle deflection at the meter. The highly isolated measuring lines are plumbed for safety- and measuring- related causes. Thus an endangerment by accidental pulling the cable, e.g. during recharge through capacitive test objects, can be avoided. If you have questions concerning the high voltage isolation meter, please take a look at the following technical data or call or hotline: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding the high voltage isolation meter or any other product in terms of regulation and control or scales and balances by PCE Instruments.

User manual for the High Voltage Isolation Meter METRISO 5000 A  EC certificate for the High Voltage Isolation Meter METRISO 5000 A  Video for the High Voltage Isolation Meter METRISO 5000 A  High Voltage Isolation Meter METRISO 5000 A: Software.  Technical specifications for the High Voltage Isolation Meter METRISO 5000 A  Information for the High Voltage Isolation Meter METRISO 5000 A

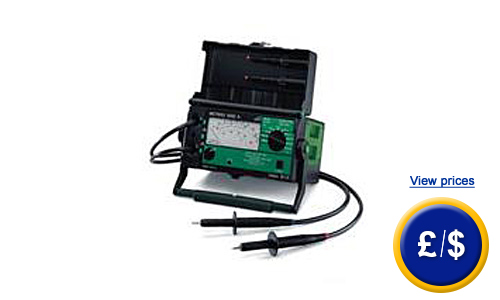

High Voltage Isolation Meter METRISO 5000 A

- Very clear logarithmic display
- Test voltages: 100 V, 250 V, 500 V, 1000 V,
  1500 V, 2000 V, 2500 V, 5000 V
- Measurements up to 2000 V according to DIN
  VDE 0431

- Measuring range 100 kΩ...100MΩ (1000 V)
- Voltage measuring up to 2000 V
- Guard connection to eliminate surface currents
- 5 m extension line as equipment
- Current supply via batteries

Technical Specification of the Handheld Laser-Particle Counter P611

Isolation resistance

Standardisation

VDE 0413

Nominal and off-load voltage (UN/U0)

Scale 1: 100 V / 250 V and 500 V / 1000 V
Scale 2: 100 V / 250 V / 500 V / 1000 V
Scale 3: 1500 V / 2000 V / 2500 V / 5000 V

Measuring range

Scale 1: 100 kΩ ... 100 MΩ
Scale 2: 10 kΩ ... 1 TΩ
Scale 3: 10 kΩ ... 1 TΩ

Nominal current IN

Scale 1: 1 mA
Scale 2: 1 mA
Scale 3: 0.7 mA/ 0.5 mA/ 0.4 mA/ 0.1 mA

Short-circuit current IK

All scales: 1.3 mA

Intrinsic error

Scale 1: ±2,5%
Scale 2: ±5.0 %
Scale 3: ±5.0 %

Direct and alternating voltage

Measuring range

0...2000 V AC/DC

Frequency

15...500 Hz

Internal resistance

5 MΩ

Max. approvable voltage

2200 V AC/DC max. 10 sec

Intrinsic error

±5.0 % (applied on scale length)

General characteristics

Power supply 6 x 1.5 V mono-cell according to IEC R20
(6xD-size)
Battery life-time 7500 measurements at 1000 V test voltage
with measuring resistance of 1 MΩ
Working temperature range 0 °C ... +40 °C
Relative humidity max. 75 %, bedewing can be excluded
Dimensions 290 mm x 250 mm x 140 mm
Weight 3.4 kg with batteries
Protection/ Standardisation Protection type class II, 2000 V CAT II or 5000 V,
CAT I, IP 52, transient emission IEC/EN 61326-1,
immunity IEC/ EN 61326/A1, IEC 61010-1, EN
61010-1, VDE 0411-1, DIN VDE 0413 part 1, IEC
61557, EN 61557, IEC/EN 61326-1, IEC/EN
61326/A1, DIN EN 60529, DIN VDE 0470 part 1,
DIN EN 60051

Information about initial and repeat test on power current installations up to 1000 V

- Isolation measuring is performed in a voltage free state.

- Isolation measurement only takes place in ranges that lie in-between the measuring voltage, so
  either switch everything on and measure before and after the switches or bridge all open contacts
  before measurement and measure from feeding.

- If the measuring-circuit contains a capacitive consumer load, discharge after measurement.

- You decide on-site which measuring method to choose. Short-circuit L+N is often more complex
  than separate measurements. Those allow conclusions about isolation of the sole lines and thus
  allow comparisons. Furthermore the isolated measurement of the single lines against PE or
  between one another is an effective method of preventive fire protection. RCDs cannot recognize
  isolation errors between the active lines.

- In case of retest always measure L+N against PE (protection of electronic operation equipment).
  Single pole operation devices are to be tested in TN-S/TT/IT systems then, without switching them
  on.

- In case of TN- systems open N-PE-bridge, in TT-system disconnect neutral conductor.

- In case of measurements of installations with overvoltage arrester (varistor base demand- class B or
  C) those are to isolate earth-face whilst isolation measurement. In case of device protection, e.g.
  socket (requirement class D) - this procedure is not necessary.

- Measuring voltage of 250 V is permitted

- Common values: - at initial test without connected operation medium > 100 MΩ (see therefore as
                             well DIN VDE 0100 part 610)
                           - In case of repeating tests with connected operation devices ~ 300 kΩ.

Delivery content

1 x high voltage isolation meter METRISO 5000 A with plumbed measuring lines and detection tips,
2 x crocodile clips (5 kV- version), 1 x battery slot including batteries, instruction manual

Additional

- 5 crocodile clips (5 kV versions)
- Guard wires with socket and crocodile clips
- 5 m- extension line
- Transportation bag

Further information about the High Voltage Isolation Meter METRISO 5000 A return to homepage.

In the following, you can see further products to the term "isolation meter":

- Isolation Meter PCE-IT55
  (Digital, very robust, for up to max. 2000 MΩ (test voltages of 250, 500 and 1000V)

Isolation Meter PCE-IT55

- Isolation Meter Metriso C
  (for isolation and resistance measurement on equipment, floors / walls, up to 1000 V)

Isolation Meter Metriso C

- Isolation Meter PCE-IT41-Series
  (Professional device for run and isolation even in  high voltage areas up to 10 kV)

Isolation Meter PCE-IT41-Series
