PCE-170A Lux Meter with Built-In Sensor
Lux meter for fast and accurate measurement of light / measurement range from 0.00 to 40,000 lux / silicon photodiode sensor / large 5-digit LCD display / immediate and accurate response / selectable manual or automatic range

The PCE-170A Lux Meter is well-known for its durability as well as its good quality at a good price. The Lux Meter has a wide measurement range. Thanks to its fast response time and compact housing you can use this meter with just one hand. The Lux Meter can be used even by inexperienced personnel. With the Lux Meter you will be able to perform a professional valuation. The lux meter can be widely used within the industrial sector. For example, it is possible to check light conditions in workplaces, warehouses, industries and apartments with the PCE-170A Lux Meter as well as to check light in emergencies. The Lux Meter is an irreplaceable instrument to prevent occupational hazards and it meets the standards. Workplaces will become safer and you will save the expenses. Latest research has discovered that too little as well as too much illumination in a workplace can be harmful for humans. You can also check illumination at home, in your dining-room for instance. The digital Lux Meter measures in Lux units (lumen/m² or lumen/foot²). This solid and portable lux meter provides very accurate results and comes with a zero-reset function when it is on. It also has a sensor with a response curve for all the visible spectrum. Light is measured by means of a silicon photodiode independently from the extension and direction of the light source. The PCE-170A Lux Meter is irreplaceable due to its fast measurement method. If you wish to see another lux meter with internal memory, data cable and software to transfer data to a PC, please click here.

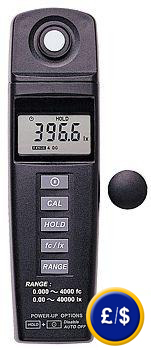

PCE-170A lux meter with built-in sensor comes with a wide measurement range.
PCE-170A Lux Meter

- 5-digit LCD display

- Measurement range from 0.00 to 40,000 lux

- Auto shut-off after 30 min.

- 1 x 9 V battery and carrying case

- Selectable manual or automatic range

- Fast and accurate response

- Auto reset to zero
- Selectable units: lx and fc
(fc=candlefoot; 1 fc=10,764 lx)
- Sensor: silicon photodiode
- Corrected cosine angle
- HOLD function

measuring-instrument-for lightness-pce-170a-in-use

The luminance meter is suitable for a variety of commercial and industrial applications such as the optimization of the lighting conditions at individual workstations, in open plan offices, warehouses or in industrial and residential buildings

Technical specifications
Ranges 0.00 ... 40,000 lux
0.000 ... 4000 fc

Resolution

0.01 lux/0.001 fc

Accuracy

±3 % of the measurement value + 5 digits

Overload indicator

OL = Overload
Rate of measurement Every 2 seconds
Operating temperature 0 ... 40 °C
Temperature characteristics 5-digit LCD display
Power 9 V battery
Dimensions 33 x 54 x 196 mm
Weight 180 g

measuring-instrument-for-lightness-pce-170a-sensor

The lightness meter PCE-170A with integrated sensor for fast and reliable light measurement.

measuring-instrument-for-lightness-pce-170a-display

The lightness meter PCE-170A comes with a 5-digit LCD display

Delivery content
1 x PCE-170A Lux Meter,
1 x light sensor,
1 x 9 V battery,
1 x carrying case,
1 x user manual.

measuring-instrument-for-lightness-pce-170a-delivery-content

Optional accessories
- ISO laboratory calibration with certificate
An ISO certification consists of a laboratory calibration and a certificate according to the ISO standard. The document shows the name of the company or customer It can be ordered with the device or as an annual recalibration.

PCE-170 lux meter with built-in sensor: ISO laboratory calibration.
